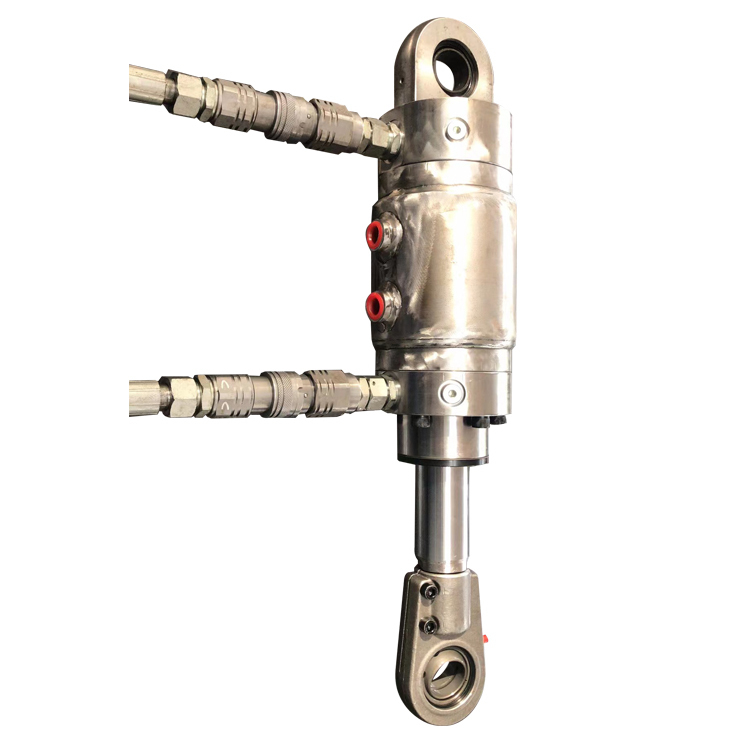

Stainless Steel Hydraulic Cylinder 80-56-90 Water-Cooled Heavy-Duty

Place of Origin:China
Brand Name:Guoyue
Certification:CE
Model Number:customized
Minimum Order Quantity:1 piece
Payment Terms:T/T
Supply Ability:2500 Ton/Tons Per Year
Product Details
Highlight:

Stainless Steel Hydraulic Cylinder

,

Water-Cooled Hydraulic Cylinder

,

Heavy-Duty Hydraulic Cylinder
Product Name: Hydraulic Cylinder
Pressure: Customized
Weight: 27
Power: 10MPa
Dimension(L*W*H): 500*140*140mm
Rod Diameter: 56mm
Maximum Stroke: 90mm
Outer Tube Diameter: 100mm
Inner Tube Diameter: 80mm
Material: Stainless Steel
Working Medium: Hydraulic Oil
Technique: Forging&Casting
Minimum Oeder Quantity: 1PCS
Certifications: CE
Piston Seal: Urethane Seal
Seals: Chinese
Usage: Metallurgical Industry Machinery
Ship Cost: Not Include
Product Description
OEM Manufacturer Hydraulic Cylinder 80-56-90 with Water-Cooled Circulation
Product Specifications
Attribute Value
Product Name Hydraulic Cylinder
Pressure 1MPa
Power 10MPa
Dimensions (L*W*H) 500*140*140mm
Rod Diameter 56mm
Maximum Stroke 90mm
Outer Tube Diameter 100mm
Inner Tube Diameter 80mm
Material Stainless Steel
Weight 27kg
Structure V-Type
Usage Machinery
Warranty 1 Year
Product Features
  • Water-cooled circulating system for temperature control in heavy-duty applications
  • Synchronized control for precise movement coordination
  • Tube follows GUOYUE CD250 style with material options: 45#, 42CrMo, or 27SiMn
  • Precision ground holes (H8) with surface roughness Ra under 0.4μm
  • High-quality 45# steel components (head, base, ears, piston)
  • Adjustable slow-down system with fixed or floating bumpers
  • Ultrasound-tested welds for stress reduction and durability
  • Premium international seals (, Trelleborg, Merkel, GP)
  • Rigorous testing to GB/T15622-2005 and Q/GAKY014-2023 standards
  • 1-year warranty against manufacturing defects
Applications

Ideal for heavy-duty industrial applications including:

  • Steel mills and metal processing
  • Floodgate and water control systems
  • Mining equipment
  • Construction machinery
  • Hydraulic power systems requiring synchronized movement
Product Gallery
Stainless Steel Hydraulic Cylinder 80-56-90 Water-Cooled Heavy-Duty 0 Stainless Steel Hydraulic Cylinder 80-56-90 Water-Cooled Heavy-Duty 1 Stainless Steel Hydraulic Cylinder 80-56-90 Water-Cooled Heavy-Duty 2 Stainless Steel Hydraulic Cylinder 80-56-90 Water-Cooled Heavy-Duty 3 Stainless Steel Hydraulic Cylinder 80-56-90 Water-Cooled Heavy-Duty 4 Stainless Steel Hydraulic Cylinder 80-56-90 Water-Cooled Heavy-Duty 5 Stainless Steel Hydraulic Cylinder 80-56-90 Water-Cooled Heavy-Duty 6
Manufacturer Information

Brand Name: Guoyue

Location: Jiangsu, China

Established: 2022

Employees: 51-100

Markets Served: Domestic, Africa, North America, South America, Southeast Asia, Western Europe, and more

Quality Assurance
  • Pre-production samples provided
  • Final inspection before shipment
Product Range

Hydraulic cylinders including single-acting, double-acting, and construction machinery hydraulic cylinders

Services
  • Delivery Terms: FOB
  • Payment: T/T (USD, EUR)
  • Languages: English, Chinese
