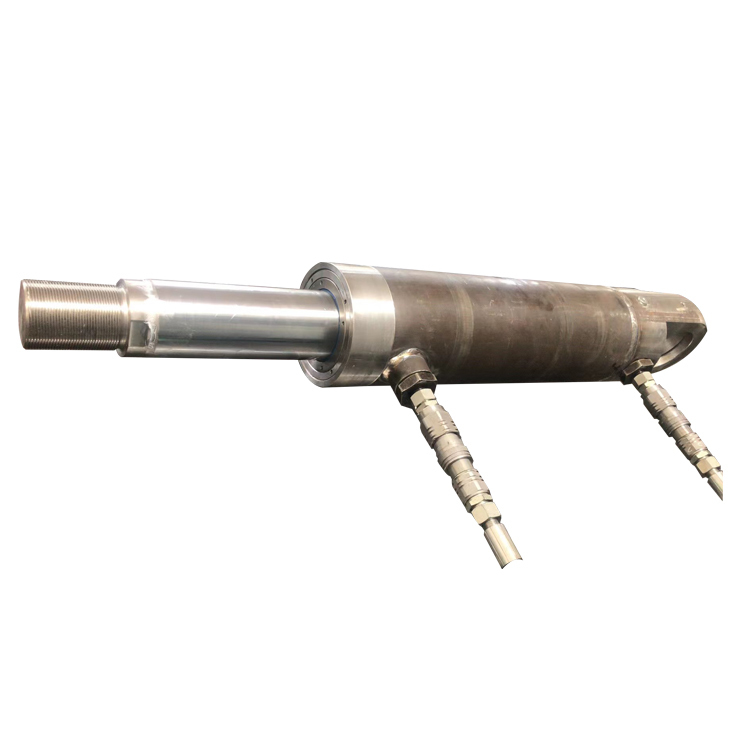

150mm Hydraulic Cylinder 100-380mm Stroke 16MPa Power
150mm hydraulic cylinder 16MPa power
,hydraulic cylinder 100-380mm stroke
,16MPa hydraulic cylinder with warranty
| Attribute | Value |
|---|---|
| Product name | Hydraulic Cylinder |
| Pressure | 1MPa |
| Weight | 180kg |
| Power | 16MPa |
| Dimension (L×W×H) | 450×180×150mm |
| Rod Diameter | 100mm |
| Maximum Stroke | 380mm |
| Outer Tube Diameter | 168mm |
| Inner Tube Diameter | 150mm |
| Usage | Machinery |
These high-performance hydraulic cylinders are designed for both front and rear operations with a stroke range of 100-380mm, offering reliable power for demanding industrial applications.
- Tube follows GUOYUE CD250 style with material options: 45#, 42CrMo, or 27SiMn steel
- Precision ground holes to H8 tolerance with surface roughness Ra under 0.4μm
- Premium components made from 45# steel (no cast iron or cast steel)
- Optional fixed or floating bumpers for controlled deceleration
- Ultrasound-tested welds for enhanced durability under heavy loads
- High-quality international seals (NOK, Trelleborg, Merkel, GP)
- Rigorous testing to GB/T15622-2005 and Q/GAKY014-2023 standards
- 1-year warranty against manufacturing defects
These hydraulic cylinders provide exceptional power and precision for heavy-duty operations. Their robust construction ensures reliable performance in tough conditions, while the versatile stroke range accommodates both front and rear applications. Easy installation and maintenance make them ideal for demanding industrial environments.
Ideal for construction sites, workshops, and industrial settings where powerful lifting, pushing, or pulling operations are required. Perfect for:
- Construction machinery and equipment
- Material handling and loading operations
- Equipment stabilization and positioning
- Heavy industrial maintenance tasks
| Application | Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agriculture |
| Seal | Parker, Merkel, NOK, Hallite |
| Material | St52, CK45, 4140, Duplex2205, Stainless Steel 304/316 |
| Certificate | ABS, Lloyds, SGS |
| Package | Bubble-wrap packing in wooden case |
| Structure | Piston Type, Plunger Type, Telescopic Type |
| Power | Hydraulic & Pneumatic |
| Brand | Guoyue |
Location: Jiangsu, China (established 2022)
Markets: Domestic (40%), Africa (10%), North America (10%), South America (8%), Southeast Asia (6%), Western Europe (5%)
Employees: 51-100
- Pre-production samples provided before mass production
- Final inspection before shipment
Hydraulic cylinders, single-acting hydraulic cylinders, double-acting hydraulic cylinders, construction machinery hydraulic cylinders
Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co., Ltd. is a technology-driven enterprise with 50 million yuan registered capital, specializing in research, design, development, production, and service of hydraulic solutions.
Delivery Terms: FOB
Payment: T/T (USD, EUR accepted)
Languages: English, Chinese
