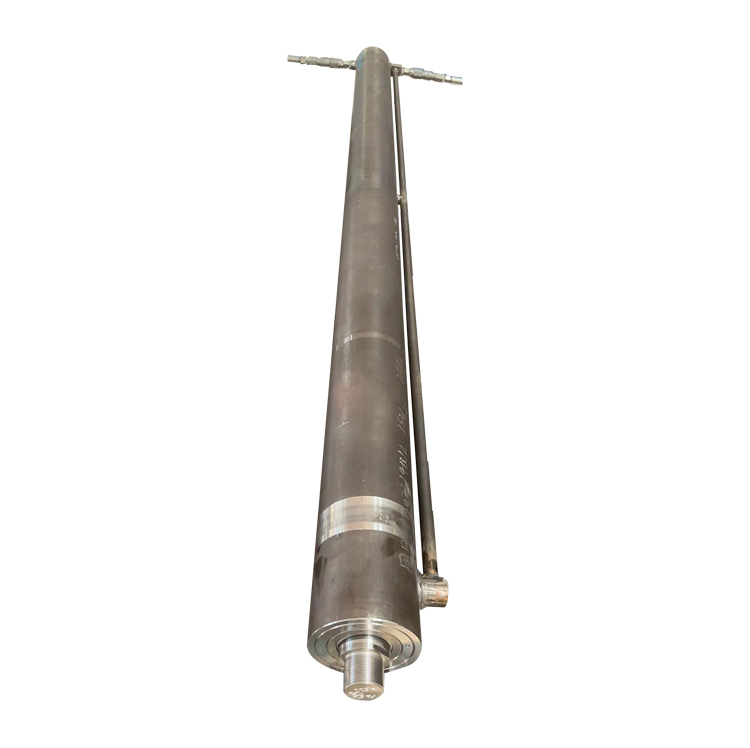

Custom 125 70-2500 Hydraulic Cylinder Maximum Stroke 2500mm for Engineering Applications

Name: Custom 125 70-2500 Hydraulic Cylinder Maximum Stroke 2500mm for Engineering Applications
Brand: Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd
SKU: customized
Price: 5,000.00 USD
Availability: InStock

Place of Origin:China

Brand Name:Guoyue

Certification:CE

Model Number:customized

Minimum Order Quantity:1 piece

Price:USD1,000-10000/pieces

Payment Terms:T/T

Supply Ability:2500 Ton/Tons Per Year

Product Details

Highlight:

custom hydraulic cylinder

,

custom hydraulic cylinders for construction

,

2500mm hydraulic cylinder

Warranty: 1 Year

Showroom Location: Not Have

Pressure: 1MPa

Structure: Y

Weight: 100

Power: 25MPa

Dimension(L*W*H): 2800*300*150mm

Rod Diameter: 70mm

Maximum Stroke: 2500mm

Outer Tube Diameter: 152mm

Inner Tube Diameter: 125mm

Product Name: Hydraulic Cylinder

Material: Stainless Steel

Usage: Machinery

Pressure: Customized

Working Medium: Hydraulic Oil

Technique: Forging&Casting

Minimum Oeder Quantity: 1PCS

Certifications: CE

Piston Seal: Urethane Seal

Seals: Chinese

Usage: Metallurgical Industry Machinery

Ship Cost: Not Include

Product Description

Custom 125 70-2500 Hydraulic Cylinder with 2500mm Maximum Stroke

Product Specifications

Warranty	1 Year
Pressure	1MPa
Weight	100kg
Power	25MPa
Dimensions (L×W×H)	2800×300×150mm
Rod Diameter	70mm
Maximum Stroke	2500mm
Outer Tube Diameter	152mm
Inner Tube Diameter	125mm
Material	Stainless Steel
Usage	Machinery

Premium Quality Hydraulic Cylinder Features

Internals: Cylinder barrel meets GUOYUE EU/US metallurgical standard CD250 structure with 45#, 42CrMo, or 27SiMn materials. Bore honed to H8 precision (Ra<0.4μm). All components made of 45# steel.
Buffering: Multiple buffering options including fixed and floating buffer structures for effective deceleration.
Welding: 100% ultrasonic impact treatment on all critical welds (stress removal ≥90%) for enhanced fatigue strength.
Sealing: Premium imported seals from NOK, Trelleborg, Merkel, and GP.
Testing: Complies with GB/T15622-2005 and Q/GAKY014-2023 standards with factory test reports provided.
Warranty: One-year warranty covering defects from design or manufacturing.

Application & Specifications

Applications

Engineering machinery, mining, shipping, metallurgy, water conservancy, offshore, agriculture

Seal Options

Parker, Merkel, NOK, Hallite

Paint Colors

Red, Grey, Yellow, Black (customizable)

Materials

St52, CK45, 4140, Duplex2205, Stainless Steel 304/316

Certifications

ABS, Lloyds, SGS

Packaging

Bubble-wrap with wooden case

Structure Types

Piston Type, Plunger Type, Telescopic Type

Power Source

Hydraulic & Pneumatic

About Guoyue Hydraulic

Based in Jiangsu, China since 2022, we serve global markets including North America, Europe, Africa, and Asia with a team of 51-100 professionals.

Quality Assurance

Pre-production samples for approval
Final inspection before shipment

Product Range

Hydraulic cylinders including single-acting, double-acting, and construction machinery models.

Why Choose Us

Guoyue Hydraulic Equipment Manufacturing is a technology enterprise with 50 million yuan registered capital, specializing in research, design, and production of hydraulic solutions.

Services

Delivery Terms: FOB
Payment: USD/EUR via T/T
Languages: English, Chinese
