Heavy Duty Hydraulic Cylinder 150mm Bore 100-380mm Stroke

Place of Origin:China
Brand Name:Guoyue
Certification:CE
Model Number:customized
Minimum Order Quantity:1 piece
Price:USD1,000-10000/pieces
Payment Terms:T/T
Supply Ability:2500 Ton/Tons Per Year
Product Details
Highlight:

heavy duty hydraulic cylinder 150mm bore

,

hydraulic cylinder 100-380mm stroke

,

150mm bore hydraulic cylinder with warranty
Product Name: Hydraulic Cylinder
Weight: 180
Power: 16MPa
Dimension(L*W*H): 450*180*150mm
Rod Diameter: 100mm
Maximum Stroke: 380mm
Outer Tube Diameter: 168mm
Inner Tube Diameter: 150mm
Usage: Machinery
Material: Customizable
Pressure: Customized
Working Medium: Hydraulic Oil
Technique: Forging&Casting
Minimum Oeder Quantity: 1PCS
Certifications: CE
Piston Seal: Urethane Seal
Seals: Chinese
Usage: Metallurgical Industry Machinery
Ship Cost: Not Include
Product Description
OEM 150 100-380 Hydraulic Cylinders for Metallurgical Equipment
Product Specifications
Attribute Value
Product Name Hydraulic Cylinder
Weight 180kg
Power 16MPa
Dimension (L×W×H) 450×180×150mm
Rod Diameter 100mm
Maximum Stroke 380mm
Outer Tube Diameter 168mm
Inner Tube Diameter 150mm
Usage Machinery
Material Customizable
Product Description
Our heavy-duty hydraulic cylinders are engineered for metallurgical equipment, built to withstand extreme conditions while delivering reliable performance.
Key Features
  • Premium Materials: Tube follows GUOYUE CD250 style with options for 45#, 42CrMo, or 27SiMn steel
  • Precision Engineering: Holes ground to H8 with surface roughness Ra under 0.4μm
  • Durable Construction: Components made from 45# steel (no cast iron or cast steel)
  • Safety Features: Optional fixed or floating bumpers for controlled deceleration
  • Quality Welds: Ultrasound tested for stress relief and extended service life
  • Premium Seals: International brands including NOK (Japan), Trelleborg (Sweden), Merkel and GP (Germany)
  • Rigorous Testing: Each cylinder tested to GB/T15622-2005 and Q/GAKY014-2023 standards
  • Warranty: 1-year coverage from shipment date
Technical Advantages
This heavy-duty hydraulic cylinder is engineered for metallurgical applications, featuring robust construction with thick steel components and hardened rods. The precision sealing system prevents oil leaks while the multi-stage telescopic design provides extended reach while maintaining a compact footprint.
Applications
Ideal for demanding environments including steel mills, foundries, and metal processing plants. Perfect for:
  • Heavy-duty presses and forging equipment
  • Steel beam handling and positioning
  • Molten metal handling systems
  • Rolling mill operations
  • Large mold manipulation
Additional Specifications
Application Engineering machinery, mining, shipping, metallurgy, water conservancy, offshore, agriculture
Seal Options Parker, Merkel, NOK, Hallite
Paint Colors Red, Grey, Yellow, Black (customizable)
Material Options St52, CK45, 4140, Duplex2205, Stainless Steel 304/316
Certifications ABS, Lloyds, SGS
Packaging Bubble-wrap with wooden case
Structure Types Piston Type, Plunger Type, Telescopic Type
Power Source Hydraulic & Pneumatic
Standardization Nonstandard (custom designs available)
Product Images

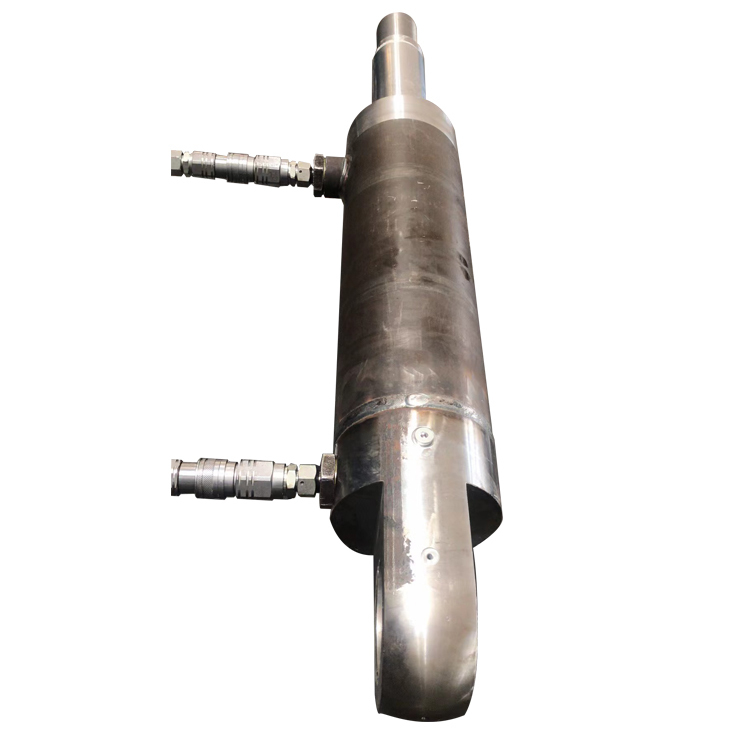

Heavy Duty Hydraulic Cylinder 150mm Bore 100-380mm Stroke 0 Heavy Duty Hydraulic Cylinder 150mm Bore 100-380mm Stroke 1 Heavy Duty Hydraulic Cylinder 150mm Bore 100-380mm Stroke 2 Heavy Duty Hydraulic Cylinder 150mm Bore 100-380mm Stroke 3
Company Information
Based in Jiangsu, China with operations since 2022, we serve global markets including North America, Europe, Africa, and Asia. Our 51-100 person team specializes in hydraulic cylinder manufacturing with a focus on quality and innovation.
Quality Assurance
  • Pre-production samples provided for approval
  • Final inspection before shipment
  • Comprehensive testing to international standards
Why Choose Us
Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co., Ltd. is a technology-driven enterprise with 50 million yuan registered capital, specializing in research, design, development, and production of hydraulic solutions.
Services
Delivery Terms: FOB
Payment Options: T/T (USD, EUR)
Languages: English, Chinese
