Custom Hydraulic Cylinder for Mining Drilling 16MPa Double Acting

Place of Origin:China
Brand Name:Guoyue
Certification:CE
Model Number:customized
Minimum Order Quantity:1 piece
Payment Terms:T/T
Supply Ability:2500 Ton/Tons Per Year
Product Details
Highlight:

Custom hydraulic cylinder for mining

,

Double acting hydraulic cylinder 16MPa

,

Mining drilling hydraulic cylinder
Product Name: Hydraulic Cylinder
Power: 16MPa
Dimension(L*W*H): 1030*255*180mm
Rod Diameter: 70mm
Maximum Stroke: 700mm
Outer Tube Diameter: 127
Inner Tube Diameter: 100mm
Overall Length: 200mm
Type: Double Acting Cylinder
Material: Steel, Customized
Pressure: Customized
Working Medium: Hydraulic Oil
Technique: Forging&Casting
Minimum Oeder Quantity: 1PCS
Certifications: CE
Piston Seal: Urethane Seal
Seals: Chinese
Usage: Metallurgical Industry Machinery
Ship Cost: Not Include
Product Description

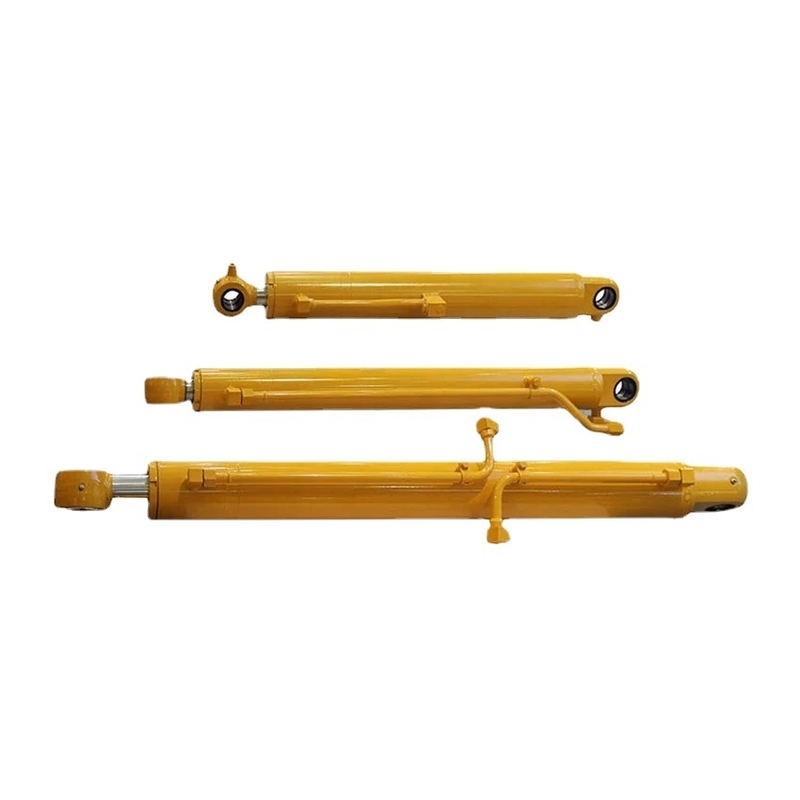

Customized Mining Drilling Vehicle Propulsion Cylinder
Product Specifications
Attribute Value
Product Name Hydraulic Cylinder
Power 16MPa
Dimensions (L×W×H) 1030×255×180mm
Rod Diameter 70mm
Maximum Stroke 700mm
Outer Tube Diameter 127mm
Inner Tube Diameter 100mm
Overall Length 200mm
Type Double Acting Cylinder
Material Steel, Customized
Product Description

This customized mining drilling vehicle propulsion cylinder features a built-in seal groove design for enhanced durability in demanding mining applications.

Key Features:
  • Tube follows GUOYUE CD250 style with material options: 45#, 42CrMo, or 27SiMn steel
  • Precision ground holes (H8) with surface roughness Ra under 0.4 μm
  • Components made from 45# steel (no cast iron or cast steel)
  • Optional fixed or floating bumpers for controlled deceleration
  • Ultrasound-tested welds for stress reduction and longevity
  • Premium international seals (Trelleborg, Merkel, GP)
  • Tested to GB/T15622-2005 and Q/GAKY014-2023 standards
  • 1-year warranty against manufacturing defects
Technical Advantages

This heavy-duty hydraulic cylinder is engineered for reliability in extreme conditions. The robust construction uses thick steel and hardened rods to resist bending, while the precision seal system prevents oil leaks. The multi-stage telescopic design provides extended reach while maintaining a compact footprint.

Applications

Ideal for various industrial applications including:

  • Mining equipment and drilling vehicles
  • Engineering machinery
  • Metallurgical operations
  • Water conservancy projects
  • Marine and offshore equipment
  • Agricultural machinery
Additional Specifications
Seal Options Parker, Merkel, Hallite
Paint Colors Red, Grey, Yellow, Black (customizable)
Material Options St52, CK45, 4140, Duplex2205, Stainless Steel 304/316
Certifications ABS, Lloyds, SGS
Packaging Bubble-wrap with wooden case
Structure Piston Type, Plunger Type, Telescopic Type
Power Source Hydraulic & Pneumatic
Brand Guoyue
Product Images
Custom Hydraulic Cylinder for Mining Drilling 16MPa Double Acting 0 Custom Hydraulic Cylinder for Mining Drilling 16MPa Double Acting 1 Custom Hydraulic Cylinder for Mining Drilling 16MPa Double Acting 2 Custom Hydraulic Cylinder for Mining Drilling 16MPa Double Acting 3 Custom Hydraulic Cylinder for Mining Drilling 16MPa Double Acting 4 Custom Hydraulic Cylinder for Mining Drilling 16MPa Double Acting 5
Company Information

We are Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co., Ltd., a technology enterprise specializing in hydraulic cylinder research, design, and production since 2022. Our 50 million yuan registered capital facility employs 51-100 professionals serving global markets.

Quality Assurance:
  • Pre-production samples for approval
  • Final inspection before shipment
  • Comprehensive testing to international standards
Services
  • Delivery Terms: FOB
  • Payment: USD/EUR via T/T
  • Languages: English, Chinese
  • Custom solutions available
