6000mm Stroke Truck Hydraulic Cylinder Automobile Tail Plate Lifting
-
High Light
forklift hydraulic lift cylinder
,pneumatic lift cylinder
-
Body MaterialSteel
-
PowerHydraulic
-
StructureGeneral Cylinder,hydraulic Cylinder,Plunger Cylinder
-
Standard Or NonstandardNonstandard
-
Shaft Diameter500mm Max
-
Maximum Stroke6000mm
-
Product NameHydraulic Cylinder Double Acting,Forklift Lift Cylinder,Forklift Steering Ram Double Rod End Hydraulic Cylinder,Customized Forklift Lifting Hydraulic Oil Cylinder For 13.5T&15T,Telescopic Hydraulic Cylinder
-
ColorClient's Request,Customized,can Be Customized,according To Customer Requirement,Light Blue Color
-
Working Pressure10-50 MPa
-
SealsHallite,Parker,chinese,Merkel,CF
-
MaterialCold Drawing Steel Pipe,20#/45# Steel
-
ApplicationAgricultural,Construction And So On,Excavator,3T/3.5T Forklift,Truck
-
NameForklift Truck Hydraulic Cylinder,Push Pull Double Acting Tie Rod Welded Piston Hydraulic Cylinder
-
Warranty1 Year
-
TypePiston Cylinder,Hydraulic Telescopic Parts,Double Action,Hydraulic Cylinder
-
PackingWooden Box,Metal Case,Pallet
-
Length150mm-1200mm
-
Place of OriginJiangsu,China
-
Brand NameJSRUIYA
-
CertificationISO 9000:2016
-
Minimum Order Quantity1PCS
-
PriceNegotiation
-
Packaging DetailsWooden box, iron box
-
Delivery Time15-45 Days
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability30,000 Pieces/Year
6000mm Stroke Truck Hydraulic Cylinder Automobile Tail Plate Lifting
Automobile Tail Plate Lift Hydraulic Cylinders
The hydraulic cylinder is used for lifting the tail plate, and the tail plate hydraulic cylinder is used for retracting or putting down the tail plate. The lift guide rails are of a hollow cylinder shape and symmetrically arranged at the rear end of the compartment, and the hydraulic cylinder is fixed to the bottom portions of the lift guide rails.The upper portion of the hydraulic cylinder connecting piece is fixedly connected with a piston rod of the hydraulic cylinder and is in sliding fit with the lift guide rails.

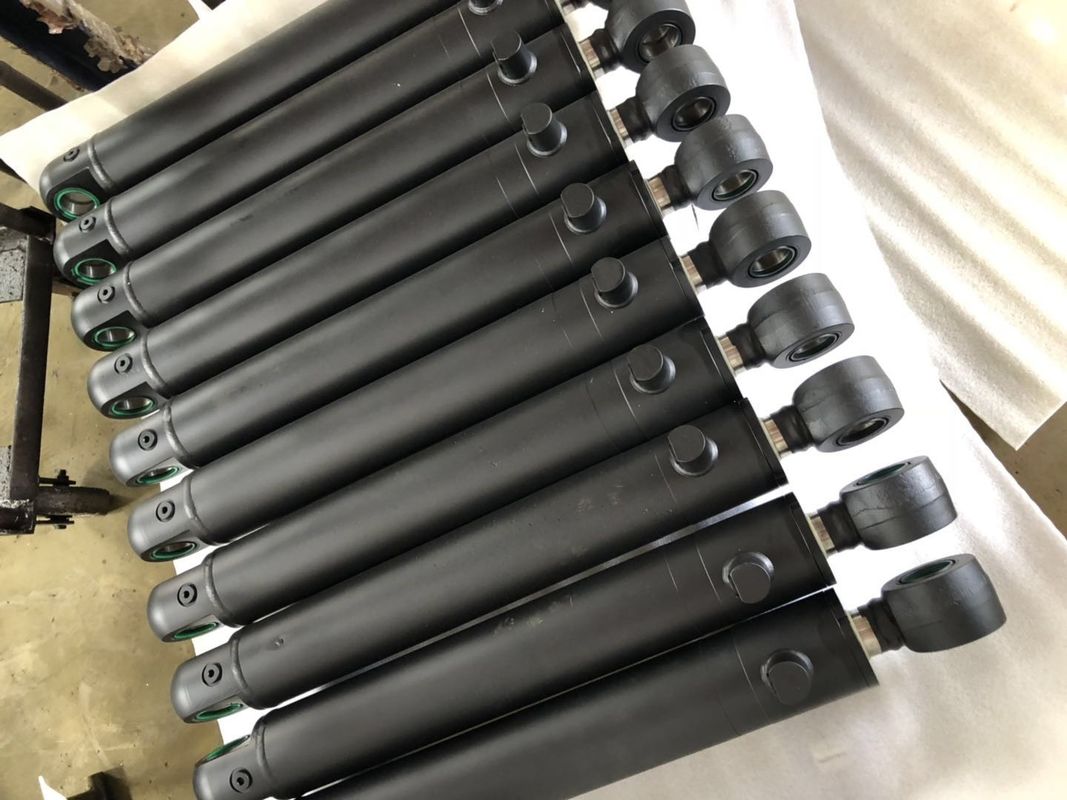

Telescopic single acting tail lifts hydraulic cylinder
Automobile tail plate hydraulic cylinder
Products details:
| Features | hydraulic cylinder |
| Bore Diameter | 2'-50'/50-1500mm |
| Rod Diameter | 1' - 60'/25 -1000 mm |
| Wall Thickness | 0.1'-4'/3-100 mm |
| Max Stroke | 366'/9280 mm |
| Max Pressure | 9600 psi/600 bar |
| Test Pressure | 14500 psi/1000 bar |
| Material | 20#,40#,45#,16Mn,27SiMn etc. |
| Seal Kits | Hallite, Parker, NOK, SKF, DICHTOMATIK, Trelleborg, Merkel |
| Dimensional Accuracy | H7-H11 |
| Bore Roughness | Ra 0.4-1.6mm |
| Coating | hard chrome |
| Purpose | engineering, Coal &mining, agricultural machinery, environmental sanitation |
| OEM/ODM | Yes |
| MOQ | 10 Pieces |
| Certificates | ISO9001 |
Automobile tail plate hydraulic cylinder:
| 1. Cylinder Tube |
| (1) Material: Standard using ASTM 1020(steel 20), ASTM 1035(steel 35), ASTM 1040(steel 40) with Ra0.4 after honing and rolling. |
| (2) Tube choosing: standard is cold drawn seamless steel tube, if need hot rolling seamless steel tube, please inform us before quotation. |
| (3) Advice: Low pressure can use steel 20, high pressure can use steel 45. If customers have other special material request, can talk with us before quotation. |
| 2. Piston Rod |
| (1) Material: Standard using ASTM 1035(steel 35) and ASTM 1045(steel 45). |
| (2) Piston Rod choosing: Solid piston rod and hollow piston rod (one of hollow piston rod end needs an air vent for welding and heating) |
| (3). Process: Quenching and tempering to reach hardness 229-285HB after roughing machining, if necessary, we also can reach hardness 45-55HRC after high frequency quenching. Standard chrome plated thickness is 25m(if need more thickness, please inform us before quotation). |
| 3. Piston |
| (1) Material: Standard material is wear-resisting cast iron, gray iron(HT300, HT350), steel and aluminum alloy, forging group II. |
| (2) The concentricity tolerance between piston and piston rod is 0.03mm. |
| 4. Cylinder Cover |
| (1) Material: Cast iron for low pressure, gray iron HT300 for middle-low pressure. ASTM 1035(steel 35), ASTM 1045(steel 45) for middle-high pressure. |
| (2) Cylinder Cover choosing: It is better to use cast iron when cylinder cover also same function as guide sleeve, and melt brass, bronze or other wear-resisting material on the guide surface. If using the construct of pressing guide sleeve into cylinder cover, then the guide sleeve material should use wear-resisting cast iron, brass or bronze. |
| 5. Seals |
| (1)Seals choosing: Good seal performance, low friction coefficient and small installation space of O-ring type Seals for low pressure, standard use our domestic brand. Middle-high pressure seals, we will use Y type, U type or V combined seals. |
Tail board cylinder for automobile and engineering
Manufacture high quality automobile tail plate hydraulic cylinder

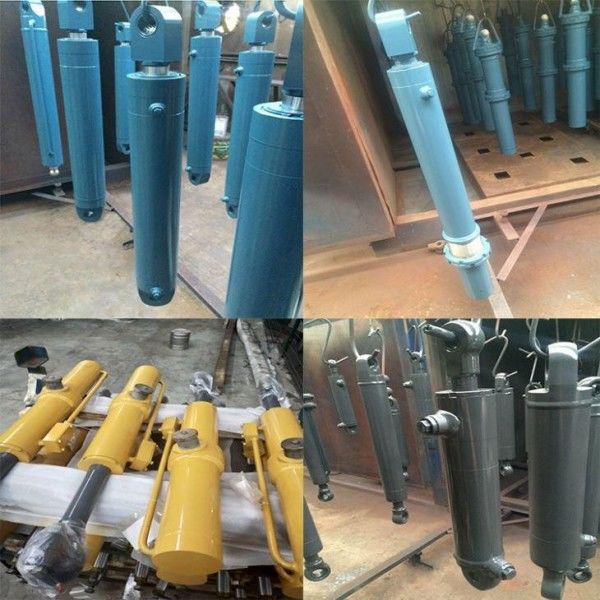

Hydraulic Cylinder Series Available:
| Engineering Oil Cylinder Series; |
| Metallurgy Oil Cylinder Series; |
| Turn Over Plow Oil Cylinder Series; |
| Reaper Oil Cylinder Series; |
| Excavator Oil Cylinder Series; |
| Quality Gurantee And Service； |
| One Year Quality Gurantee; |
| Complete After-Sale Services; |
We Can Offered The Nonstandard Cylinders.If You Need OEM Service,Please Give Us The Specification Or The Drawing Of The Cylinder In Order To Give You The Best Service&Price.(Cylinder Diameter,Pressure,Stroke,Application,Installation Method,Mounting Distance Etc).
JSRUIYA Hydraulic Machinery Promise:
| 1. 100% Quality Assurance, Develop And Manufacture Follow Original Ones; |
| 2. Reasonable Stock And Timely Delivery; |
| 3. Quick Response Within 24 Hours ; |
| 4. Long-Term Strong And Steady Supplying Ability; |
| 5. One-To-One Products Factory.Ensure The Best Quality; |
| 6. The First-Class Logistics & Ensure That Your Goods Arrived Safely; |
| 7. Goods Will Be Packed Safe & Carefully; |
| 8. Excellent After-Sales Service.Track Usage.Positive Feedback Response; |
| 9. Establish Inquiry Library For You, We Are Your Professional Sourcing Consultant. |
JSRUIYA Hydraulic Machinery Have More Than One Decade Experience In Supplying Custom Hydraulic Cylinders With Provided Drawings Or Samples, Or If You Could Provide Following Specification:
| 1. Diameter Of Bore & Rod |
| 2. Stroke |
| 3. Mounting Style |
| 4. Mounting Distance |
| 5. Working Pressure |
| 6. Ports |
| 7. Seals |
| 8. Special Modifications |
Certainly, You Can Provide Drawing And Product Photos So That We Can Understand Your Meaning More Conveniently, Or You Can Also Send Us Sample And We Produce For You According To Your Sample.
Mounting Way:
| 1. Front And End Of Earring |
| 2. Head Fixed With Flange |
| 3. End Fixed With Flange |
| 4. Vertical To Axis Foot Type |
| 5. Middle Fixed With Pendulum Shift |
| 6 . End With Single Earring |
Quality Control:
| 1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection |
| 2. Process Inspection: First Inspection, Random Inspection, Handover Inspection |
| 3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test |
| 4. Type Inspection:Every Piece Of Hydraulic Cylinder Is Tested And Will Send Out Only After They Are Pasted Each Test. |
Package&Delivery
| 1. Each One Packed In Carton Case, Then Put Several Carton Case In The Wooden Case, Supported By The Tray. |
| 2. Depends On The Customers' Requirements. |
| 3. Shipped In 30 Days After 30% Deposit , The Rest Should Be Paid Before Delivery. |
Warranty And After-Sale Services:
| 1. We Provide The Replacement Parts For Free Due To Quality Problems Under Proper Operation Within Warranty Period. |
| 2. After Warranty Period, We Will Charge The Replacement Parts At Cost Price. |
| 3. Consultant Services For Whole Machine Life, And 24 Hours Technical Support By Email; |
Payment:
T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.
Application:
• Truck And Trailer •Automotive Lifts •Mining •Gas And Oil Industries •Forklifts
• Scissor Lifts •Tractors •Farm Implements •Harvesters •Hay Balers
• Ladder Trucks •Dump Trailers •Lift Gates •Wheel Loaders •Excavators
• Bulldozers •Garbage Trucks •Compactors •Hoist Trucks •Cranes
• Snow Equipment •Wood Splitter
FAQ
1. Are You Manufacturer Or A Trading Company?
We Are The Manufacturer, And Have Been In This Industry For Nearly Ten Years.
2. What's Your Payment Way?
T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.
3. How Can You Ensure The Unit’s Quality After We Put The Order?
Before The Delivery, We Will Send You Machine’s Pictures And Videos, Or You Can Come To Us To Have The Quality Checking By Yourself, Or By The Third Party Inspection Organization Contacted By Your Side.
4. We Are Afraid You Won't Deliver Us The Machine After We Pay You The Money.
Please Note Our Above Business License And Certificates. And If You Don't Trust Us, You Can Use Alibaba’s Trade Assurance Service .
5. Why Choose Your Company?
We Have Been Engaged In The Manufacturing Of Various Hydraulic Power Unit Professionally Nearly 10 Years With Hundreds Of Oil Circuits, Which Can Meet The Needs Of Different Requests.
