3000Psi Long Stroke Hydraulic Cylinder / 2500 - 8000PSI Working Pressure
-
High Light
industrial hydraulic cylinders
,short stroke hydraulic cylinder
-
Bore40-200mm
-
Rod18-200mm
-
Stroke10-15000mm
-
Working Pressure2500-8000PSI
-
Piston SpeedMaximum 1m/s
-
Temperature Range-40℃ To +300℃
-
TypesSingle Acting、Double Acting、Telescopic 、Tie Rod And Sensor&positioning Hydraulic Cylinder
-
PowerHydraulic
-
StructurePiston Cylinder,General Cylinder,Rotary Cylinder,Plunger Cylinder
-
Shaft Diameter12mm-500mm
-
Working Pressure3000Psi
-
Product NameMicro Small Long Stroke Double Acting Hydraulic Cylinder Price
-
ColorCan Be Customized
-
Warranty1 Year
-
ApplicationExcavator,Industry,Engineering Machinery,Agricultural
-
SealsHallite,Parker,Merkel,Aston Or Domestic Seals
-
UsageLift,double Acting Hydraulic Cylinder
-
MaterialAluminium,High Strength Alloy Plate,20#/45# Steel
-
Weight1.5-59.9kg
-
Place of OriginJiangsu,China
-
Brand NameJSRUIYA
-
CertificationISO 9000:2016
-
Model NumberLong stroke hydraulic cylinders
-
Minimum Order Quantity1PCS
-
PriceNegotiation
-
Packaging DetailsWooden box, iron box
-
Delivery Time15-45 Days
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability30,000 Pieces/Year
3000Psi Long Stroke Hydraulic Cylinder / 2500 - 8000PSI Working Pressure
Long stroke Small bore hydraulic cylinders
JSRUIYA Hydraulic Machinery has unique experience building cylinders with long strokes. The capacity to do work on a 40' long honed tube or chrome rod takes unusual machinery and experienced machinists. The skill to do final assembly of parts on such cylinders takes capable, professional craftsman. JSRUIYA has over 8 years of experience meeting customers’ requirements by manufacturing these type of cylinders.
JSRUIYA has built long stroke cylinders for many applications, including boom extension, motion compensation, and mast raising to ASME, ABS, DNV, USCG and API specifications. We have the knowledge & experience required to manufacture these complex long stroke telescopic cylinders.
Not only we could manufacture all kinds of hydraulic cylinders according to the drawing from our customers,but also we could make a design according to customer's requirements.
Before Purchase, Pls Contact Me , We Can Discuss The Cylinder Details .Long Long

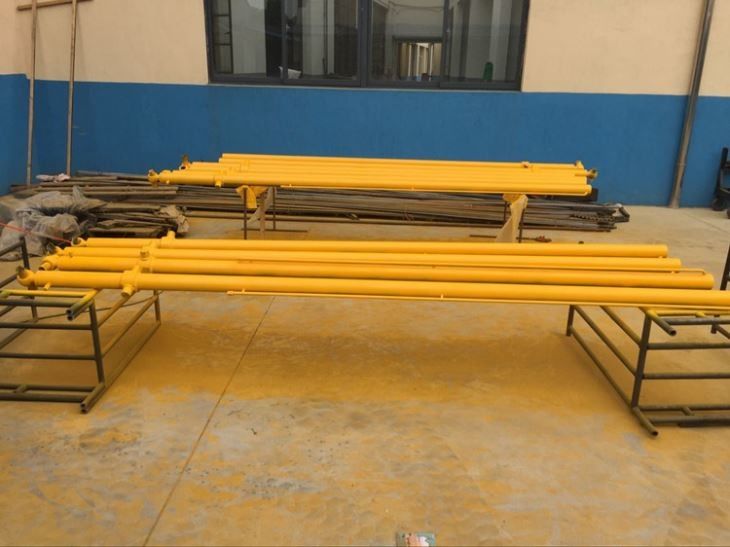

Long stroke Small bore Hydraulic Cylinders/Ram
Long stroke small bore hydraulic cylinder for Engineering Machinery
Welded Hydraulic Cylinder Specifications—Small Bore
| Bore Size: 1" to 4" |
| Stroke Length: 300" |
| Operating Pressure: up to 10000 |
| Available as Heavy Duty/Medium Duty/Light Duty |
Small Bore Welded Hydraulic Cylinder Styles
| Round Ring Retained Cylinder |
| Rod Fed Cylinder |
| Displacement / Ram Cylinder |
| Threaded Body Cylinder |
| Bolted head Cylinder |
| Single Acting/Double Acting Cylinder |
| Master/Slave Cylinder |
Small Bore Welded Hydraulic Cylinder Options and Features
| Application Specific Materials |
| Round body hydraulic cylinders; other body types as required by any application |
Application Specific Construction Options
| Actuator options |
| Hydraulic cushions |
| Piston seals/Low friction seals/Application Specific Seal Materials options |
| Integrated Valve options |
| Porting options |
| Electrical options |
| Position Sensing options |
| Re-phasing |
| Exterior finish including various coating and plating options |
Welded Cylinder Mount Options
| Clevis Mount |
| Cross Tube Mount |
| Flange Mount |
| Trunnion Mount |
| Adjustable Mount |
| Lug Mount |

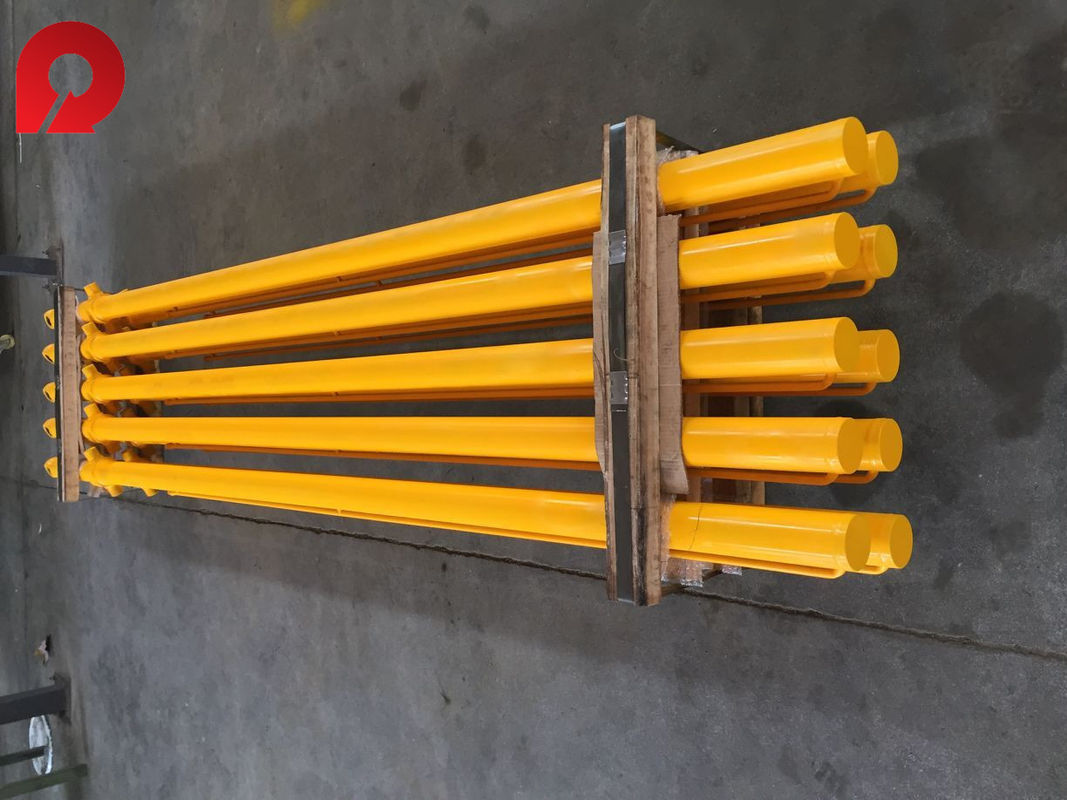

Small bore long stroke hydraulic cylinder manufacturer
Small bore long stroke manual hydraulic cylinder for lifting
Hydraulic Cylinder Series Available:
| Engineering Oil Cylinder Series; |
| Metallurgy Oil Cylinder Series; |
| Turn Over Plow Oil Cylinder Series; |
| Reaper Oil Cylinder Series; |
| Excavator Oil Cylinder Series; |
| Quality Gurantee And Service； |
| One Year Quality Gurantee; |
| Complete After-Sale Services; |
We Can Offered The Nonstandard Cylinders.If You Need OEM Service,Please Give Us The Specification Or The Drawing Of The Cylinder In Order To Give You The Best Service&Price.(Cylinder Diameter,Pressure,Stroke,Application,Installation Method,Mounting Distance Etc).
JSRUIYA Hydraulic Machinery Promise:
| 1.100% Quality Assurance, Develop And Manufacture Follow Original Ones; |
| 2. Reasonable Stock And Timely Delivery; |
| 3. Quick Response Within 24 Hours ; |
| 4. Long-Term Strong And Steady Supplying Ability; |
| 5. One-To-One Products Factory.Ensure The Best Quality; |
| 6. The First-Class Logistics & Ensure That Your Goods Arrived Safely; |
| 7. Goods Will Be Packed Safe & Carefully; |
| 8. Excellent After-Sales Service.Track Usage.Positive Feedback Response; |
| 9. Establish Inquiry Library For You, We Are Your Professional Sourcing Consultant. |
JSRUIYA Hydraulic Machinery Have More Than One Decade Experience In Supplying Custom Hydraulic Cylinders With Provided Drawings Or Samples, Or If You Could Provide Following Specification:
| 1. Diameter Of Bore & Rod |
| 2. Stroke |
| 3. Mounting Style |
| 4. Mounting Distance |
| 5. Working Pressure |
| 6. Ports |
| 7. Seals |
| 8. Special Modifications |
Certainly, You Can Provide Drawing And Product Photos So That We Can Understand Your Meaning More Conveniently, Or You Can Also Send Us Sample And We Produce For You According To Your Sample.
Mounting Way:
| 1. Front And End Of Earring |
| 2. Head Fixed With Flange |
| 3. End Fixed With Flange |
| 4. Vertical To Axis Foot Type |
| 5. Middle Fixed With Pendulum Shift |
| 6 . End With Single Earring |
Quality Control:
| 1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection |
| 2. Process Inspection: First Inspection, Random Inspection, Handover Inspection |
| 3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test |
| 4. Type Inspection:Every Piece Of Hydraulic Cylinder Is Tested And Will Send Out Only After They Are Pasted Each Test. |
Package&Delivery
| 1. Each One Packed In Carton Case, Then Put Several Carton Case In The Wooden Case, Supported By The Tray. |
| 2. Depends On The Customers' Requirements. |
| 3. Shipped In 30 Days After 30% Deposit , The Rest Should Be Paid Before Delivery. |
Warranty And After-Sale Services:
| 1. We Provide The Replacement Parts For Free Due To Quality Problems Under Proper Operation Within Warranty Period. |
| 2. After Warranty Period, We Will Charge The Replacement Parts At Cost Price. |
| 3. Consultant Services For Whole Machine Life, And 24 Hours Technical Support By Email; |
Payment:
T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.
Application:
• Truck And Trailer •Automotive Lifts •Mining •Gas And Oil Industries •Forklifts
• Scissor Lifts •Tractors •Farm Implements •Harvesters •Hay Balers
• Ladder Trucks •Dump Trailers •Lift Gates •Wheel Loaders •Excavators
• Bulldozers •Garbage Trucks •Compactors •Hoist Trucks •Cranes
• Snow Equipment •Wood Splitter
FAQ:
1. Are You Manufacturer Or A Trading Company?
We Are The Manufacturer, And Have Been In This Industry For Nearly Ten Years.
2. What's Your Payment Way?
T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.
3. How Can You Ensure The Unit’s Quality After We Put The Order?
Before The Delivery, We Will Send You Machine’s Pictures And Videos, Or You Can Come To Us To Have The Quality Checking By Yourself, Or By The Third Party Inspection Organization Contacted By Your Side.
4. We Are Afraid You Won't Deliver Us The Machine After We Pay You The Money.
Please Note Our Above Business License And Certificates. And If You Don't Trust Us, You Can Use Alibaba’s Trade Assurance Service .
5. Why Choose Your Company?
We Have Been Engaged In The Manufacturing Of Various Hydraulic Power Unit Professionally Nearly 10 Years With Hundreds Of Oil Circuits, Which Can Meet The Needs Of Different Requests.
Our services cover all industries and reach all parts of the world.
