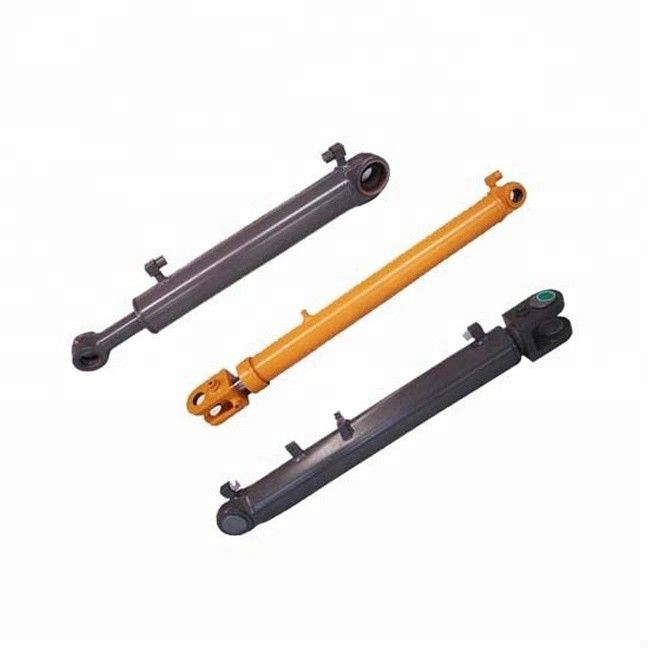

Custom Steel Hydraulic Cylinder 100mm Bore 860mm Stroke

Place of Origin:China
Brand Name:Guoyue
Certification:CE
Model Number:customized
Minimum Order Quantity:1 piece
Payment Terms:T/T
Supply Ability:2500 Ton/Tons Per Year
Product Details
Highlight:

custom steel hydraulic cylinder

,

100mm bore hydraulic cylinder

,

860mm stroke hydraulic cylinder
Product Name: Hydraulic Cylinder
Pressure: Customized
Weight: 120
Power: 25MPa
Dimension(L*W*H): 1375*170*170mm
Rod Diameter: 70mm
Maximum Stroke: 860mm
Outer Tube Diameter: 127mm
Inner Tube Diameter: 100mm
Material: Customized
Working Medium: Hydraulic Oil
Technique: Forging&Casting
Minimum Oeder Quantity: 1PCS
Certifications: CE
Piston Seal: Urethane Seal
Seals: Chinese
Usage: Metallurgical Industry Machinery
Ship Cost: Not Include
Product Description
OEM Steel Material Long Stroke Hydraulic Cylinder 100 70-860 High-temperature Hydraulic Cylinders
Product Specifications
Attribute Value
Product Name Hydraulic Cylinder
Pressure 1MPa
Weight 120kg
Power 25MPa
Dimension (L*W*H) 1375*170*170mm
Rod Diameter 70mm
Maximum Stroke 860mm
Outer Tube Diameter 127mm
Inner Tube Diameter 100mm
Material Customized
Product Description

This long-stroke hydraulic cylinder is engineered for demanding industrial applications, featuring durable steel construction capable of withstanding high-temperature environments.

Quality Assurance
  • Tube follows GUOYUE CD250 style with material options: 45#, 42CrMo, or 27SiMn
  • Precision ground holes to H8 with surface roughness Ra under 0.4 μm
  • 45# steel components for head, base, ears, and piston (no cast iron/steel)
  • Optional fixed or floating bumpers for controlled deceleration
  • Ultrasound-tested welds for stress reduction and longevity
  • Premium international seals (, Trelleborg, Merkel, GP)
  • Rigorous testing to GB/T15622-2005 and Q/GAKY014-2023 standards
  • 1-year warranty against manufacturing defects
Key Advantages

This robust hydraulic cylinder delivers exceptional performance in extreme conditions. Its 860mm stroke length provides extended reach for heavy-duty applications, while the high-temperature resistant construction ensures reliable operation in demanding environments.

Application Scenarios

Ideal for steel mills, foundries, and heavy industrial applications including:

Beam lifting Press operations Molten metal handling Heavy equipment maintenance
Additional Specifications
Applications:
Engineering machinery, mining, shipping, metallurgy, water conservancy, offshore, agriculture
Seal Options:
Parker, Merkel, , Hallite
Material Options:
St52, CK45, 4140, Duplex2205, Stainless Steel 304/316
Certifications:
ABS, Lloyds, SGS
Structure:
Piston Type, Plunger Type, Telescopic Type
Power:
Hydraulic & Pneumatic
Brand:
Guoyue
Product Images
Custom Steel Hydraulic Cylinder 100mm Bore 860mm Stroke 0 Custom Steel Hydraulic Cylinder 100mm Bore 860mm Stroke 1 Custom Steel Hydraulic Cylinder 100mm Bore 860mm Stroke 2 Custom Steel Hydraulic Cylinder 100mm Bore 860mm Stroke 3
Company Information
Who are we?

Based in Jiangsu, China since 2022, we serve global markets including North America, Europe, Asia, and Africa. Our team of 51-100 professionals ensures quality manufacturing and service.

How do we guarantee quality?

Pre-production samples for approval, final inspection before shipment, and strict adherence to international standards.

Why choose us?

Guoyue Hydraulic Equipment Manufacturing is a technology-driven enterprise with 50 million yuan registered capital, specializing in hydraulic cylinder research, design, and production.

Services we provide:

FOB delivery terms, USD/EUR payment options, T/T payment method, with support in English and Chinese.
