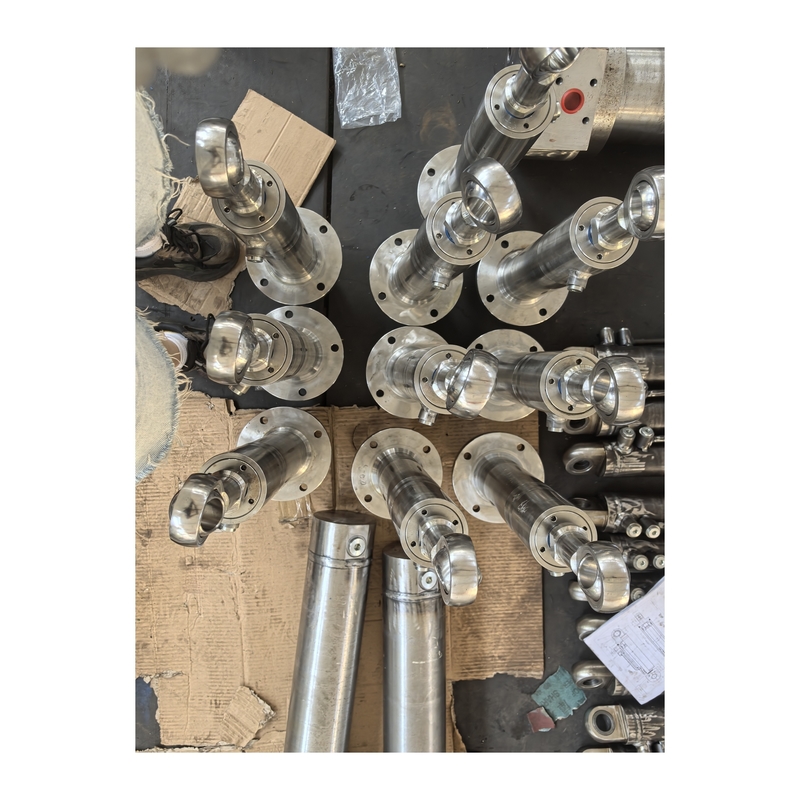

Double Acting Hydraulic Cylinder 140mm Bore 600mm Stroke

Place of Origin:China
Brand Name:Guoyue
Certification:CE
Model Number:customized
Minimum Order Quantity:1 piece
Price:USD1,000-10000/pieces
Payment Terms:T/T
Supply Ability:2500 Ton/Tons Per Year
Product Details
Highlight:

Double acting hydraulic cylinder 140mm bore

,

Hydraulic cylinder 600mm stroke

,

Heavy duty double acting cylinder
Product Name: Hydraulic Cylinder
Pressure: 1MPa
Weight: 175
Power: 30MPa
Dimension(L*W*H): 1100*230*270mm
Rod Diameter: 100mm
Maximum Stroke: 600mm
Outer Tube Diameter: 168mm
Inner Tube Diameter: 140mm
Material: Customized
Usage: Machinery
Pressure: Customized
Working Medium: Hydraulic Oil
Technique: Forging&Casting
Minimum Oeder Quantity: 1PCS
Certifications: CE
Piston Seal: Urethane Seal
Seals: Chinese
Usage: Metallurgical Industry Machinery
Ship Cost: Not Include
Product Description
Turbocharged 140 100-600 Double Acting Hydraulic Cylinder
Product Specifications
Attribute Value
Product name Hydraulic Cylinder
Pressure 1MPa
Weight 175kg
Power 30MPa
Dimension (L×W×H) 1100×230×270mm
Rod Diameter 100mm
Maximum Stroke 600mm
Outer Tube Diameter 168mm
Inner Tube Diameter 140mm
Material Customized
Usage Machinery
Product Features
  • Premium Construction: Tube follows GUOYUE CD250 style with 45#, 42CrMo, or 27SiMn steel options
  • Precision Engineering: Hole ground to H8 with surface roughness Ra under 0.4μm
  • Durable Components: Head, base, ears, and piston made from 45# steel (no cast iron/steel)
  • Safety Features: Optional fixed or floating bumpers for controlled deceleration
  • Quality Welds: Ultrasound-tested heavy-load welds for reduced stress and extended lifespan
  • Premium Seals: NOK (Japan), Trelleborg (Sweden), Merkel and GP (Germany) seals only
  • Rigorous Testing: Each cylinder tested to GB/T15622-2005 and Q/GAKY014-2023 standards
  • Reliability Guarantee: 1-year warranty from shipment date
Key Advantages

This turbocharged double-acting hydraulic cylinder delivers exceptional power for heavy-duty applications. Its robust construction ensures reliable performance in demanding conditions, with the turbocharged feature providing additional power when needed. The double-acting design offers versatile operation for both pushing and pulling applications.

Application Scenarios

Ideal for construction sites, manufacturing plants, and heavy equipment operations. Perfect for lifting heavy beams, operating cranes, powering excavators, and other applications requiring precise control and substantial force.

Additional Specifications
Application Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agriculture
Seal Options Parker, Merkel, NOK, Hallite
Paint Colors Red, Grey, Yellow, Black (customizable)
Material Options St52, CK45, 4140, Duplex2205, Stainless Steel 304/316
Certifications ABS, Lloyds, SGS
Package Bubble-wrap packing in wooden case
Structure Piston Type, Plunger Type, Telescopic Type
Power Hydraulic & Pneumatic
Double Acting Hydraulic Cylinder 140mm Bore 600mm Stroke 0 Double Acting Hydraulic Cylinder 140mm Bore 600mm Stroke 1 Double Acting Hydraulic Cylinder 140mm Bore 600mm Stroke 2 Double Acting Hydraulic Cylinder 140mm Bore 600mm Stroke 3
Company Information

Location: Jiangsu, China (established 2022)

Markets Served: Domestic (40%), Africa (10%), North America (10%), South America (8%), Southeast Asia (6%), Western Europe (5%), and other global markets

Workforce: 51-100 employees

Quality Assurance
  • Pre-production samples provided before mass production
  • Final inspection conducted before shipment
Product Range

Specializing in hydraulic cylinders including single-acting, double-acting, and construction machinery hydraulic cylinders.

Why Choose Us

Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co., Ltd. is a technology-driven enterprise with 50 million yuan registered capital, specializing in research, design, development, production, and service of hydraulic solutions.

Service Information
  • Delivery Terms: FOB
  • Payment Options: T/T (USD, EUR)
  • Languages: English, Chinese
