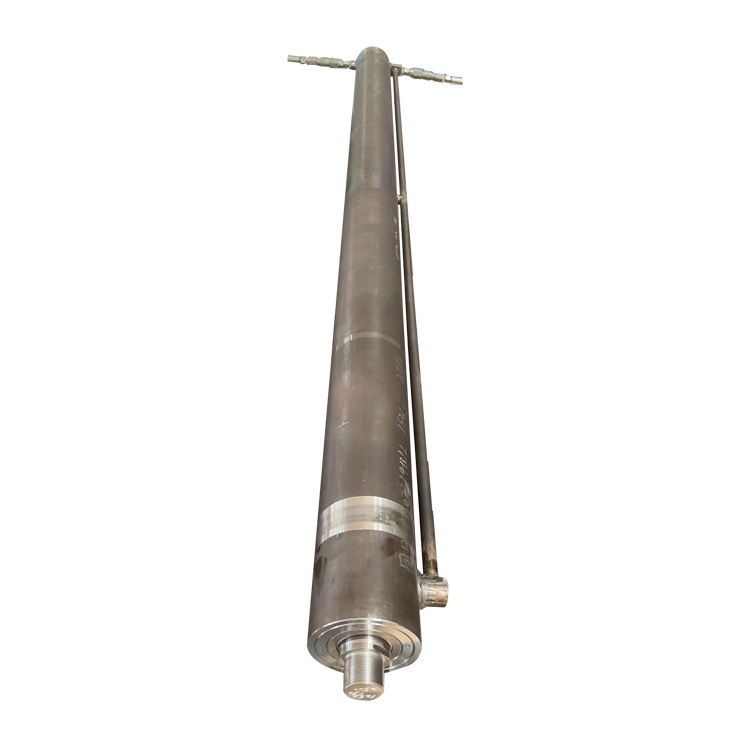

ES50 Hydraulic Cylinder 125mm Bore 2500mm Stroke High Pressure
Place of Origin:China
Brand Name:Guoyue
Certification:CE
Model Number:customized
Minimum Order Quantity:1 piece
Price:USD1,000-10000/pieces
Payment Terms:T/T
Supply Ability:2500 Ton/Tons Per Year
Product Details
Highlight:
125mm bore hydraulic cylinder
,2500mm stroke hydraulic cylinder
,high pressure hydraulic cylinder
Product Name:
Hydraulic Cylinder
Pressure:
1MPa
Power:
25MPa
Dimension(L*W*H):
2800*300*150mm
Rod Diameter:
70mm
Maximum Stroke:
2500mm
Outer Tube Diameter:
152mm
Inner Tube Diameter:
125mm
Pressure:
Customized
Working Medium:
Hydraulic Oil
Technique:
Forging&Casting
Minimum Oeder Quantity:
1PCS
Certifications:
CE
Piston Seal:
Urethane Seal
Seals:
Chinese
Usage:
Metallurgical Industry Machinery
Ship Cost:
Not Include
Product Description
OEM ES50 Front & Rear Installation Hydraulic Cylinder
125 70-2500 Earring Connection Thread Without Buffering Requirements Ultra-High-Pressure Hydraulic Cylinder
Product Specifications
| Attribute | Value |
|---|---|
| Product name | Hydraulic Cylinder |
| Pressure | 1MPa |
| Power | 25MPa |
| Dimension (L×W×H) | 2800×300×150mm |
| Rod Diameter | 70mm |
| Maximum Stroke | 2500mm |
| Outer Tube Diameter | 152mm |
| Inner Tube Diameter | 125mm |
Product Description
This OEM ES50 hydraulic cylinder features front and rear installation with earring connection thread, designed for ultra-high-pressure applications without buffering requirements. Engineered for durability and performance in demanding industrial environments.
Key Features
- Tube follows GUOYUE CD250 style with material options: 45#, 42CrMo, or 27SiMn steel
- Precision ground hole to H8 with surface roughness Ra under 0.4 μm
- Components made from 45# steel (head, base, ears, piston) - no cast iron or cast steel
- Optional fixed or floating bumpers for controlled deceleration
- Ultrasound-tested welds for stress reduction and extended service life
- Premium international seals (NOK, Trelleborg, Merkel, GP)
- Tested to GB/T15622-2005 and Q/GAKY014-2023 standards
- 1-year warranty against manufacturing defects
Applications
Ideal for engineering machinery, mining, shipping, metallurgy, water conservancy, offshore operations, agriculture, and more. Perfect for applications requiring high force in compact spaces.
Additional Specifications
- Seal Options: Parker, Merkel, NOK, Hallite
- Paint Colors: Red, Grey, Yellow, Black (customizable)
- Materials: St52, CK45, 4140, Duplex2205, Stainless Steel 304/316
- Certifications: ABS, Lloyds, SGS
- Structure Types: Piston Type, Plunger Type, Telescopic Type
- Power Source: Hydraulic & Pneumatic
- Brand: Guoyue
- Samples: Available
Product Images
Company Information
Based in Jiangsu, China, we specialize in hydraulic cylinder manufacturing with a global distribution network. Our 51-100 person team serves markets worldwide including North America, Europe, Africa, and Asia.
Quality Assurance
- Pre-production samples provided before mass production
- Final inspection before shipment
Product Range
We manufacture various hydraulic cylinders including single-acting, double-acting, and construction machinery hydraulic cylinders.
Services
- Delivery Terms: FOB
- Payment: USD/EUR via T/T
- Languages: English, Chinese
