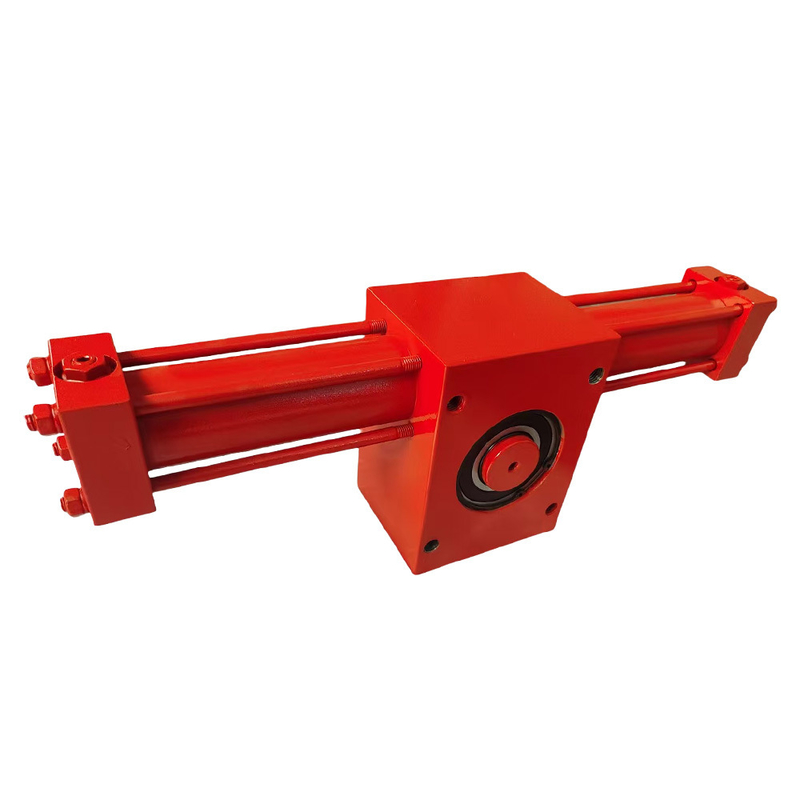

Single Acting Hydraulic Cylinder 16MPa for Water Conservancy Projects

Place of Origin:China
Brand Name:Guoyue
Certification:CE
Model Number:customized
Minimum Order Quantity:1 piece
Price:USD1,000-10000/pieces
Payment Terms:T/T
Supply Ability:2500 Ton/Tons Per Year
Product Details
Highlight:

single acting hydraulic cylinder 16MPa

,

hydraulic cylinder for water conservancy

,

high pressure hydraulic cylinder with warranty
Product Name: Hydraulic Cylinder
Power: 16MPa
Dimension(L*W*H): 1030*255*180mm
Rod Diameter: 70mm
Maximum Stroke: 700mm
Outer Tube Diameter: 127
Inner Tube Diameter: 100mm
Overall Length: 200mm
Type: Single Acting Cylinder
Material: Steel, Customized
Pressure: Customized
Working Medium: Hydraulic Oil
Technique: Forging&Casting
Minimum Oeder Quantity: 1PCS
Certifications: CE
Piston Seal: Urethane Seal
Seals: Chinese
Usage: Metallurgical Industry Machinery
Ship Cost: Not Include
Product Description
Custom Single Acting Hydraulic Cylinder for Water Conservancy Projects
Product Specifications
Attribute Value
Product Name Hydraulic Cylinder
Power 16MPa
Dimension (L×W×H) 1030×255×180mm
Rod Diameter 70mm
Maximum Stroke 700mm
Outer Tube Diameter 127mm
Inner Tube Diameter 100mm
Overall Length 200mm
Type Single Acting Cylinder
Material Steel, Customized
Premium Construction Features
  • Tube Quality: GUOYUE CD250 style, available in 45#, 42CrMo, or 27SiMn steel with H8 ground hole (Ra under 0.4μm)
  • Components: Head, base, ears, and piston made from 45# steel (no cast iron or cast steel)
  • Slow-Down System: Optional fixed or floating bumpers for controlled deceleration
  • Welding: Ultrasound-tested heavy-load welds for stress reduction and longevity
  • Seals: Premium international brands (NOK, Trelleborg, Merkel, GP)
  • Testing: Each cylinder tested to GB/T15622-2005 and Q/GAKY014-2023 standards
  • Warranty: 1-year coverage from shipment date
Key Advantages

Custom-built single-acting hydraulic cylinder designed for seamless integration into water control systems. Features include:

  • Simple one-port operation with gravity return
  • Precision seal grooves for optimal O-ring performance
  • OEM-compatible dimensions for easy installation
  • Robust construction with thick steel components
  • Leak-proof design with multi-stage telescoping capability
Applications

Ideal for water management systems including:

  • Reservoir spillway gates
  • Flood control barriers
  • Irrigation canal controls
  • Hydropower installations
  • Engineering machinery, mining, shipping, and agricultural equipment
Customization Options
Option Available Choices
Seals Parker, Merkel, NOK, Hallite
Paint Color Red, Grey, Yellow, Black (custom available)
Material St52, CK45, 4140, Duplex2205, Stainless Steel 304/316
Certification ABS, Lloyds, SGS
Structure Piston Type, Plunger Type, Telescopic Type
Product Images
Single Acting Hydraulic Cylinder 16MPa for Water Conservancy Projects 0 Single Acting Hydraulic Cylinder 16MPa for Water Conservancy Projects 1 Single Acting Hydraulic Cylinder 16MPa for Water Conservancy Projects 2 Single Acting Hydraulic Cylinder 16MPa for Water Conservancy Projects 3 Single Acting Hydraulic Cylinder 16MPa for Water Conservancy Projects 4 Single Acting Hydraulic Cylinder 16MPa for Water Conservancy Projects 5 Single Acting Hydraulic Cylinder 16MPa for Water Conservancy Projects 6 Single Acting Hydraulic Cylinder 16MPa for Water Conservancy Projects 7 Single Acting Hydraulic Cylinder 16MPa for Water Conservancy Projects 8
Manufacturer Information
About Us:

Based in Jiangsu, China with 51-100 employees, serving global markets including North America, Europe, Africa, and Asia since 2022.

Quality Assurance:
  • Pre-production samples for approval
  • Final inspection before shipment
Product Range:

Specializing in hydraulic cylinders including single-acting, double-acting, and construction machinery models.

Why Choose Us:

Guoyue Hydraulic Equipment Manufacturing is a technology enterprise with 50 million yuan registered capital, integrating R&D, production, and service.

Service Details:
  • Delivery Terms: FOB
  • Payment: USD/EUR via T/T
  • Languages: English, Chinese
