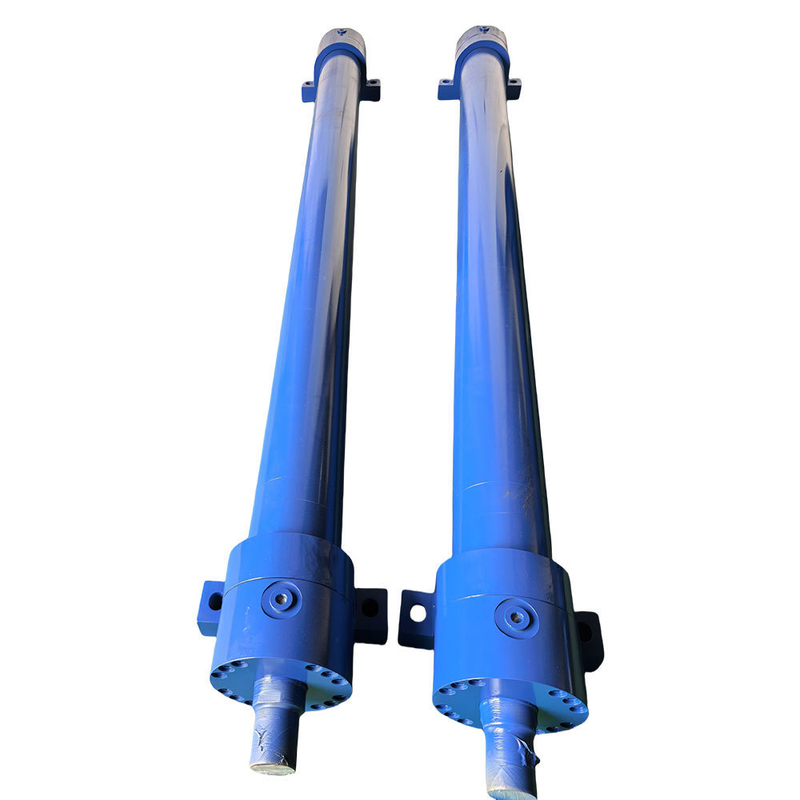

25MPa Single Acting Hydraulic Cylinder for Lift Platform 125mm Tube

Place of Origin:China
Brand Name:Guoyue
Certification:CE
Model Number:customized
Minimum Order Quantity:1 piece
Payment Terms:T/T
Supply Ability:2500 Ton/Tons Per Year
Product Details
Highlight:

25MPa single acting hydraulic cylinder

,

hydraulic cylinder for lift platform

,

125mm tube hydraulic cylinder
Product Name: Hydraulic Cylinder
Power: 25MPa
Dimension(L*W*H): 780*170*170mm
Rod Diameter: 70mm
Maximum Stroke: 80mm
Outer Tube Diameter: 125mm
Inner Tube Diameter: 100mm
Overall Length: Customized
Type: Single Acting Cylinder
Material: Steel, Customized
Pressure: Customized
Working Medium: Hydraulic Oil
Technique: Forging&Casting
Minimum Oeder Quantity: 1PCS
Certifications: CE
Piston Seal: Urethane Seal
Seals: Chinese
Usage: Metallurgical Industry Machinery
Ship Cost: Not Include
Product Description
OEM Fast Delivery 160 90-2550 Single Acting Tension Load Hydraulic Cylinder for Lift Platform
Product Specifications
Attribute Value
Product Name Hydraulic Cylinder
Power 25MPa
Dimension (L×W×H) 780×170×170mm
Rod Diameter 70mm
Maximum Stroke 80mm
Outer Tube Diameter 125mm
Inner Tube Diameter 100mm
Overall Length Customized
Type Single Acting Cylinder
Material Steel, Customized
Product Features

This high-performance hydraulic cylinder is designed for lift platforms with built-in seal groove technology for superior performance and durability.

  • Premium Materials: Tube follows GUOYUE CD250 style with options for 45#, 42CrMo, or 27SiMn steel
  • Precision Engineering: Hole ground to H8 with surface roughness Ra under 0.4 μm
  • Safety Features: Optional fixed or floating bumpers for controlled deceleration
  • Quality Welds: Ultrasound tested heavy-load welds for reduced stress and extended lifespan
  • Premium Seals: Uses only top-tier seals from Trelleborg (Sweden), Merkel and GP (Germany)
  • Rigorous Testing: Each cylinder tested to GB/T15622-2005 and Q/GAKY014-2023 standards
  • Reliability: 1-year warranty from ship date with free repair/replacement for manufacturing defects
Technical Advantages

This hydraulic cylinder combines robust construction with precision engineering for reliable performance in demanding applications:

  • 160mm bore with 90mm rod provides controlled lifting power
  • 2550mm reach with smooth, gradual extension
  • Single-acting design simplifies installation with fewer hoses
  • Built-in seal grooves ensure superior protection against contaminants
  • Ready-to-install OEM configuration with fast delivery options
Applications

Ideal for various industrial and commercial lifting applications:

  • Cherry pickers and aerial work platforms
  • Warehouse mezzanine lifts and material handling systems
  • Theater rigging and stage equipment
  • Fire truck ladders and emergency equipment
  • Engineering machinery, mining, shipping, metallurgy, and more
Additional Specifications
  • Seal Options: Parker, Merkel, Hallite
  • Paint Colors: Red, Grey, Yellow, Black (customizable)
  • Material Options: St52, CK45, 4140, Duplex2205, Stainless Steel 304/316
  • Certifications: ABS, Lloyds, SGS available
  • Packaging: Bubble-wrap with wooden case protection
  • Structure: Piston Type, Plunger Type, Telescopic Type
  • Power Source: Hydraulic & Pneumatic
  • Brand: Guoyue
  • Sample Availability: Yes
Product Images
25MPa Single Acting Hydraulic Cylinder for Lift Platform 125mm Tube 0 25MPa Single Acting Hydraulic Cylinder for Lift Platform 125mm Tube 1 25MPa Single Acting Hydraulic Cylinder for Lift Platform 125mm Tube 2 25MPa Single Acting Hydraulic Cylinder for Lift Platform 125mm Tube 3 25MPa Single Acting Hydraulic Cylinder for Lift Platform 125mm Tube 4 25MPa Single Acting Hydraulic Cylinder for Lift Platform 125mm Tube 5
Company Information
Who are we?

Based in Jiangsu, China, we are Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co., Ltd., a technology enterprise specializing in hydraulic solutions since 2022. With 51-100 employees, we serve global markets including North America, Europe, Africa, and Asia.

How do we guarantee quality?
  • Pre-production samples for approval
  • Final inspection before shipment
  • Comprehensive testing to international standards
Why choose us?

As a registered technology enterprise with 50 million yuan capital, we integrate research, design, development, production, and service to deliver superior hydraulic solutions.

Our services:
  • Delivery Terms: FOB
  • Payment: USD/EUR via T/T
  • Languages: English, Chinese
