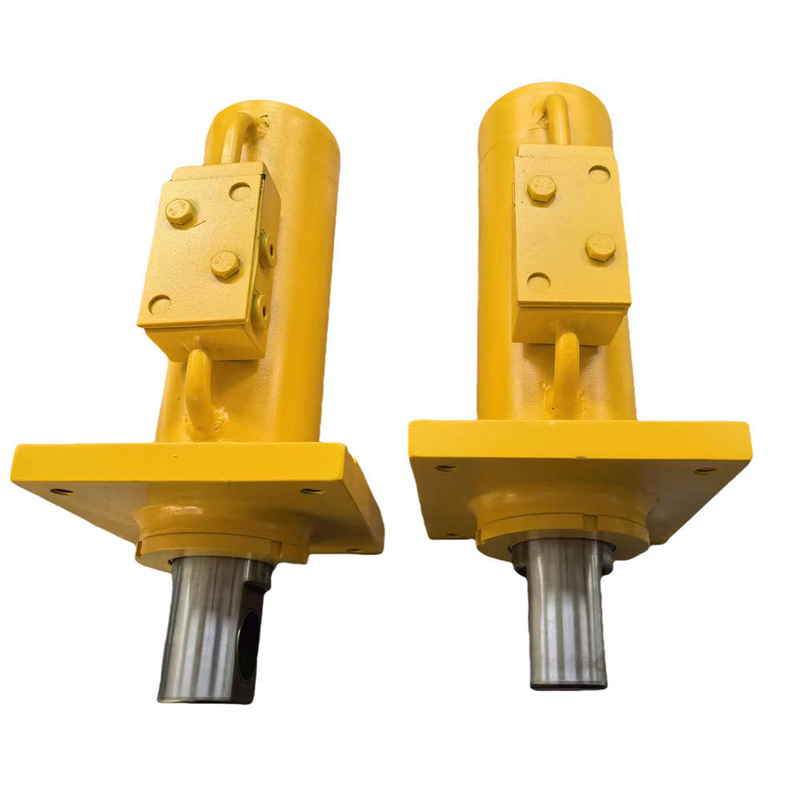

Single Acting Hydraulic Cylinder 25MPa with Nested Sleeve for Automation

Name: Single Acting Hydraulic Cylinder 25MPa with Nested Sleeve for Automation
Brand: Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd
SKU: customized
Price: 5,000.00 USD
Availability: InStock

Place of Origin:China

Brand Name:Guoyue

Certification:CE

Model Number:customized

Minimum Order Quantity:1 piece

Price:USD1,000-10000/pieces

Payment Terms:T/T

Supply Ability:2500 Ton/Tons Per Year

Product Details

Highlight:

Single Acting Hydraulic Cylinder 25MPa

,

Hydraulic Cylinder with Nested Sleeve

,

Automation Hydraulic Cylinder 25MPa

Product Name: Hydraulic Cylinder

Weight: 80

Power: 25MPa

Dimension(L*W*H): 780*170*170mm

Rod Diameter: 70mm

Maximum Stroke: Customized

Outer Tube Diameter: 125mm

Inner Tube Diameter: 100mm

Overall Length: Customized

Type: Single Acting Cylinder

Pressure: Customized

Working Medium: Hydraulic Oil

Technique: Forging&Casting

Minimum Oeder Quantity: 1PCS

Certifications: CE

Piston Seal: Urethane Seal

Seals: Chinese

Usage: Metallurgical Industry Machinery

Ship Cost: Not Include

Product Description

High-Precision Force Control Clamping Hydraulic Cylinder

Industrial Automation Nested Sleeve Type

Product Specifications

Attribute	Value
Product Name	Hydraulic Cylinder
Weight	80kg
Power	25MPa
Dimensions (L×W×H)	780×170×170mm
Rod Diameter	70mm
Maximum Stroke	Customized
Outer Tube Diameter	125mm
Inner Tube Diameter	100mm
Overall Length	Customized
Type	Single Acting Cylinder

Product Features

Premium Construction: Tube follows GUOYUE CD250 style with material options including 45#, 42CrMo, or 27SiMn steel
Precision Machining: Holes ground to H8 with surface roughness Ra under 0.4μm
Durable Components: Head, base, ears, and piston made from 45# steel (no cast iron or cast steel)
Safety Features: Optional fixed or floating bumpers for controlled deceleration at any speed or load
Quality Welds: Ultrasound-tested heavy-load welds for reduced stress and extended lifespan
Premium Seals: International brands including NOK (Japan), Trelleborg (Sweden), Merkel and GP (Germany)
Rigorous Testing: Each cylinder tested to GB/T15622-2005 and Q/GAKY014-2023 standards with provided test documentation
Reliability Guarantee: 1-year warranty from shipment date with free repair/replacement for manufacturing defects

Key Advantages

This high-precision clamping hydraulic cylinder delivers exceptional performance for industrial automation applications. Its nested sleeve design provides extended reach while maintaining a compact footprint. The robust construction features thick steel components and a hardened rod for maximum durability without bending. High-grade international seals ensure leak-free operation while resisting dust and grit contamination.

Application Scenarios

Ideal for precision clamping and positioning in various industrial settings including:

Automotive assembly lines
Electronics manufacturing
Heavy component positioning
Factory automation systems

Widely used in engineering machinery, mining, shipping, metallurgy, water conservancy, offshore operations, and agricultural equipment.

Additional Specifications

Seal Options	Parker, Merkel, NOK, Hallite
Paint Colors	Red, Grey, Yellow, Black (customizable)
Material Options	St52, CK45, 4140, Duplex2205, Stainless Steel 304/316
Certifications	ABS, Lloyds, SGS
Packaging	Bubble-wrap with wooden case
Core Components	Bearing, Pressure vessel, Pump
Standardization	Nonstandard (customizable)
Structure Types	Piston Type, Plunger Type, Telescopic Type
Power Source	Hydraulic & Pneumatic
Brand	Guoyue
Samples	Available
