4x16 inch stroke Hydraulic Steering Cylinder

4x16 inch stroke Hydraulic Steering Cylinder

  • High Light

    4x16 Hydraulic Steering Cylinder

    ,

    16in stroke Hydraulic Cylinder

    ,

    4x16 Hydraulic Cylinder

  • Name
    Hydraulic Steering Cylinder
  • Keyword
    Steering Hydraulic Ram
  • Bore
    4 Inch
  • Rod
    30mm Or Customized
  • Stroke
    16 Inch
  • Installation Size
    815mm Or Customized
  • Working Pressure
    7.5Mpa
  • Place of Origin
    Jiangsu China
  • Brand Name
    JSRUIYA
  • Certification
    ISO
  • Model Number
    Stone cutting equipment steering hydraulic cylinder
  • Minimum Order Quantity
    OEM
  • Price
    Negotiation
  • Packaging Details
    Wooden box, iron box
  • Delivery Time
    15-45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    30,000 Pieces/Year

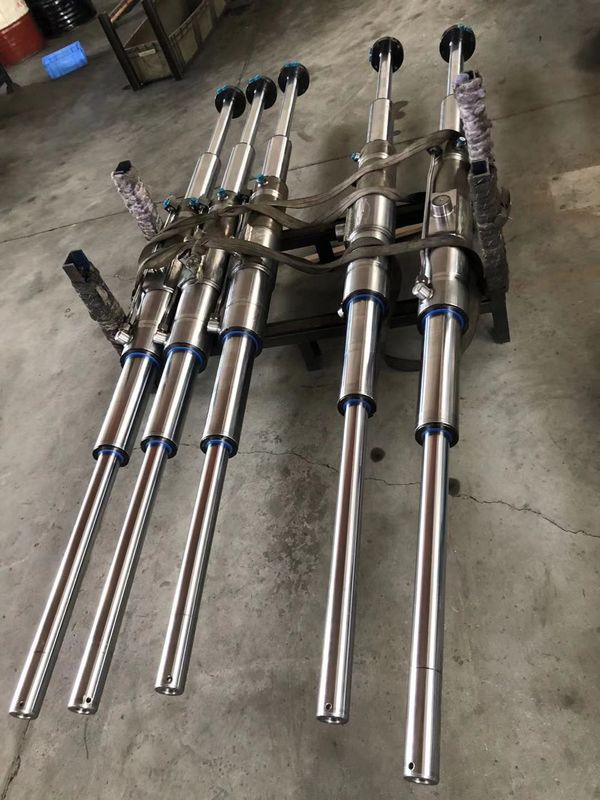

4x16 inch stroke Hydraulic Steering Cylinder


4x16 inch stroke Hydraulic Steering Cylinder 0

4x16 inch stroke Hydraulic Steering Cylinder

JSRUIYA Hydraulic Machinery is a highly specialised company that focuses mainly on the production of hydraulic cylinders: double-acting cylinders, single-acting cylinders, telescopic cylinders and their components. The company is engaged in the manufacture and sales of hydraulic cylinders, chrome-plated piston rods/bars, cold drawn seamless pipes, hydraulic seals, rod ends, bearings, bushings, hydraulic components and other components for the production of hydraulic cylinders.

The products range from simple components to the most exacting high-tec cylinders and hydraulic components. The products are distinguished by their superior design, high degree of safety and 100% quality testing in compliance with ISO standard 10100:2001. Our state-of-the-art equipment allows us to manufacture products as quickly as possible in accordance with the most complex demands of our clients. Our mission is to provide complete and reliable operation of hydraulic equipment.



Technical Parameters:


Product Name Factory Design Customized Hydraulic Cylinder
Rod Size 18 mm - 2000 mm(0.71inch - 78.74 inch)
bore Size 40-200mm(1.57 inch - 7.87inch)
Stroke 10-15000mm(0.39 inch - 590.55inch)
Tipping Weight 1 Ton - 100 Ton
Working Pressure 2500psi - 8000psi(3000psi , 5000psi available)
Material Carbon Steel/Cast Iron /Aluminum/Hard chrome plated Alloy Steel
Barrel/Tube 1. Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc.
  2. Technology: cold drawn ,hot rolled,forged
  3. Surface Roughness: R0.16-0.32
  4. Choose by different working condition and requirements.

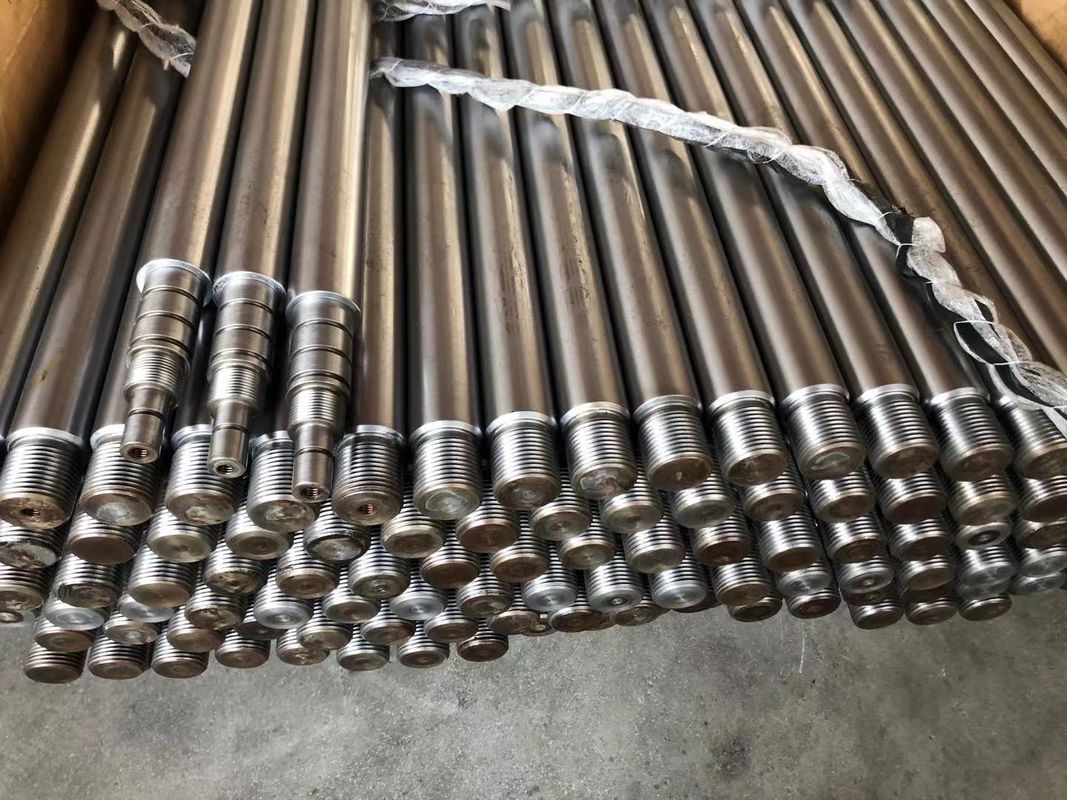

Piston rod 1. Material: SAE1045(45#),35CrMo,42CrMo4,etc.
  2. Technology: Quenched and tempered
  3. Surface treatment: chrome plated, nickel-chromium plated, nitriding, nitrocarburizing
Seal kits 1. Hallite, NOK, SKF, Parker, Hercules,Trelleborg,China made,Taiwan made
  2. Choose by different working condition and requirements.
Hydraulic Cylinder Types Single Acting Hydraulic Cylinder,Double Acting Hydraulic Cylinder,Telescopic Hydraulic Cylinder,Welded Hydraulic Cylinder,Tie-Rod Hydraulic Cylinder,Bolted Hydraulic Cylinder,Re-phasing Systems Hydraulic Cylinder,Double Rod End Hydraulic Cylinder
Mounting Style Earrings, flange, foot mounting, trunnion, cross tube, etc
Test Static balance test
Surface treatment Painting/sand blasting/oiled,Follow customers' requirement.
Application Excavator boom arm bucket,Construction,Machinery,Agricultural Machine,Lift gate & Snow plow,Trash Compactors,etc



Hydraulic Cylinder Series Available:





1 Inch Hydraulic Cylinder

10 Inch Hydraulic Cylinder

12 Inch Hydraulic Cylinder

120 Inch Stroke Hydraulic Cylinder

14 Inch Stroke Hydraulic Cylinder

16 Inch Stroke Hydraulic Cylinder

18 Inch Hydraulic Cylinder

2 Inch Hydraulic Cylinder

20 Inch Stroke Hydraulic Cylinder

24 Inch Stroke Hydraulic Cylinder

3 Inch Hydraulic Cylinder

30 Inch Hydraulic Cylinder

36 Inch Stroke Hydraulic Cylinder

4 Inch Hydraulic Cylinder

48 Inch Hydraulic Cylinder

5 Inch Hydraulic Cylinder

6 Inch Hydraulic Cylinder

60 Inch Stroke Hydraulic Cylinder

72 Inch Stroke Hydraulic Cylinder

8 Inch Hydraulic Cylinder

30 Inch Stroke Hydraulic Cylinder



Before Purchase, Pls Contact Me , We Can Discuss The Cylinder Details .



We Can Offered The Nonstandard Cylinders.If You Need OEM Service,Please Give Us The Specification Or The Drawing Of The Cylinder In Order To Give You The Best Service&Price.(Cylinder Diameter,Pressure,Stroke,Application,Installation Method,Mounting Distance Etc).



1. Diameter Of Bore & Rod
2. Stroke
3. Mounting Style
4. Mounting Distance
5. Working Pressure
6. Ports
7. Seals
8. Special Modifications





Production Process:



Cutting Horizontal Bandsaw Hydraulic Cylinder





Application:



Truck And Trailer Automotive Lifts Mining Gas/Oil Industries
Forklifts Scissor Lifts Tractors Farm Implements
Harvesters Hay Balers Ladder Trucks Dump Trailers
Lift Gates Wheel Loaders Excavators Bulldozers
Garbage Trucks Compactors Hoist Trucks Cranes
Snow Equipment Wood Splitter Loaders Excavator





FAQ:



1. Are You Manufacturer Or A Trading Company?
We Are The Manufacturer, And Have Been In This Industry For Nearly Ten Years.


2. What's Your Payment Way?
T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.


3. How Can You Ensure The Unit’s Quality After We Put The Order?
Before The Delivery, We Will Send You Machine’s Pictures And Videos, Or You Can Come To Us To Have The Quality Checking By Yourself, Or By The Third Party Inspection Organization Contacted By Your Side.


4. We Are Afraid You Won't Deliver Us The Machine After We Pay You The Money.
Please Note Our Above Business License And Certificates. And If You Don't Trust Us, You Can Use Alibaba’s Trade Assurance Service .


5. Why Choose Your Company?
We Have Been Engaged In The Manufacturing Of Various Hydraulic Power Unit Professionally Nearly 10 Years With Hundreds Of Oil Circuits, Which Can Meet The Needs Of Different Requests.
