7Mpa 2 Ton 20mm Rod Positioning Welded Hydraulic Cylinders

7Mpa 2 Ton 20mm Rod Positioning Welded Hydraulic Cylinders

  • High Light

    20mm Rod Positioning Hydraulic Cylinders

    ,

    20mm Rod Welded Hydraulic Cylinders

    ,

    7Mpa Welded Hydraulic Cylinders

  • Name
    7 Mpa 2 Ton 20mm Rod Positioning Welded Hydraulic Cylinders
  • Bore
    40mm
  • Rod
    20mm
  • Stroke
    50mm
  • Installation Size
    350mm
  • Working Pressure
    7Mpa
  • Place of Origin
    Jiangsu China
  • Brand Name
    JSRUIYA
  • Certification
    ISO
  • Model Number
    Positioning hydraulic cylinder
  • Minimum Order Quantity
    OEM
  • Price
    Negotiation
  • Packaging Details
    Wooden box, iron box
  • Delivery Time
    15-45days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    30,000 Pieces/Year

7Mpa 2 Ton 20mm Rod Positioning Welded Hydraulic Cylinders

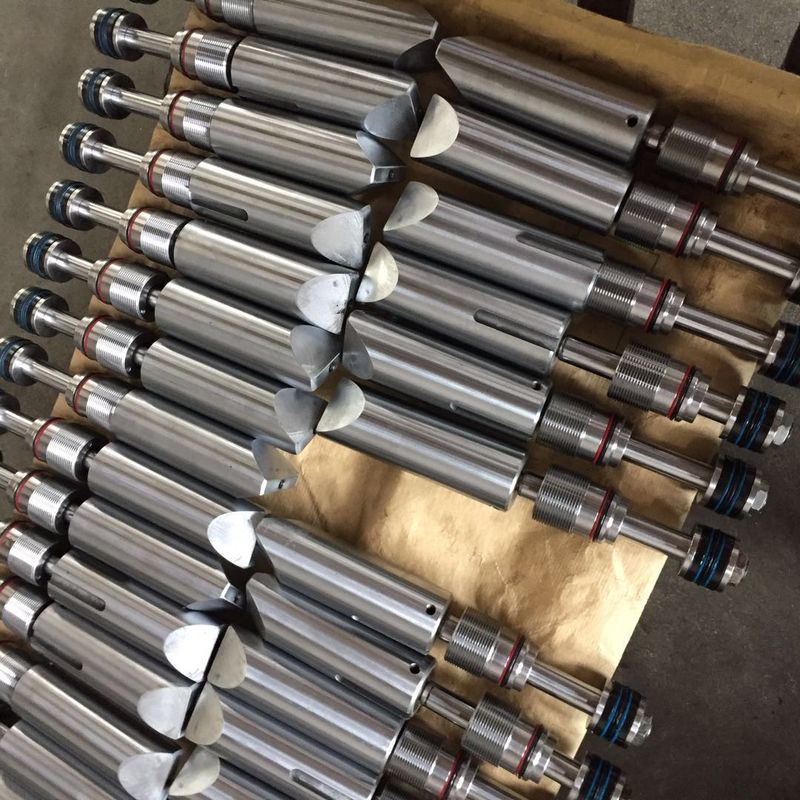

7Mpa 2 Ton 20mm Rod Positioning Welded Hydraulic Cylinders 0

Position hydraulic cylinder

detail drawing

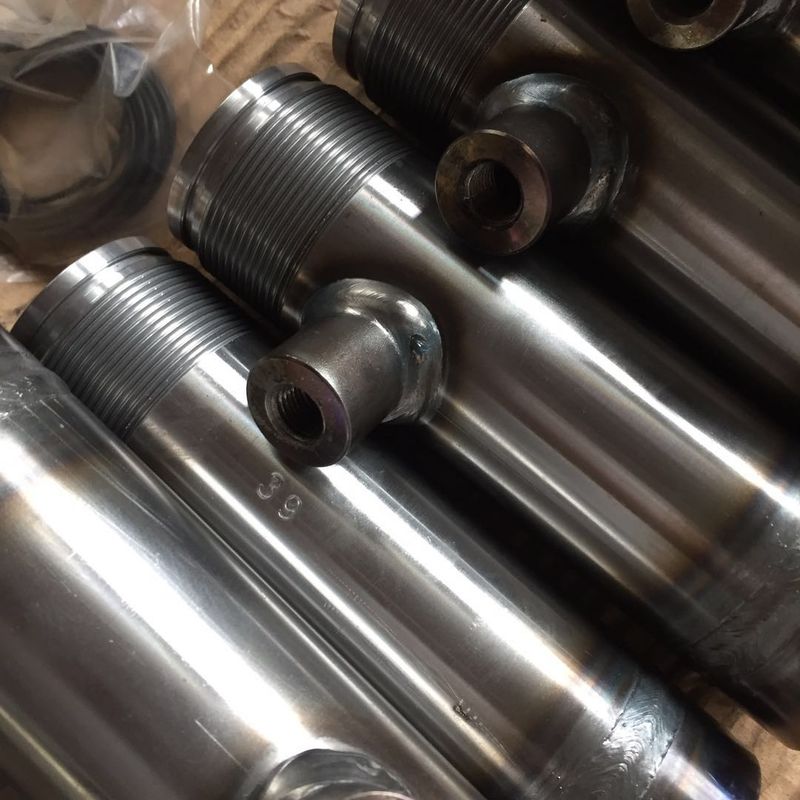

7Mpa 2 Ton 20mm Rod Positioning Welded Hydraulic Cylinders 1



Technical Parameters:
Bore: 40mm
Rod:20mm
Stroke:50mm
Working Pressure:7 Mpa
Installation size:350mm
Pressure test:15 Mpa
Piston speed:maximum 1m/s
Temperature range:-40℃ to +300℃

Product Name Factory Design Customized Hydraulic Cylinder
Rod Size 18 mm - 2000 mm(0.71inch - 78.74 inch)
bore Size 40-200mm(1.57 inch - 7.87inch)
Stroke 10-15000mm(0.39 inch - 590.55inch)
Tipping Weight 1 Ton - 100 Ton
Working Pressure 2500psi - 8000psi(3000psi , 5000psi available)
Material Carbon Steel/Cast Iron /Aluminum/Hard chrome plated Alloy Steel
Barrel/Tube 1. Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc.
  2. Technology: cold drawn ,hot rolled,forged
  3. Surface Roughness: R0.16-0.32
  4. Choose by different working condition and requirements.
Piston rod 1. Material: SAE1045(45#),35CrMo,42CrMo4,etc.
  2. Technology: Quenched and tempered
  3. Surface treatment: chrome plated, nickel-chromium plated, nitriding, nitrocarburizing
Seal kits 1. Hallite, NOK, SKF, Parker, Hercules,Trelleborg,China made,Taiwan made
  2. Choose by different working condition and requirements.
Hydraulic Cylinder Types Single Acting Hydraulic Cylinder,Double Acting Hydraulic Cylinder,Telescopic Hydraulic Cylinder,Welded Hydraulic Cylinder,Tie-Rod Hydraulic Cylinder,Bolted Hydraulic Cylinder,Re-phasing Systems Hydraulic Cylinder,Double Rod End Hydraulic Cylinder
Mounting Style Earrings, flange, foot mounting, trunnion, cross tube, etc
Test Static balance test
Surface treatment Painting/sand blasting/oiled,Follow customers' requirement.
Application Excavator boom arm bucket,Construction,Machinery,Agricultural Machine,Lift gate & Snow plow,Trash Compactors,etc





Hydraulic Cylinder Series Available:



2 X 10 Hydraulic Cylinder

2 X 12 Hydraulic Cylinder

2 X 16 Hydraulic Cylinder

2 X 24 Hydraulic Cylinder

2 X 6 Hydraulic Cylinder

2 X 8 Hydraulic Cylinder

2.5 X 8 Hydraulic Cylinder

2x10 Hydraulic Cylinder

3.5 X 8 Hydraulic Cylinder

3x10 Hydraulic Cylinder

3x12 Hydraulic Cylinder

3x24 Hydraulic Cylinder

3x8 Hydraulic Cylinder

4 X 4 Hydraulic Cylinder

4 X 24 Hydraulic Cylinder

4 X 30 Hydraulic Cylinder

4 X 36 Hydraulic Cylinder

4 X 8 Hydraulic Cylinder

4x16 Hydraulic Cylinder

4x24x2 Hydraulic Cylinder

5 X 30 Hydraulic Cylinder

5x24 Hydraulic Cylinder




Product Image:

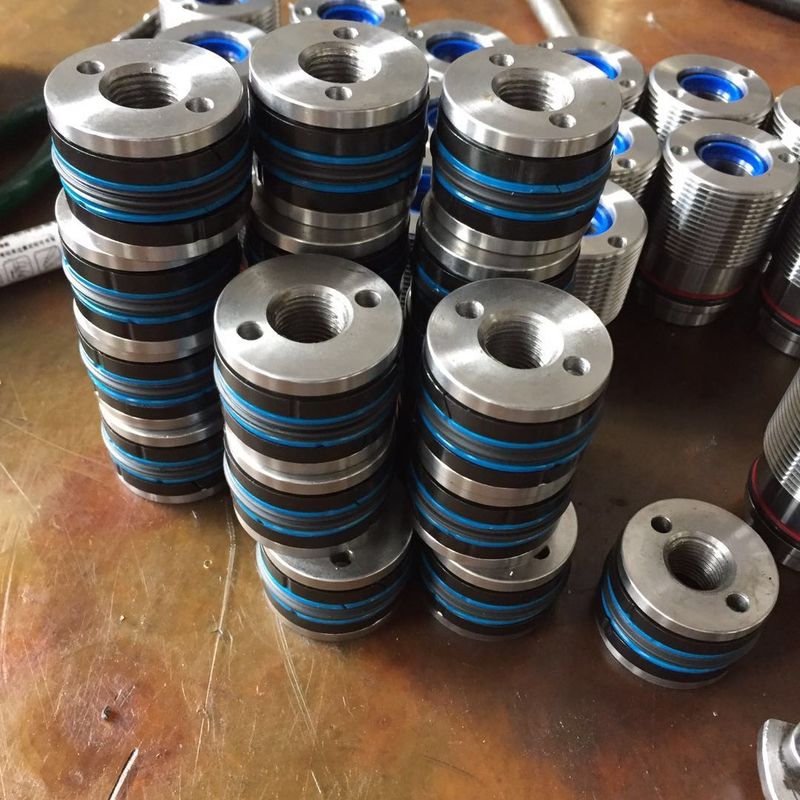

7Mpa 2 Ton 20mm Rod Positioning Welded Hydraulic Cylinders 2

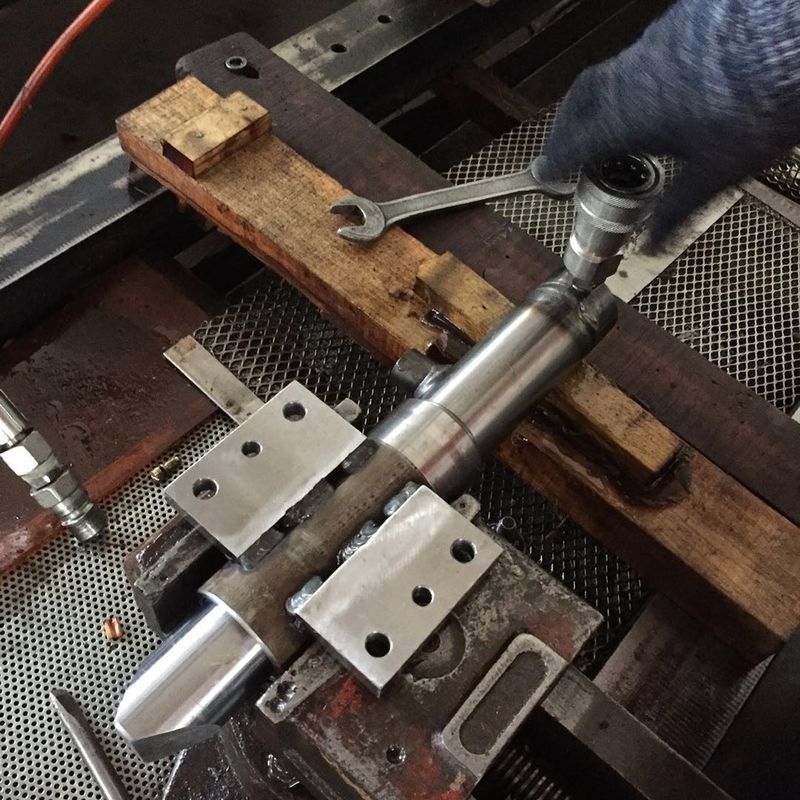

7Mpa 2 Ton 20mm Rod Positioning Welded Hydraulic Cylinders 3

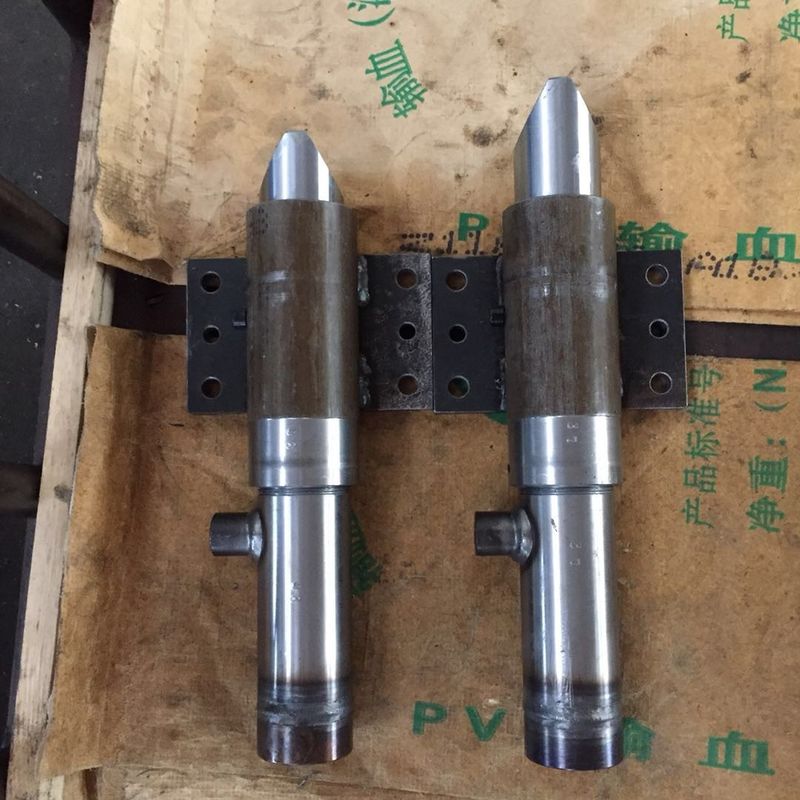

7Mpa 2 Ton 20mm Rod Positioning Welded Hydraulic Cylinders 4

7Mpa 2 Ton 20mm Rod Positioning Welded Hydraulic Cylinders 5

Before Purchase, Pls Contact Me , We Can Discuss The Cylinder Details .

Usually we custom cylinder according to customers drawing or samples.
