10 Ton 14 Inch Stroke Hydraulic Steering Cylinder

10 Ton 14 Inch Stroke Hydraulic Steering Cylinder
10 Ton 14 Inch Stroke Hydraulic Steering Cylinder 10 Ton 14 Inch Stroke Hydraulic Steering Cylinder 10 Ton 14 Inch Stroke Hydraulic Steering Cylinder

Large Image :  10 Ton 14 Inch Stroke Hydraulic Steering Cylinder

Product Details:
Place of Origin: Jiangsu China
Brand Name: JSRUIYA
Certification: ISO
Model Number: Stone cutting equipment steering hydraulic cylinder
Payment & Shipping Terms:
Minimum Order Quantity: OEM
Price: Negotiation
Packaging Details: Wooden box, iron box
Delivery Time: 15-45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000 Pieces/Year

10 Ton 14 Inch Stroke Hydraulic Steering Cylinder

Description
Name: Hydraulic Steering Cylinder Bore: 65mm Or Customized
Rod: 30mm Or Customized Stroke: 14 Inch
Installation Size: 815mm Working Pressure: 7.5Mpa
High Light:

10 Ton 14 Stroke Hydraulic Cylinder

,

10Ton Hydraulic Cylinder

,

10 Ton 14 Inch Stroke Hydraulic Ram

10 Ton 14 Inch Stroke Hydraulic Steering Cylinder





JSRUIYA Hydraulics has extensive experience in building custom cylinders and other hydraulic components.We build anything from single,double acting or telescopic cylinders.Hydraulic cylinders get their power from pressurized hydraulic fluid, which is typically oil. The hydraulic cylinder consists of a cylinder barrel, in which a piston connected to a piston rod moves back and forth. The barrel is closed on one end by the cylinder bottom (also called the cap) and the other end by the cylinder head (also called the gland) where the piston rod comes out of the cylinder. The piston has sliding rings and seals. The piston divides the inside of the cylinder into two chambers, the bottom chamber (cap end) and the piston rod side chamber (rod end / head end).






Product Image:

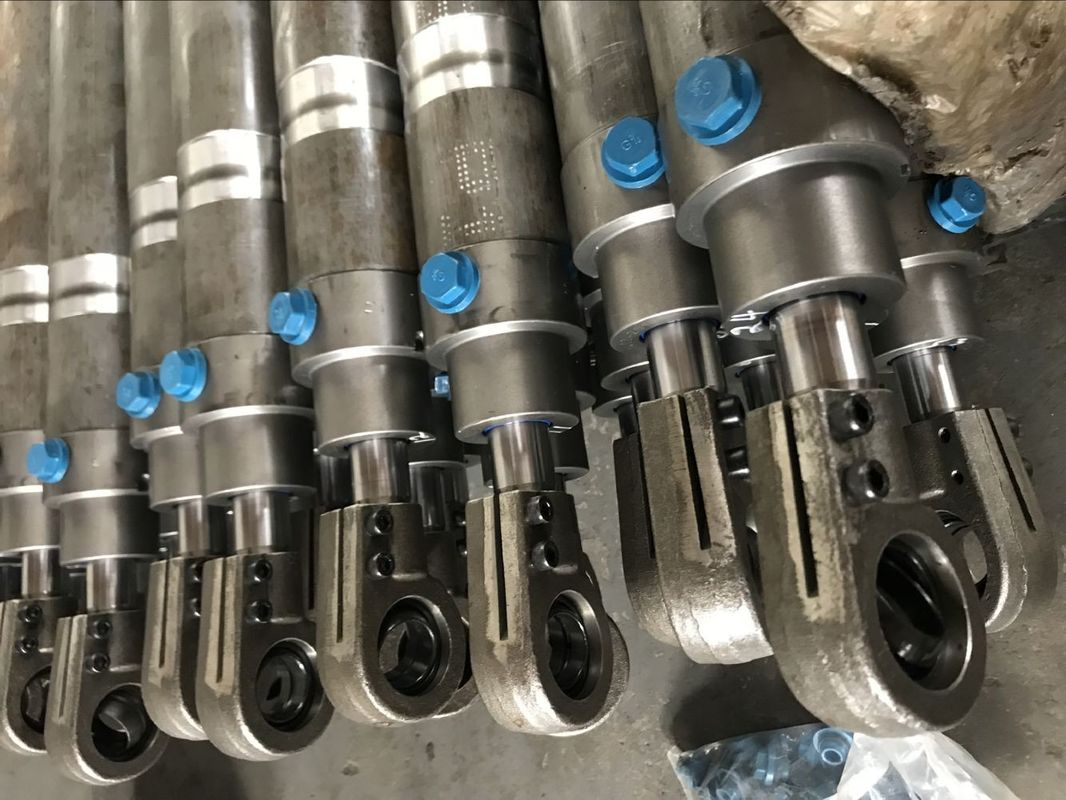

10 Ton 14 Inch Stroke Hydraulic Steering Cylinder 0

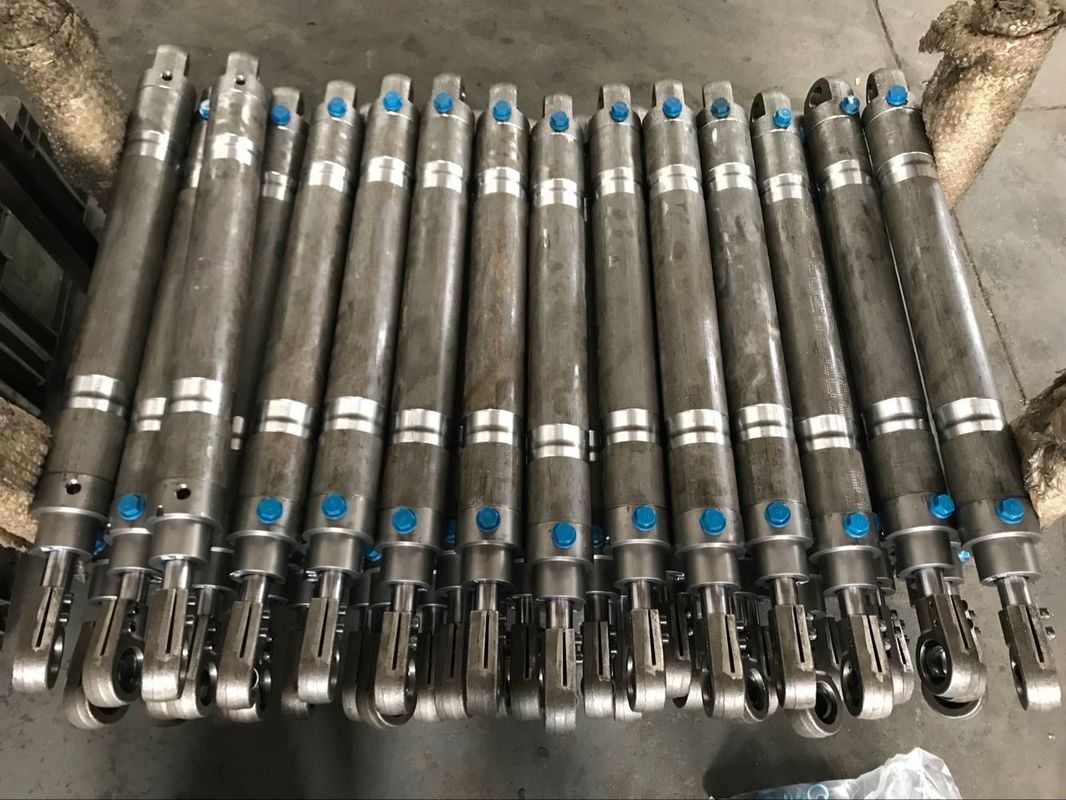

10 Ton 14 Inch Stroke Hydraulic Steering Cylinder 1

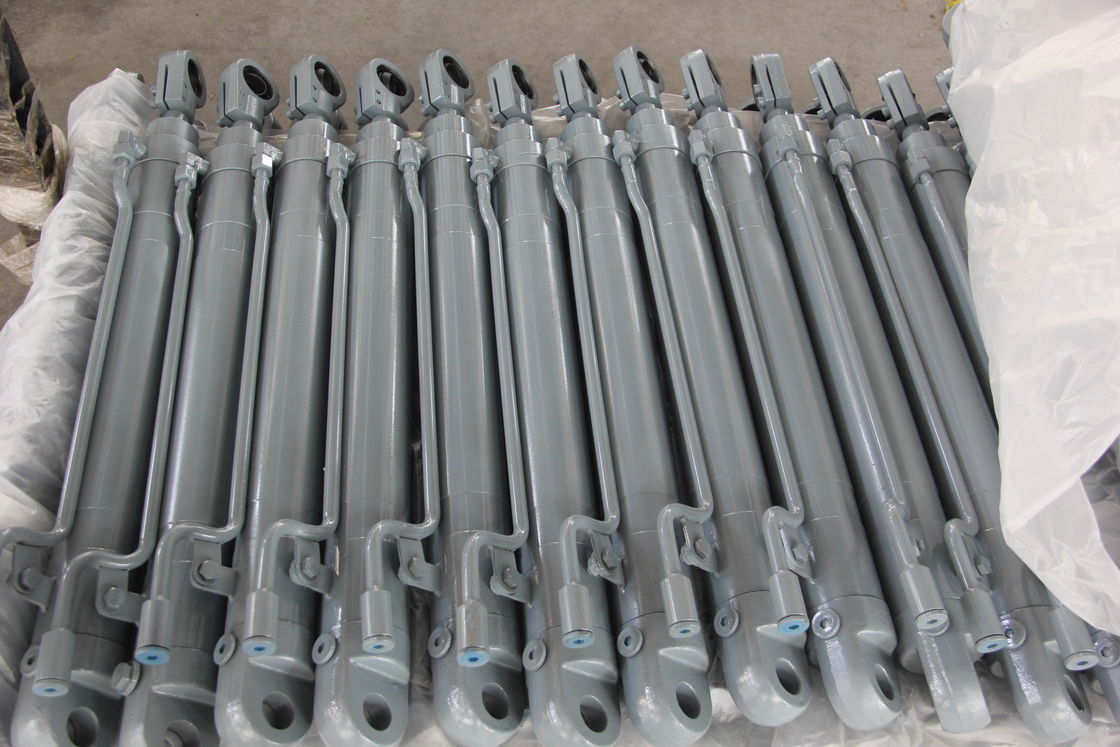

10 Ton 14 Inch Stroke Hydraulic Steering Cylinder 2



Technical Parameters:


Product Name Factory Design Customized Hydraulic Cylinder
Rod Size 18 mm - 2000 mm(0.71inch - 78.74 inch)
bore Size 40-200mm(1.57 inch - 7.87inch)
Stroke 10-15000mm(0.39 inch - 590.55inch)
Tipping Weight 1 Ton - 100 Ton
Working Pressure 2500psi - 8000psi(3000psi , 5000psi available)
Material Carbon Steel/Cast Iron /Aluminum/Hard chrome plated Alloy Steel
Barrel/Tube 1. Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc.
  2. Technology: cold drawn ,hot rolled,forged
  3. Surface Roughness: R0.16-0.32
  4. Choose by different working condition and requirements.
Piston rod 1. Material: SAE1045(45#),35CrMo,42CrMo4,etc.
  2. Technology: Quenched and tempered
  3. Surface treatment: chrome plated, nickel-chromium plated, nitriding, nitrocarburizing
Seal kits 1. Hallite, NOK, SKF, Parker, Hercules,Trelleborg,China made,Taiwan made
  2. Choose by different working condition and requirements.
Hydraulic Cylinder Types Single Acting Hydraulic Cylinder,Double Acting Hydraulic Cylinder,Telescopic Hydraulic Cylinder,Welded Hydraulic Cylinder,Tie-Rod Hydraulic Cylinder,Bolted Hydraulic Cylinder,Re-phasing Systems Hydraulic Cylinder,Double Rod End Hydraulic Cylinder
Mounting Style Earrings, flange, foot mounting, trunnion, cross tube, etc
Test Static balance test
Surface treatment Painting/sand blasting/oiled,Follow customers' requirement.
Application Excavator boom arm bucket,Construction,Machinery,Agricultural Machine,Lift gate & Snow plow,Trash Compactors,etc



 Hydraulic Cylinder Series Available:



2 X 10
2 X 12
2 X 16
2 X 24
2 X 6
2 X 8
2.5 X 8
2x10
3.5 X 8
3x10
3x12
3x24
3x8
4 X 4
4 X 24
4 X 30
4 X 36
4 X 8
4x16
4x24x2
5 X 30
5x24





Before Purchase, Pls Contact Me , We Can Discuss The Cylinder Details .



We Can Offered The Nonstandard Cylinders.If You Need OEM Service,Please Give Us The Specification Or The Drawing Of The Cylinder In Order To Give You The Best Service&Price.(Cylinder Diameter,Pressure,Stroke,Application,Installation Method,Mounting Distance Etc).



1. Diameter Of Bore & Rod
2. Stroke
3. Mounting Style
4. Mounting Distance
5. Working Pressure
6. Ports
7. Seals
8. Special Modifications





Production Process:



Cutting Horizontal Bandsaw Hydraulic Cylinder





Application:



Truck And Trailer Automotive Lifts Mining Gas/Oil Industries
Forklifts Scissor Lifts Tractors Farm Implements
Harvesters Hay Balers Ladder Trucks Dump Trailers
Lift Gates Wheel Loaders Excavators Bulldozers
Garbage Trucks Compactors Hoist Trucks Cranes
Snow Equipment Wood Splitter Loaders Excavator





FAQ:



1. Are You Manufacturer Or A Trading Company?
We Are The Manufacturer, And Have Been In This Industry For Nearly Ten Years.


2. What's Your Payment Way?
T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.


3. How Can You Ensure The Unit’s Quality After We Put The Order?
Before The Delivery, We Will Send You Machine’s Pictures And Videos, Or You Can Come To Us To Have The Quality Checking By Yourself, Or By The Third Party Inspection Organization Contacted By Your Side.


4. We Are Afraid You Won't Deliver Us The Machine After We Pay You The Money.
Please Note Our Above Business License And Certificates. And If You Don't Trust Us, You Can Use Alibaba’s Trade Assurance Service .


5. Why Choose Your Company?
We Have Been Engaged In The Manufacturing Of Various Hydraulic Power Unit Professionally Nearly 10 Years With Hundreds Of Oil Circuits, Which Can Meet The Needs Of Different Requests.
