Compact Ductile Iron Steel  Customized Hydraulic Cylinders

Compact Ductile Iron Steel Customized Hydraulic Cylinders

  • High Light

    ISO8062 Customized Hydraulic Cylinders

    ,

    Ductile iron compact hydraulic cylinder

    ,

    Ductile iron steel compact hydraulic cylinder

  • Type
    Custom Hydraulic Cylinder
  • Bore Size
    100mm
  • Rod Size
    50mm
  • Stroke
    419mm
  • Installation Distance
    787mm
  • Test Pressure
    21Mpa
  • Working Pressure
    16Mpa
  • Place of Origin
    Jiangsu,China
  • Brand Name
    JSRUIYA
  • Certification
    ISO 9000:2016
  • Model Number
    custom hydraulic cylinder 100×50×787×419
  • Minimum Order Quantity
    10pcs
  • Price
    Negotiation
  • Packaging Details
    Wooden box, iron box
  • Delivery Time
    15-50 Days
  • Payment Terms
    Western Union, T/T, L/C
  • Supply Ability
    30,000 Pieces/Year

Compact Ductile Iron Steel Customized Hydraulic Cylinders

Custom made small compact short stroke single acting hydraulic cylinder



Small hydraulic cylinders are characterized by their small size and short stroke length. Stroke length is the distance that the hydraulic piston reaches at its fully extended state, and in some cylinders such as telescopic hydraulic cylinders, the stroke length of a piston can be much longer than the size of the cylinder. Small hydraulic cylinders, like other cylinders have the same main parts: the outer cylinder barrel and the hydraulic piston and piston rod which is used to force the piston through the cylinder.



JSRUIYA Hydraulics has extensive experience in building custom cylinders and other hydraulic components.We build anything from single,double acting or piston cylinders.



Compact Ductile Iron Steel  Customized Hydraulic Cylinders 0



Product Description:



Type Custom Hydraulic Cylinder
Application Agricultural equipment,Mining machinery,Construction machinery,Forest machinery
Processing casting and machining
Material Ductile iron and steel
Tolernace Controlled by ISO 8062 CT4-6
Design Support Pro-E, UG,SolidWorks,AutoCad, PDF
Quality Control Material, Dimension,Performance,inside defects,Balance test
Standard ASTM,DIN,JIS,ISO,GB standards

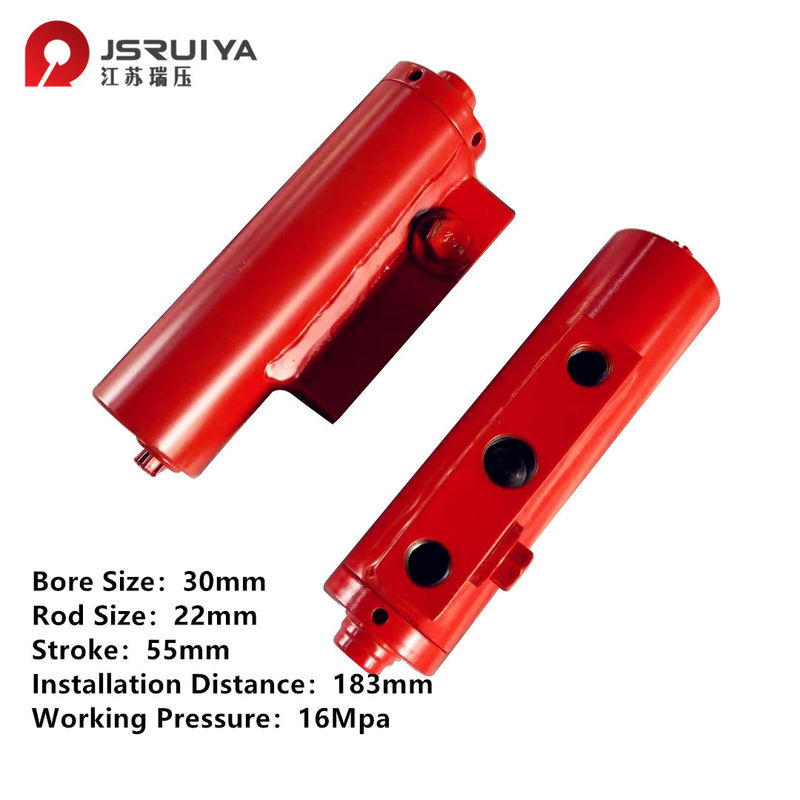

Bore Size:30mm×Rod Size:22mm×Stroke:55mm×Installation Distance:183mm

Compact Ductile Iron Steel  Customized Hydraulic Cylinders 1



We can manufacture according to the detailed drawings you offer. If you don’t have drawings, you can tell us your specific requirements. Our engineers will design production plans to meet your exact expectations.
