5 Ton Dump Truck 4-Stage Hydraulic Cylinder 16MPa 1500mm Stroke
Place of Origin:China
Brand Name:Guoyue
Certification:CE
Model Number:customized
Minimum Order Quantity:1 piece
Payment Terms:T/T
Supply Ability:2500 Ton/Tons Per Year
Product Details
Highlight:
5 ton dump truck hydraulic cylinder
,4-stage hydraulic cylinder 16MPa
,hydraulic cylinder 1500mm stroke
Product Name:
Hydraulic Cylinder
Power:
16MPa
Dimension(L*W*H):
1775*195*195mm
Rod Diameter:
56mm
Maximum Stroke:
1500mm
Outer Tube Diameter:
102mm
Inner Tube Diameter:
80mm
Overall Length:
Customized
Material:
Steel, Customized
Surface Treatment Of Piston Rod:
Hard Chrome Plated
Pressure:
Customized
Working Medium:
Hydraulic Oil
Technique:
Forging&Casting
Minimum Oeder Quantity:
1PCS
Certifications:
CE
Piston Seal:
Urethane Seal
Seals:
Chinese
Usage:
Metallurgical Industry Machinery
Ship Cost:
Not Include
Product Description
OEM Hydraulic Cylinder for 5 Tons Dump Truck - 4 Stage Telescopic Design
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Hydraulic Cylinder |
| Power | 16MPa |
| Dimension (L*W*H) | 1775*195*195mm |
| Rod Diameter | 56mm |
| Maximum Stroke | 1500mm |
| Outer Tube Diameter | 102mm |
| Inner Tube Diameter | 80mm |
| Overall Length | Customized |
| Material | Steel, Customized |
| Surface Treatment | Hard Chrome Plated |
Premium Quality Construction
- Internals: Cylinder barrel meets GUOYUE EU/US metallurgical standard CD250 structure with 45#, 42CrMo, or 27SiMn materials. Bore honed to H8 precision (Ra<0.4μm). All critical components made of 45# steel.
- Buffering: Multiple buffering options including fixed and floating buffer structures for effective deceleration.
- Welding: 100% ultrasonic impact treatment on all pressure-bearing welds (≥90% stress removal) for enhanced fatigue strength.
- Sealing: Premium imported seals from (Japan), Trelleborg (Sweden), Merkel (Germany), and GP.
- Testing: Complies with GB/T15622-2005 and Q/GAKY014-2023 standards. Includes test reports and certificates.
- Warranty: 1-year warranty covering defects from design or manufacturing.
Key Advantages
This 4-stage telescopic hydraulic cylinder delivers maximum extension with minimal space requirements. Engineered for high load capacity (5-ton rating), smooth operation, and durable construction with leak-proof seals. Precision manufacturing ensures reliability and long service life in demanding transportation applications.
Applications
Ideal for dump trucks, tipping trailers, refuse vehicles, hydraulic elevators, agricultural equipment, and construction machinery. Particularly suited for waste management, mining, and logistics operations requiring compact yet powerful lifting solutions.
Additional Specifications
Seals: Parker, Merkel, , Hallite
Paint Colors: Red, Grey, Yellow, Black (customizable)
Materials Available: St52, CK45, 4140, Duplex2205, Stainless Steel 304/316
Certifications: ABS, Lloyds, SGS
Packaging: Bubble-wrap with wooden case protection
Structure Types: Piston, Plunger, Telescopic
Power Source: Hydraulic & Pneumatic
Brand: Guoyue
Samples: Available
Paint Colors: Red, Grey, Yellow, Black (customizable)
Materials Available: St52, CK45, 4140, Duplex2205, Stainless Steel 304/316
Certifications: ABS, Lloyds, SGS
Packaging: Bubble-wrap with wooden case protection
Structure Types: Piston, Plunger, Telescopic
Power Source: Hydraulic & Pneumatic
Brand: Guoyue
Samples: Available

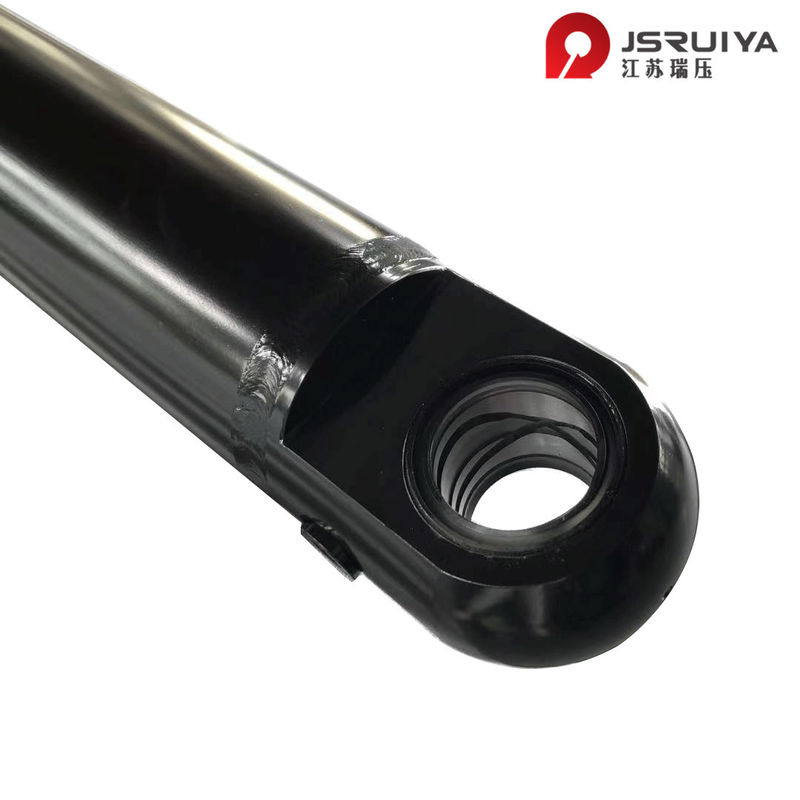

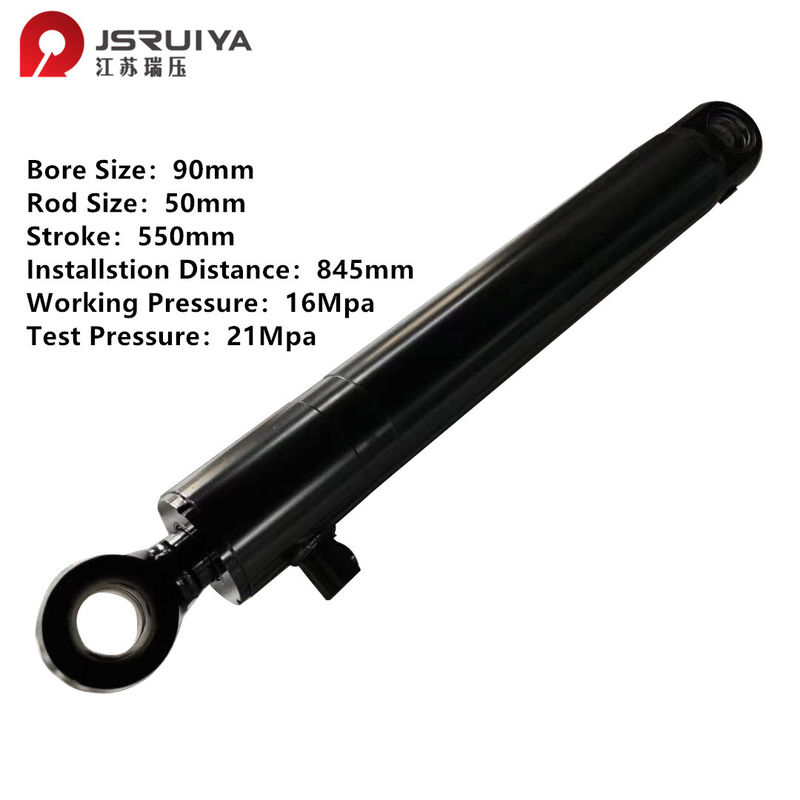

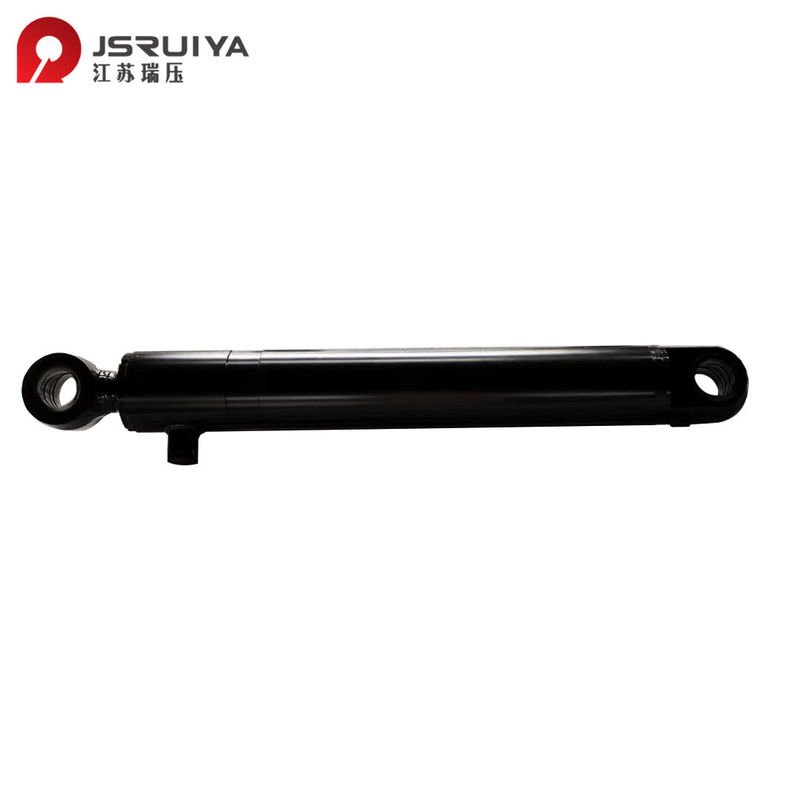

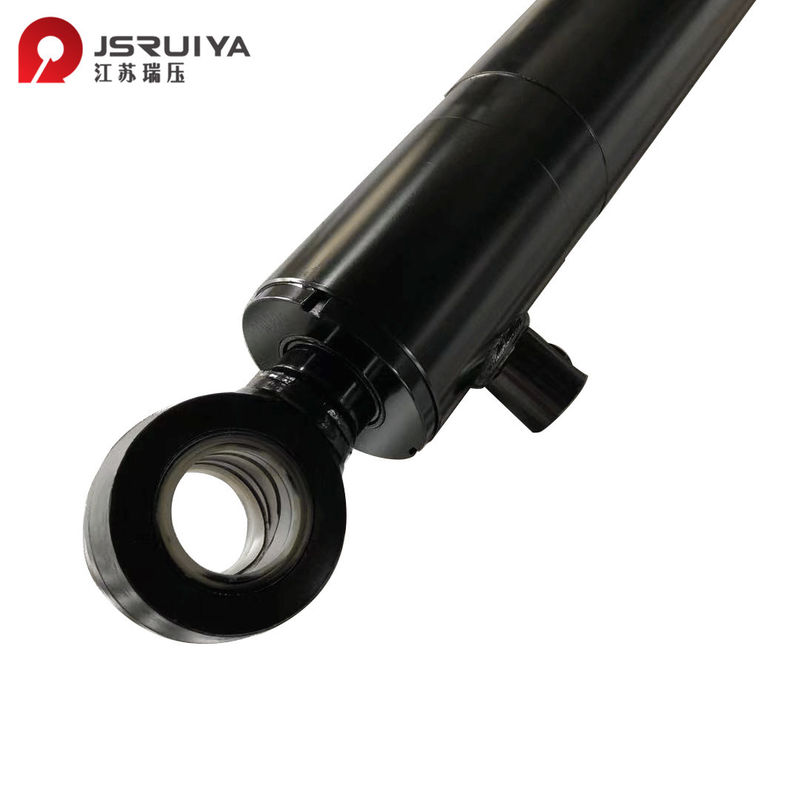

Product Visuals
Manufacturer Information
Location: Jiangsu, China (Est. 2022)
Markets Served: Domestic (40%), Africa (10%), North America (10%), South America (8%), Southeast Asia (6%), Western Europe (5%), and other global markets
Quality Assurance: Pre-production samples and final inspection before shipment
Product Range: Hydraulic cylinders including single-acting, double-acting, and construction machinery models
Company Profile: Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co., Ltd. is a technology enterprise with 50 million yuan registered capital, specializing in R&D, production, and service of hydraulic solutions.
Services: FOB delivery terms, USD/EUR payments accepted via T/T, English/Chinese support
