25MPa Single Acting Hydraulic Cylinder 70mm Rod Diameter Custom Stroke

Name: 25MPa Single Acting Hydraulic Cylinder 70mm Rod Diameter Custom Stroke
Brand: Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd
SKU: customized
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Guoyue
Model Number:	customized
MOQ:	1 piece
Price:	USD1,000-10000/pieces
Delivery Time:	12~60 days depends on products type
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Hydraulic Cylinder

Power:

25MPa

Dimension(L*W*H):

780*170*170mm

Rod Diameter:

70mm

Maximum Stroke:

Customized

Outer Tube Diameter:

125mm

Inner Tube Diameter:

100mm

Overall Length:

Customized

Type:

Single Acting Cylinder

Material:

Steel, Customized

Pressure:

Customized

Working Medium:

Hydraulic Oil

Technique:

Forging&Casting

Minimum Oeder Quantity:

1PCS

Certifications:

Piston Seal:

Urethane Seal

Seals:

Chinese

Usage:

Metallurgical Industry Machinery

Ship Cost:

Not Include

Packaging Details:

Standard Export Package

Supply Ability:

2500 Ton/Tons Per Year

Highlight:

25MPa single acting hydraulic cylinder

70mm rod hydraulic cylinder

custom stroke hydraulic cylinder

Product Description

High-Pressure Molding Actuators Precision-Forming Hydraulic Cylinders

Product Specifications

Attribute	Value
Product name	Hydraulic Cylinder
Power	25MPa
Dimension (L×W×H)	780×170×170mm
Rod Diameter	70mm
Maximum Stroke	Customized
Outer Tube Diameter	125mm
Inner Tube Diameter	100mm
Overall Length	Customized
Type	Single Acting Cylinder
Material	Steel, Customized

Product Description

Our high-pressure molding actuators are precision-engineered hydraulic cylinders designed for industrial shapers, featuring a telescopic multi-stage design for optimal performance in confined spaces.

Key Features

Premium Construction: Tube follows GUOYUE CD250 style with material options including 45#, 42CrMo, or 27SiMn steel
Precision Machining: Holes ground to H8 with surface roughness Ra under 0.4 μm
Durable Components: Head, base, ears, and piston made from 45# steel (no cast iron or cast steel)
Safety Features: Optional fixed or floating bumpers for controlled deceleration
Quality Welds: Ultrasound-tested heavy-load welds for reduced stress and extended lifespan
Premium Seals: Only uses top-tier seals from NOK (Japan), Trelleborg (Sweden), Merkel and GP (Germany)
Rigorous Testing: Each cylinder tested to GB/T15622-2005 and Q/GAKY014-2023 standards
Reliability Guarantee: 1-year warranty from shipment date

Technical Advantages

Our telescopic multi-stage hydraulic cylinders combine strength with precision. The robust steel construction prevents bending while premium seals ensure leak-free operation. The telescopic design provides extended reach while maintaining a compact footprint, making these cylinders ideal for space-constrained industrial applications.

Application Scenarios

These high-performance hydraulic cylinders excel in various industrial settings including plastics molding (creating uniform density products), metalworking (forming intricate parts with precise force control), and across multiple industries including engineering machinery, mining, shipping, metallurgy, water conservancy, offshore operations, and agriculture.

Additional Specifications

Seal Options: Parker, Merkel, NOK, Hallite
Paint Colors: Red, Grey, Yellow, Black (customizable)
Material Options: St52, CK45, 4140, Duplex2205, Stainless Steel 304/316
Certifications: ABS, Lloyds, SGS
Packaging: Bubble-wrap with wooden case protection
Structure Types: Piston Type, Plunger Type, Telescopic Type
Power Source: Hydraulic & Pneumatic
Brand: Guoyue
Samples: Available

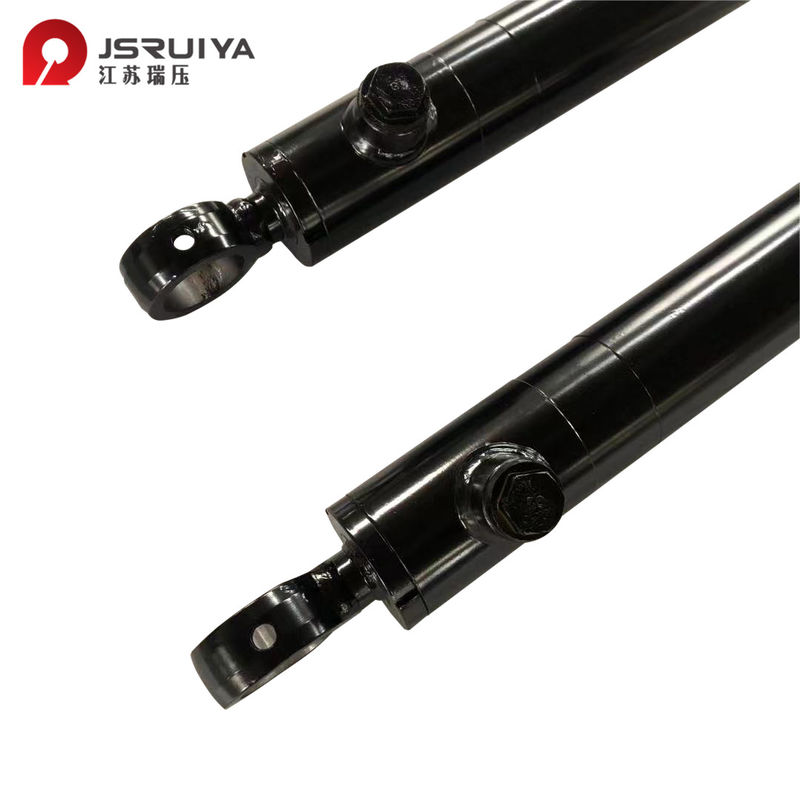

Product Images
