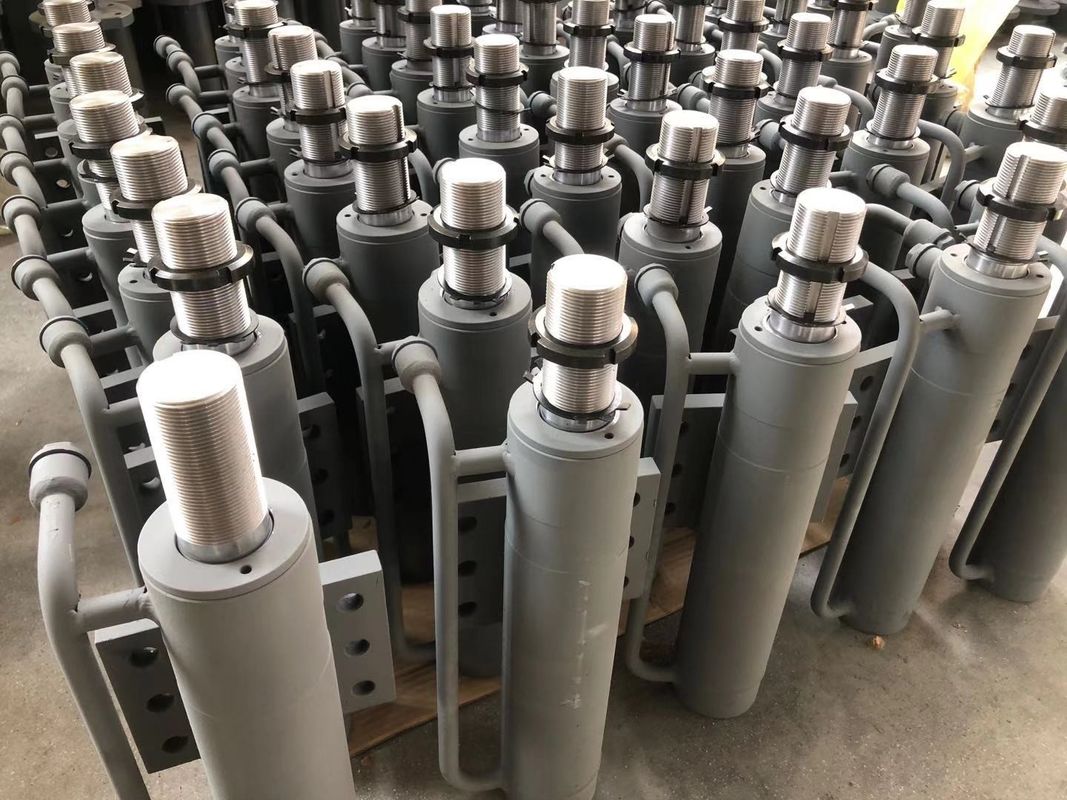

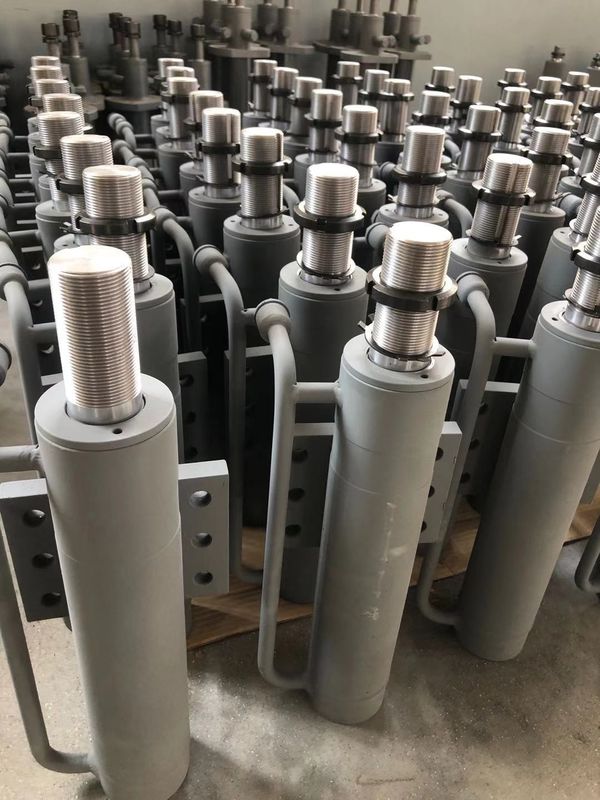

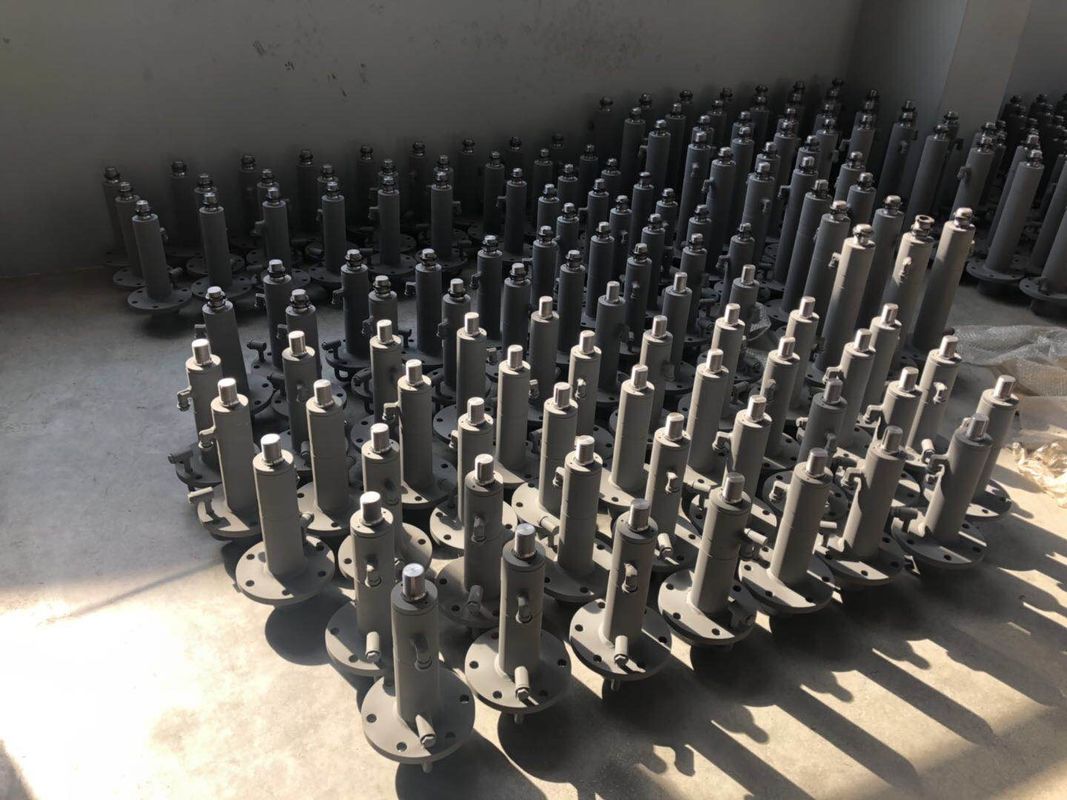

3x10 inch stroke Hydraulic Cylinder
Welded cylinders are popular for their compact design and are often used in mobile applications or in applications with significant space constraints. Unlike tie-rod cylinders, welded cylinders have the end caps welded directly onto the barrel, resulting in a durable, uncomplicated and economical design. The trade-off is that these cylinders are more difficult to disassemble for maintenance. JSRUIYA offers several ends on our standard range of welded cylinders: pin-eye, Clevis, threaded and through-hole are some. We consider welded cylinders to be one of our primary areas of expertise.
Technical Parameters:
Product Name | Factory Design Customized Hydraulic Cylinder |
Rod Size | 18 mm - 2000 mm(0.71inch - 78.74 inch) |
bore Size | 40-200mm(1.57 inch - 7.87inch) |
Stroke | 10-15000mm(0.39 inch - 590.55inch) |
Tipping Weight | 1 Ton - 100 Ton |
Working Pressure | 2500psi - 8000psi(3000psi , 5000psi available) |
Material | Carbon Steel/Cast Iron /Aluminum/Hard chrome plated Alloy Steel |
Barrel/Tube | 1. Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc. |
2. Technology: cold drawn ,hot rolled,forged | |
3. Surface Roughness: R0.16-0.32 | |
4. Choose by different working condition and requirements. | |
Piston rod | 1. Material: SAE1045(45#),35CrMo,42CrMo4,etc. |
2. Technology: Quenched and tempered | |
3. Surface treatment: chrome plated, nickel-chromium plated, nitriding, nitrocarburizing | |
Seal kits | 1. Hallite, NOK, SKF, Parker, Hercules,Trelleborg,China made,Taiwan made |
2. Choose by different working condition and requirements. | |
Hydraulic Cylinder Types | Single Acting Hydraulic Cylinder,Double Acting Hydraulic Cylinder,Telescopic Hydraulic Cylinder,Welded Hydraulic Cylinder,Tie-Rod Hydraulic Cylinder,Bolted Hydraulic Cylinder,Re-phasing Systems Hydraulic Cylinder,Double Rod End Hydraulic Cylinder |
Mounting Style | Earrings, flange, foot mounting, trunnion, cross tube, etc |
Test | Static balance test |
Surface treatment | Painting/sand blasting/oiled,Follow customers' requirement. |
Application | Excavator boom arm bucket,Construction,Machinery,Agricultural Machine,Lift gate & Snow plow,Trash Compactors,etc |
Hydraulic Cylinder Series Available:
Welded Hydraulic Cylinders
Tie Rod Hydraulic Cylinder
Telescopic Hydraulic Cylinder
Excavator Hydraulic Cylinder
Tractor Loader Hydraulic Cylinder
Forklift Hydraulic Cylinder
Snow Plow Cylinder
Agricultural Hydraulic Cylinders
Hydraulic Steering Cylinder
Long Stroke Hydraulic Cylinder
Small Bore Hydraulic Cylinder
Custom Hydraulic Cylinders
Double Acting Hydraulic Cylinder
Garbage Truck Hydraulic Cylinders
Aluminum Hydraulic Cylinder
Before Purchase, Pls Contact Me , We Can Discuss The Cylinder Details .
We Can Offered The Nonstandard Cylinders.If You Need OEM Service,Please Give Us The Specification Or The Drawing Of The Cylinder In Order To Give You The Best Service&Price.(Cylinder Diameter,Pressure,Stroke,Application,Installation Method,Mounting Distance Etc).
1. Diameter Of Bore & Rod |
2. Stroke |
3. Mounting Style |
4. Mounting Distance |
5. Working Pressure |
6. Ports |
7. Seals |
8. Special Modifications |
Production Process:
Application:
Truck And Trailer | Automotive Lifts | Mining | Gas/Oil Industries |
Forklifts | Scissor Lifts | Tractors | Farm Implements |
Harvesters | Hay Balers | Ladder Trucks | Dump Trailers |
Lift Gates | Wheel Loaders | Excavators | Bulldozers |
Garbage Trucks | Compactors | Hoist Trucks | Cranes |
Snow Equipment | Wood Splitter | Loaders | Excavator |
FAQ:
1. Are You Manufacturer Or A Trading Company?
We Are The Manufacturer, And Have Been In This Industry For Nearly Ten Years.
2. What's Your Payment Way?
T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.
3. How Can You Ensure The Unit’s Quality After We Put The Order?
Before The Delivery, We Will Send You Machine’s Pictures And Videos, Or You Can Come To Us To Have The Quality Checking By Yourself, Or By The Third Party Inspection Organization Contacted By Your Side.
4. We Are Afraid You Won't Deliver Us The Machine After We Pay You The Money.
Please Note Our Above Business License And Certificates. And If You Don't Trust Us, You Can Use Alibaba’s Trade Assurance Service .
5. Why Choose Your Company?
We Have Been Engaged In The Manufacturing Of Various Hydraulic Power Unit Professionally Nearly 10 Years With Hundreds Of Oil Circuits, Which Can Meet The Needs Of Different Requests.
