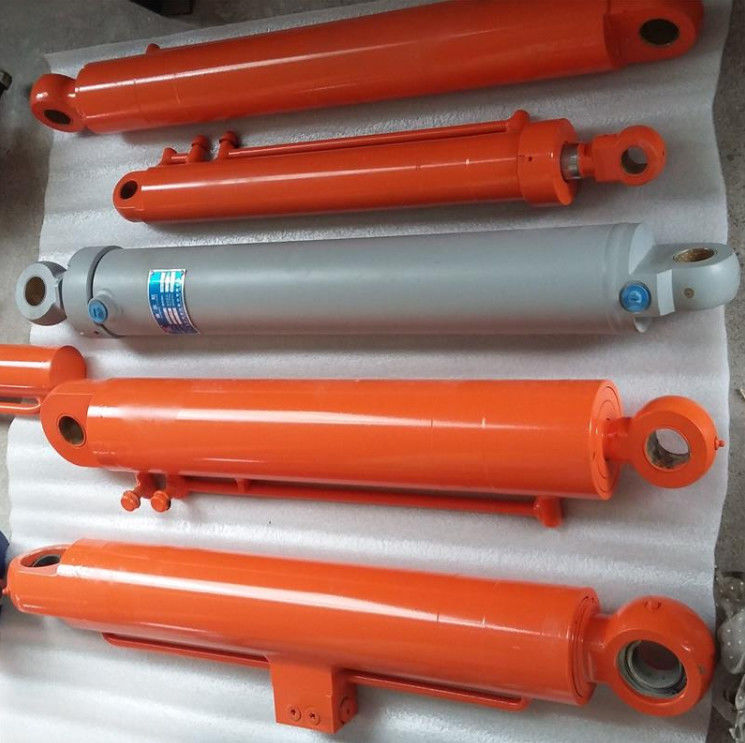

Solid Waste Equipment Custom Built Hydraulic Cylinder 18 - 200mm Rod

Solid Waste Equipment Custom Built Hydraulic Cylinder 18 - 200mm Rod
Solid Waste Equipment Custom Built Hydraulic Cylinder 18 - 200mm Rod Solid Waste Equipment Custom Built Hydraulic Cylinder 18 - 200mm Rod

Large Image :  Solid Waste Equipment Custom Built Hydraulic Cylinder 18 - 200mm Rod

Product Details:
Place of Origin: Jiangsu,China
Brand Name: JSRUIYA
Certification: ISO 9000:2016
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden box, iron box
Delivery Time: 15-45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000 Pieces/Year

Solid Waste Equipment Custom Built Hydraulic Cylinder 18 - 200mm Rod

Description
Special Cylinder Type: Custom Hydraulic Cylinder Business Type: Manufacturer
Bore: 40-200mm Rod: 18-200mm
Stroke: 10-15000mm Working Pressure: 2500-8000PSI
Piston Speed: Maximum 1m/s Warranty: 1 Year
High Light:

double hydraulic cylinder

,

hydro cylinders

Solid Waste Equipment Hydraulic Cylinder


Hydraulic cylinders for waste management Vehicle-mounted rear-loading compactors should have a rugged construction that collects waste and garbage from different locations and transports them to the dumping site. The device should be operated by a hydraulic system. In any case, proper distribution of the load on the front and rear axles should be achieved without overloading the shaft.

Garbage should be pressed into the compactor through a hydraulic cylinder in a fixed waste application. The mechanism should be able to fill the entire volume with compacted waste. Garbage should be removed by an ejector plate managed by a hydraulic cylinder.



Hydraulic cylinder used for waste compression station equipment

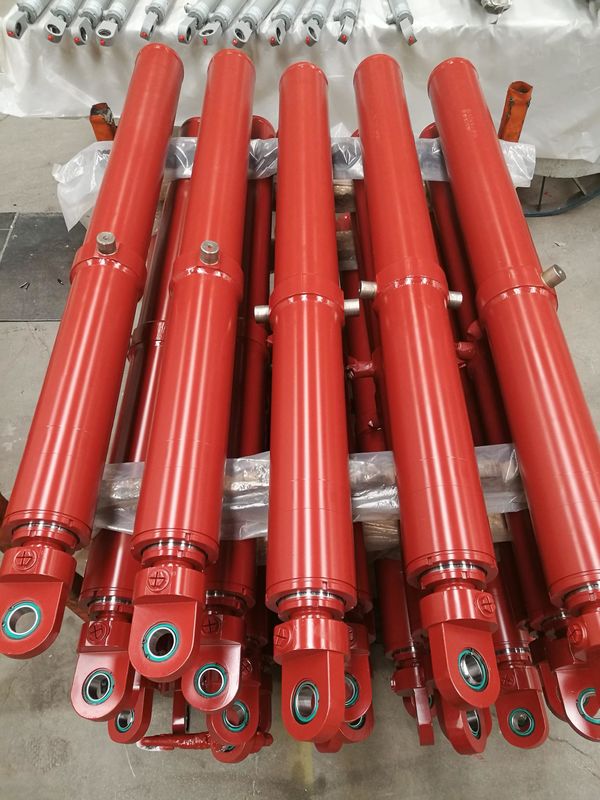

Solid Waste Equipment Custom Built Hydraulic Cylinder 18 - 200mm Rod 0



Product Description

Application: Various garbage truck
Coating: All tubes are chrome plated
Working pressure: 5MPa-25MPa
Bore size: 40mm-255mm
Mounting Type: Earring-trunnion, double trunnion, double earring(eye end)
Plunger: 20# 45# steel with high frequency quenching
Certification: ISO9000: 2015
Warranty: One year after shipping arrival
Working temperature: 30°C to 80°C





Typical waste applications include:

1. Bore Diameter:140
2. Rod Diameter:60
3. Stroke:590
4. Work Pressure:140 bar
5. Mounting:front rectanglar flange
6. Application:for industry/farm machine



Solid Waste Equipment Hydraulic Cylinders Hydraulic cylinders are widely used in various sanitation vehicles, urban cleaning vehicles, and garbage trucks. The series includes push plate hydraulic cylinders, slide hydraulic cylinders, scraper hydraulic cylinders, and lift cylinders. There are two types, single piston rod double acting cylinder and plunger cylinder. It has the characteristics of reasonable structure, stable work, convenient installation and disassembly, and convenient maintenance. We can also design special models according to customer requirements.



Hydraulic Cylinder Series Available:

Engineering Oil Cylinder Series;
Metallurgy Oil Cylinder Series;
Turn Over Plow Oil Cylinder Series;
Reaper Oil Cylinder Series;
Excavator Oil Cylinder Series;
Quality Gurantee And Service;
One Year Quality Gurantee;
Complete After-Sale Services;



We Can Offered The Nonstandard Cylinders.If You Need OEM Service,Please Give Us The Specification Or The Drawing Of The Cylinder In Order To Give You The Best Service&Price.(Cylinder Diameter,Pressure,Stroke,Application,Installation Method,Mounting Distance Etc).



JSRUIYA Hydraulic Machinery Promise:

1.100% Quality Assurance, Develop And Manufacture Follow Original Ones;
2. Reasonable Stock And Timely Delivery;
3. Quick Response Within 24 Hours ;
4. Long-Term Strong And Steady Supplying Ability;
5. One-To-One Products Factory.Ensure The Best Quality;
6. The First-Class Logistics & Ensure That Your Goods Arrived Safely;
7. Goods Will Be Packed Safe & Carefully;
8. Excellent After-Sales Service.Track Usage.Positive Feedback Response;
9.Establish Inquiry Library For You, We Are Your Professional Sourcing Consultant.


Mechanical Precision Hydraulic Cylinders



JSRUIYA Hydraulic Machinery Have More Than One Decade Experience In Supplying Custom Hydraulic Cylinders With Provided Drawings Or Samples, Or If You Could Provide Following Specification:

1. Diameter Of Bore & Rod
2. Stroke
3. Mounting Style
4. Mounting Distance
5. Working Pressure
6. Ports
7. Seals
8. Special Modifications



Certainly, You Can Provide Drawing And Product Photos So That We Can Understand Your Meaning More Conveniently, Or You Can Also Send Us Sample And We Produce For You According To Your Sample.



Mounting Way:

1. Front And End Of Earring
2. Head Fixed With Flange
3. End Fixed With Flange
4. Vertical To Axis Foot Type
5. Middle Fixed With Pendulum Shift
6 . End With Single Earring







Production Process:

Cutting Horizontal Bandsaw Hydraulic Cylinder



Quality Control:

1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection
2. Process Inspection: First Inspection, Random Inspection, Handover Inspection
3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test
4. Type Inspection:Every Piece Of Hydraulic Cylinder Is Tested And Will Send Out Only After They Are Pasted Each Test.



Package&Delivery

1. Each One Packed In Carton Case, Then Put Several Carton Case In The Wooden Case, Supported By The Tray.
2. Depends On The Customers' Requirements.
3. Shipped In 30 Days After 30% Deposit , The Rest Should Be Paid Before Delivery.



Warranty And After-Sale Services:

1.We Provide The Replacement Parts For Free Due To Quality Problems Under Proper Operation Within Warranty Period.
2.After Warranty Period, We Will Charge The Replacement Parts At Cost Price.
3.Consultant Services For Whole Machine Life, And 24 Hours Technical Support By Email;



Payment:

T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.



Application:

• Truck And Trailer •Automotive Lifts •Mining •Gas And Oil Industries •Forklifts

• Scissor Lifts •Tractors •Farm Implements •Harvesters •Hay Balers

• Ladder Trucks •Dump Trailers •Lift Gates •Wheel Loaders •Excavators

• Bulldozers •Garbage Trucks •Compactors •Hoist Trucks •Cranes

• Snow Equipment •Wood Splitter



FAQ:

1. Are You Manufacturer Or A Trading Company?
We Are The Manufacturer, And Have Been In This Industry For Nearly Ten Years.


2. What's Your Payment Way?
T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.


3. How Can You Ensure The Unit’s Quality After We Put The Order?
Before The Delivery, We Will Send You Machine’s Pictures And Videos, Or You Can Come To Us To Have The Quality Checking By Yourself, Or By The Third Party Inspection Organization Contacted By Your Side.


4. We Are Afraid You Won't Deliver Us The Machine After We Pay You The Money.
Please Note Our Above Business License And Certificates. And If You Don't Trust Us, You Can Use Alibaba’s Trade Assurance Service .


5. Why Choose Your Company?
We Have Been Engaged In The Manufacturing Of Various Hydraulic Power Unit Professionally Nearly 10 Years With Hundreds Of Oil Circuits, Which Can Meet The Needs Of Different Requests.
