Single Acting Hydraulic Cylinder 125mm OD 100mm ID Custom Stroke

Place of Origin:China
Brand Name:Guoyue
Certification:CE
Model Number:customized
Minimum Order Quantity:1 piece
Payment Terms:T/T
Supply Ability:2500 Ton/Tons Per Year
Product Details
Highlight:

Single acting hydraulic cylinder 125mm OD

,

Custom stroke hydraulic cylinder

,

Hydraulic cylinder 100mm ID
Product Name: Hydraulic Cylinder
Maximum Stroke: Customized
Outer Tube Diameter: 125mm
Inner Tube Diameter: 100mm
Overall Length: Customized
Type: Single Acting Cylinder
Material: Steel, Customized
Surface Treatment Of Piston Rod: Hard Chrome Plated
For Pipe Size: Customized
Usage: Metallurgical Industry Machinery
Pressure: Customized
Working Medium: Hydraulic Oil
Technique: Forging&Casting
Minimum Oeder Quantity: 1PCS
Certifications: CE
Piston Seal: Urethane Seal
Seals: Chinese
Ship Cost: Not Include
Product Description
OEM 280 100-130 Rotary Expansion and Contraction Cylinder for Single Cylinder Hydraulic Cone Crusher Linear Telescopic
Product Specifications
Product Name Hydraulic Cylinder
Maximum Stroke Customized
Outer Tube Diameter 125mm
Inner Tube Diameter 100mm
Overall Length Customized
Type Single Acting Cylinder
Material Steel, Customized
Surface Treatment Of Piston Rod Hard Chrome Plated
For Pipe Size Customized
Usage Engineering Machinery/Industrial Equipment
Product Description

This OEM 280 100-130 Rotary Expansion and Contraction Cylinder is designed for single cylinder hydraulic cone crushers with linear telescopic action. The tube follows GUOYUE CD250 style specifications.

Key Features
  • Tube Material Options: 45#, 42CrMo, or 27SiMn steel
  • Precision Machining: Hole ground to H8 with surface roughness Ra under 0.4 μm
  • Component Materials: Head, base, ears, and piston made from 45# steel (no cast iron or cast steel)
  • Slow-Down System: Choice of fixed or floating bumpers for controlled deceleration
  • Welding Quality: Ultrasound testing on all heavy-load welds for stress reduction and longevity
  • Premium Seals: Only uses top-quality seals from Trelleborg (Sweden), Merkel and GP (Germany)
  • Rigorous Testing: Each cylinder tested to GB/T15622-2005 and Q/GAKY014-2023 standards
  • Warranty: 1-year coverage from shipment date with free repair/replacement for manufacturing defects
Performance Advantages

This robust cylinder features thick steel construction and a hard chrome-plated rod for exceptional durability. The multi-stage telescopic design provides high extension while maintaining compact retracted dimensions. Precision seals ensure leak-free operation even under demanding conditions.

Applications

Ideal for various industrial applications including:

  • Cone crushers in quarries and mining operations
  • Concrete recycling plants
  • Engineering machinery
  • Mining equipment
  • Shipping and metallurgical applications
  • Water conservancy projects
  • Offshore and agricultural machinery
Additional Specifications
Seal Options Parker, Merkel, Hallite, etc.
Paint Colors Red, Grey, Yellow, Black, etc.
Material Options St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc.
Certifications ABS, Lloyds, SGS, etc.
Package Bubble-wrap packing in wooden case
Core Components Bearing, Pressure vessel, Pump
Standard/Nonstandard Nonstandard
Structure Piston Type, Plunger Type, Telescopic Type
Power Hydraulic & Pneumatic
Brand Guoyue
Samples Available

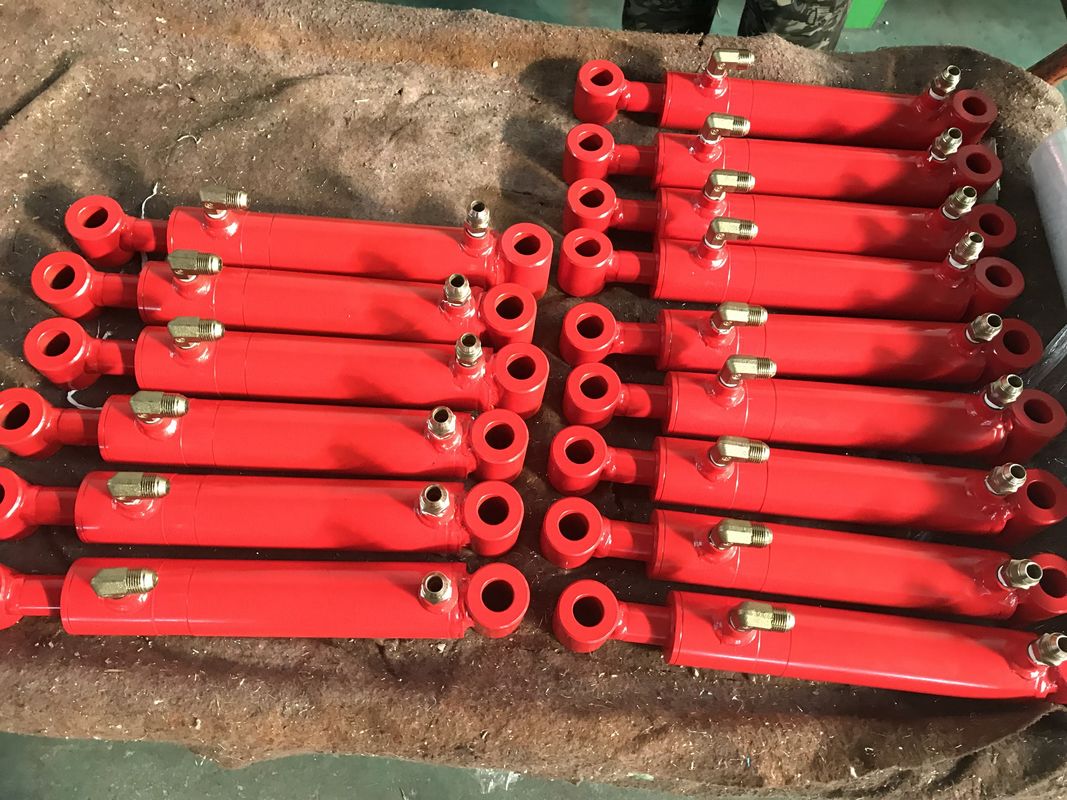

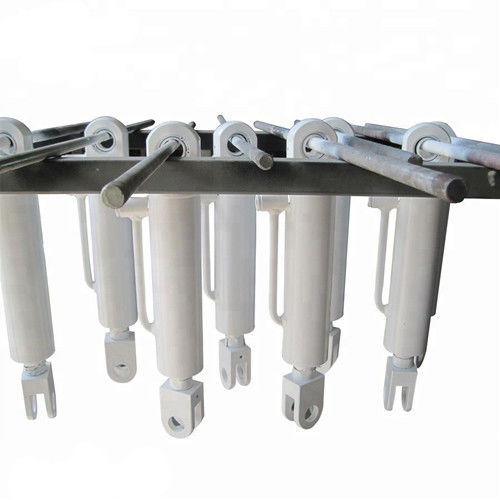

Product Images
Single Acting Hydraulic Cylinder 125mm OD 100mm ID Custom Stroke 0 Single Acting Hydraulic Cylinder 125mm OD 100mm ID Custom Stroke 1 Single Acting Hydraulic Cylinder 125mm OD 100mm ID Custom Stroke 2 Single Acting Hydraulic Cylinder 125mm OD 100mm ID Custom Stroke 3 Single Acting Hydraulic Cylinder 125mm OD 100mm ID Custom Stroke 4 Single Acting Hydraulic Cylinder 125mm OD 100mm ID Custom Stroke 5 Single Acting Hydraulic Cylinder 125mm OD 100mm ID Custom Stroke 6 Single Acting Hydraulic Cylinder 125mm OD 100mm ID Custom Stroke 7 Single Acting Hydraulic Cylinder 125mm OD 100mm ID Custom Stroke 8
Company Information
  • Location: Jiangsu, China (established 2022)
  • Markets: Domestic (40%), Africa (10%), North America (10%), South America (8%), Southeast Asia (6%), Western Europe (5%), and other global markets
  • Employees: 51-100 in our office
  • Quality Assurance: Pre-production samples and final inspection before shipment
  • Product Range: Hydraulic cylinders including single-acting, double-acting, and construction machinery hydraulic cylinders
  • Company Profile: Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co., Ltd. is a technology enterprise with 50 million yuan registered capital, specializing in R&D, design, production, and service
  • Services: FOB delivery terms, USD/EUR payment accepted, T/T payment type, English/Chinese language support
