Double Acting Hydraulic Cylinder 30MPa 600mm Stroke
Place of Origin:China
Brand Name:Guoyue
Certification:CE
Model Number:customized
Minimum Order Quantity:1 piece
Payment Terms:T/T
Supply Ability:2500 Ton/Tons Per Year
Product Details
Highlight:
Double Acting Hydraulic Cylinder 30MPa
,Hydraulic Cylinder 600mm Stroke
,High Pressure Hydraulic Cylinder
Product Name:
Hydraulic Cylinder
Pressure:
Customized
Weight:
175
Power:
30MPa
Dimension(L*W*H):
1100*230*270mm
Rod Diameter:
100mm
Maximum Stroke:
600mm
Outer Tube Diameter:
168mm
Inner Tube Diameter:
140mm
Material:
Customized
Working Medium:
Hydraulic Oil
Technique:
Forging&Casting
Minimum Oeder Quantity:
1PCS
Certifications:
CE
Piston Seal:
Urethane Seal
Seals:
Chinese
Usage:
Metallurgical Industry Machinery
Ship Cost:
Not Include
Product Description
Large Double Acting Hydraulic Cylinder
Product Specifications
| Attribute | Value |
|---|---|
| Product name | Hydraulic Cylinder |
| Pressure | 1MPa |
| Weight | 175kg |
| Power | 30MPa |
| Dimension (L*W*H) | 1100*230*270mm |
| Rod Diameter | 100mm |
| Maximum Stroke | 600mm |
| Outer Tube Diameter | 168mm |
| Inner Tube Diameter | 140mm |
| Material | Customized |
Product Description
Our OEM hot-selling large double-acting hydraulic cylinder is designed for superior performance in demanding industrial applications. This booster and pressure-holding cylinder delivers exceptional reliability and durability.
Key Features
- Premium Construction: Tube follows GUOYUE CD250 style with options for 45#, 42CrMo, or 27SiMn steel
- Precision Engineering: Hole ground to H8 with surface roughness Ra under 0.4 μm
- Durable Components: Head, base, ears, and piston made from 45# steel (no cast iron/steel)
- Safety Features: Choice of fixed or floating bumpers for controlled deceleration
- Quality Welds: All heavy-load welds undergo ultrasound testing for stress reduction
- Premium Seals: Only uses top-tier seals from (Japan), Trelleborg (Sweden), Merkel and GP (Germany)
- Rigorous Testing: Each cylinder tested to GB/T15622-2005 and Q/GAKY014-2023 standards
- Reliability Guarantee: 1-year warranty from shipment date
Performance Advantages
This robust hydraulic cylinder features thick steel construction with a hardened rod for maximum strength and resistance to bending. The premium sealing system prevents oil leaks while providing smooth bidirectional operation (push/pull). Designed for efficiency, it delivers powerful performance while maintaining energy savings.
Key Benefits:
- Fast start-up with soft stopping capability
- Operates reliably in both hot and cold environments
- Lightweight design for easier installation and handling
- Maintains load position even when power is interrupted
- Quiet operation with enhanced safety features
- Customizable dimensions, stroke, and port configurations
- Compliant with international standards
- Simple maintenance procedures
Applications
Ideal for use in dump trucks, industrial presses, agricultural lifts, ship docks, and heavy machinery. Suitable for industries including:
- Engineering machinery
- Mining operations
- Shipping and marine applications
- Metallurgy
- Water conservancy projects
- Offshore installations
- Agricultural equipment
Additional Specifications
| Seal Options | Parker, Merkel, , Hallite, etc. |
| Paint Colors | Red, Grey, Yellow, Black (customizable) |
| Material Options | St52, CK45, 4140, Duplex2205, Stainless Steel 304/316 |
| Certifications | ABS, Lloyds, SGS |
| Packaging | Bubble-wrap with wooden case protection |
| Structure Types | Piston Type, Plunger Type, Telescopic Type |
| Power Source | Hydraulic & Pneumatic |

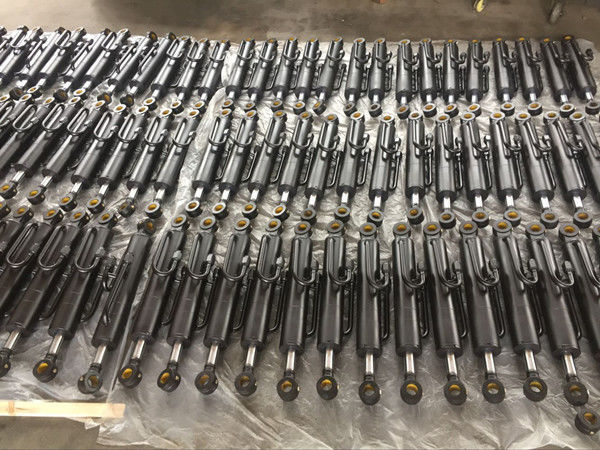

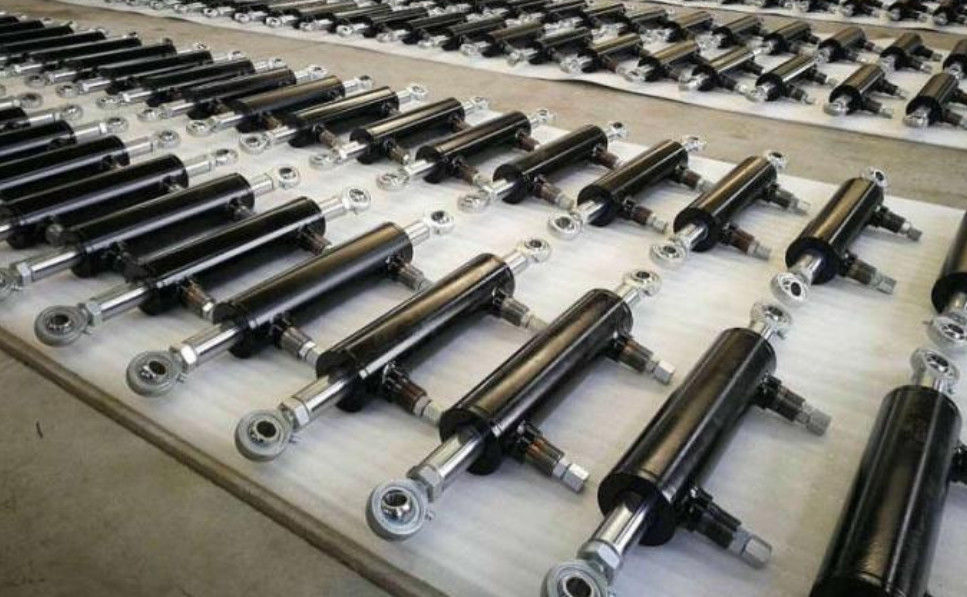

Product Images
Company Information
Based in Jiangsu, China, we serve global markets including North America, Europe, Africa, and Asia. With 51-100 employees, we specialize in hydraulic cylinder manufacturing with a focus on quality and innovation.
Quality Assurance
- Pre-production samples provided before mass production
- Final inspection conducted before shipment
Our Services
- Accepted Delivery Terms: FOB
- Payment Options: USD/EUR via T/T
- Language Support: English, Chinese
