Coal Mining Welded Hydraulic Cylinders / Single Acting Hydraulic Actuator
-
High Light
welded cross tube hydraulic cylinders
,tang Single Acting Hydraulic Actuator
,Coal Mining Welded Hydraulic Cylinders
-
PowerHydraulic
-
Body MaterialSteel,Aluminum,cold-drawn Seamless Steel,carbon Steel/stainless Steel
-
StructurePiston Cylinder,Series Cylinder,General Cylinder,Cushioned Cylinder
-
Applicable IndustriesMachinery Repair Shops,Energy & Mining,Construction Works
-
ColorRed,Black,yellow,Customer Requirement
-
Working Pressure3000PSI
-
Shaft Diameter12mm-500mm
-
ApplicationMining
-
Warranty1 Year
-
Material20#/45# Steel
-
Condition100%new
-
Place of OriginJiangsu,China
-
Brand NameJSRUIYA
-
CertificationISO 9000:2016
-
Minimum Order Quantity1PCS
-
PriceNegotiation
-
Packaging DetailsWooden box, iron box
-
Delivery Time15-45 Days
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability30,000 Pieces/Year

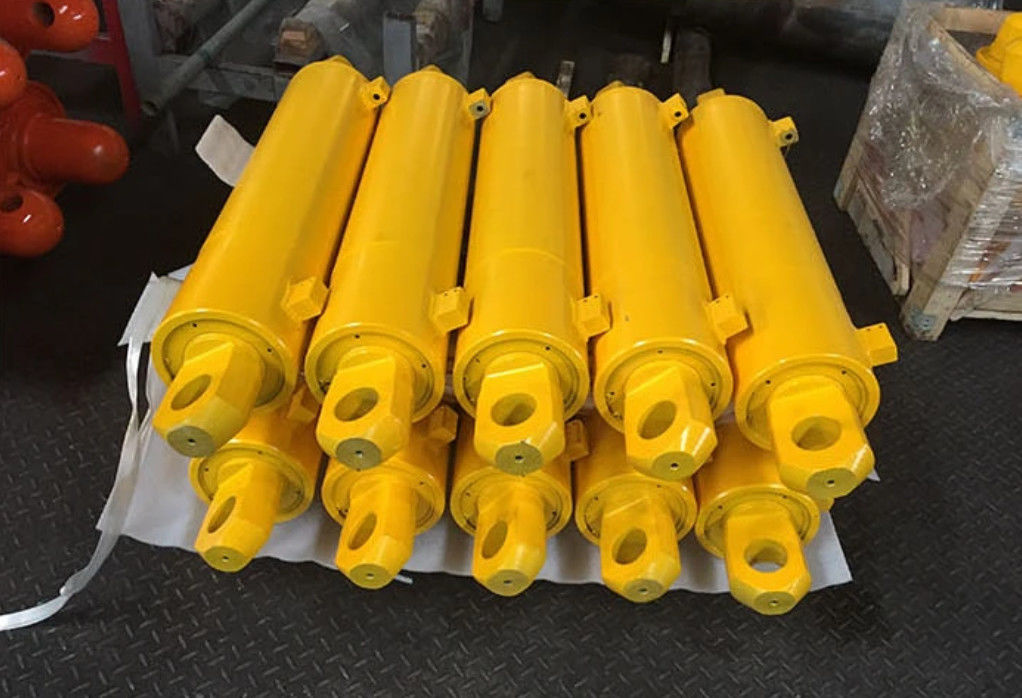

Coal Mining Welded Hydraulic Cylinders / Single Acting Hydraulic Actuator
Technical Parameters:
| Type:Coal Mining Welded Single Acting Hydraulic Cylinder |
| Rod surface treatment: Superior quality chrome plated; |
| Rod tube:High tensile steel; |
| Rod:High tensile SAE C1045, ground & polished hard chrome plated rod; |
| Tube Weldment:High tensile cold drawn tube, precision honed for extended seal life; |
| Base End:high tensile cast steel; |
| All Seals: Manufactured to US specification; |
| Ports: SAE(NPTF port or other can be available); |
| 100% hydro-pressure test; |
Features:
| 1.Neat welding,Corrosion resistant,Robust construction,Abrasion resistant. |
| 2. As the pneumatic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system; |
| 3. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite; |
| 4. The air viscosity is small, the resistance to less than the hydraulic oil; |
| 5. But the air is much larger than the compression rate of hydraulic oil, so it's working smoothly and to respond to far backward in this regard. |
Three advantages for hydraulic cylinder:
1. Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!
2. More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
3. Lift More.
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!

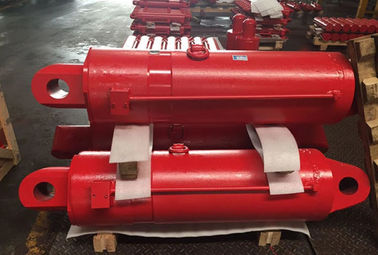

Heavy Duty Weld Coal Mine Hydraulic Cylinder
Hydraulic Cylinder Series Available:
| Engineering Oil Cylinder Series; |
| Metallurgy Oil Cylinder Series; |
| Turn Over Plow Oil Cylinder Series; |
| Reaper Oil Cylinder Series; |
| Excavator Oil Cylinder Series; |
| Quality Gurantee And Service； |
| One Year Quality Gurantee; |
| Complete After-Sale Services; |
We Can Offered The Nonstandard Cylinders.If You Need OEM Service,Please Give Us The Specification Or The Drawing Of The Cylinder In Order To Give You The Best Service&Price.(Cylinder Diameter,Pressure,Stroke,Application,Installation Method,Mounting Distance Etc).
JSRUIYA Hydraulic Machinery Promise:
| 1.100% Quality Assurance, Develop And Manufacture Follow Original Ones; |
| 2. Reasonable Stock And Timely Delivery; |
| 3. Quick Response Within 24 Hours ; |
| 4. Long-Term Strong And Steady Supplying Ability; |
| 5. One-To-One Products Factory.Ensure The Best Quality; |
| 6. The First-Class Logistics & Ensure That Your Goods Arrived Safely; |
| 7. Goods Will Be Packed Safe & Carefully; |
| 8. Excellent After-Sales Service.Track Usage.Positive Feedback Response; |
| 9. Establish Inquiry Library For You, We Are Your Professional Sourcing Consultant. |
JSRUIYA Hydraulic Machinery Have More Than One Decade Experience In Supplying Custom Hydraulic Cylinders With Provided Drawings Or Samples, Or If You Could Provide Following Specification:
| 1. Diameter Of Bore & Rod |
| 2. Stroke |
| 3. Mounting Style |
| 4. Mounting Distance |
| 5. Working Pressure |
| 6. Ports |
| 7. Seals |
| 8. Special Modifications |
Certainly, You Can Provide Drawing And Product Photos So That We Can Understand Your Meaning More Conveniently, Or You Can Also Send Us Sample And We Produce For You According To Your Sample.
Mounting Way:
| 1. Front And End Of Earring |
| 2. Head Fixed With Flange |
| 3. End Fixed With Flange |
| 4. Vertical To Axis Foot Type |
| 5. Middle Fixed With Pendulum Shift |
| 6 . End With Single Earring |
Quality Control:
| 1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection |
| 2. Process Inspection: First Inspection, Random Inspection, Handover Inspection |
| 3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test |
| 4. Type Inspection:Every Piece Of Hydraulic Cylinder Is Tested And Will Send Out Only After They Are Pasted Each Test. |
Package&Delivery
| 1. Each One Packed In Carton Case, Then Put Several Carton Case In The Wooden Case, Supported By The Tray. |
| 2. Depends On The Customers' Requirements. |
| 3. Shipped In 30 Days After 30% Deposit , The Rest Should Be Paid Before Delivery. |
Warranty And After-Sale Services:
| 1. We Provide The Replacement Parts For Free Due To Quality Problems Under Proper Operation Within Warranty Period. |
| 2. After Warranty Period, We Will Charge The Replacement Parts At Cost Price. |
| 3. Consultant Services For Whole Machine Life, And 24 Hours Technical Support By Email; |
Payment:
T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.
Application:
• Truck And Trailer •Automotive Lifts •Mining •Gas And Oil Industries •Forklifts
• Scissor Lifts •Tractors •Farm Implements •Harvesters •Hay Balers
• Ladder Trucks •Dump Trailers •Lift Gates •Wheel Loaders •Excavators
• Bulldozers •Garbage Trucks •Compactors •Hoist Trucks •Cranes
• Snow Equipment •Wood Splitter
FAQ:
1. Are You Manufacturer Or A Trading Company?
We Are The Manufacturer, And Have Been In This Industry For Nearly Ten Years.
2. What's Your Payment Way?
T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.
3. How Can You Ensure The Unit’s Quality After We Put The Order?
Before The Delivery, We Will Send You Machine’s Pictures And Videos, Or You Can Come To Us To Have The Quality Checking By Yourself, Or By The Third Party Inspection Organization Contacted By Your Side.
4. We Are Afraid You Won't Deliver Us The Machine After We Pay You The Money.
Please Note Our Above Business License And Certificates. And If You Don't Trust Us, You Can Use Alibaba’s Trade Assurance Service .
5. Why Choose Your Company?
We Have Been Engaged In The Manufacturing Of Various Hydraulic Power Unit Professionally Nearly 10 Years With Hundreds Of Oil Circuits, Which Can Meet The Needs Of Different Requests.
Our services cover all industries and reach all parts of the world.
