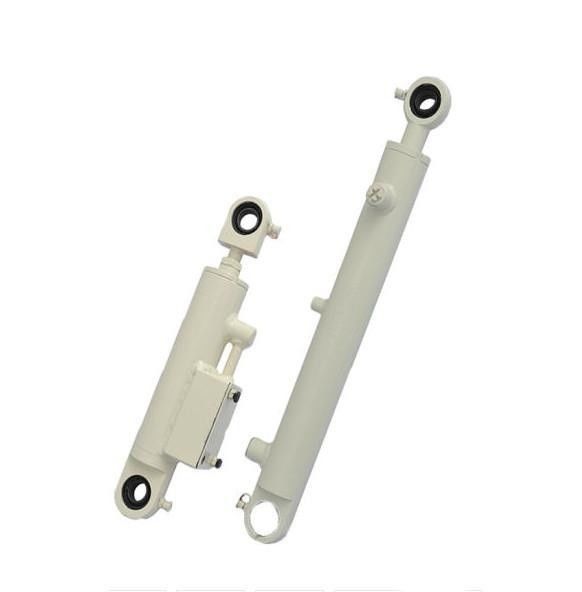

Double Acting Hydraulic Cylinder 50mm Bore 35mm Rod 200mm Stroke

Place of Origin:China
Brand Name:Guoyue
Certification:CE
Model Number:customized
Minimum Order Quantity:1 piece
Payment Terms:T/T
Supply Ability:2500 Ton/Tons Per Year
Product Details
Highlight:

50mm bore hydraulic cylinder

,

double acting hydraulic cylinder 200mm stroke

,

35mm rod hydraulic cylinder
Product Name: Hydraulic Cylinder
Pressure: Customized
Weight: 25
Power: 25MPa
Dimension(L*W*H): 710*102*102mm
Rod Diameter: 35mm
Maximum Stroke: 200mm
Outer Tube Diameter: 60mm
Inner Tube Diameter: 50mm
Material: Stainless Steel
Working Medium: Hydraulic Oil
Technique: Forging&Casting
Minimum Oeder Quantity: 1PCS
Certifications: CE
Piston Seal: Urethane Seal
Seals: Chinese
Usage: Metallurgical Industry Machinery
Ship Cost: Not Include
Product Description
Custom Cylinder Hydraulic Double Acting 50 35-200 High Temperature Resistant Hydraulic Cylinder
Product Specifications
Attribute Value
Product name Hydraulic Cylinder
Pressure 1MPa
Weight 25kg
Power 25MPa
Dimension (L*W*H) 710*102*102mm
Rod Diameter 35mm
Maximum Stroke 200mm
Outer Tube Diameter 60mm
Inner Tube Diameter 50mm
Material Stainless Steel
Product Description

This high-performance double-acting hydraulic cylinder is engineered for demanding industrial applications requiring high temperature resistance and reliable operation.

Key Features:
  • Constructed with premium stainless steel (45#, 42CrMo, or 27SiMn options available)
  • Precision ground H8 holes with surface roughness Ra under 0.4μm
  • High-quality components (45# steel for head, base, ears, and piston)
  • Advanced safety with optional fixed or floating bumpers
  • Ultrasound-tested welds for maximum durability
  • Premium international seals (, Trelleborg, Merkel, GP)
  • Rigorous testing to GB/T15622-2005 and Q/GAKY014-2023 standards
  • 1-year warranty against manufacturing defects
Technical Advantages

This robust hydraulic cylinder delivers exceptional performance in demanding conditions. Its double-acting design provides efficient push-pull operation, while the high-temperature resistant construction ensures reliable operation in challenging environments. The custom-engineered design offers perfect system integration with durable construction for long service life.

Application Scenarios
Engineering machinery Mining operations Shipping industry Metallurgy Water conservancy Offshore applications Agricultural equipment Construction sites Metal-working Glass manufacturing
Additional Specifications
  • Seal Options: Parker, Merkel, , Hallite
  • Paint Colors: Red, Grey, Yellow, Black (customizable)
  • Material Options: St52, CK45, 4140, Duplex2205, Stainless Steel 304/316
  • Certifications: ABS, Lloyds, SGS
  • Packaging: Bubble-wrap with wooden case protection
  • Structure Types: Piston Type, Plunger Type, Telescopic Type
  • Power Source: Hydraulic & Pneumatic
  • Brand: Guoyue
  • Samples: Available upon request
Double Acting Hydraulic Cylinder 50mm Bore 35mm Rod 200mm Stroke 0 Double Acting Hydraulic Cylinder 50mm Bore 35mm Rod 200mm Stroke 1
Company Information

Based in Jiangsu, China, we are a professional hydraulic equipment manufacturer with extensive experience in research, design, and production. Our company serves global markets including North America, South America, Europe, Africa, and Asia.

Quality Assurance:
  • Pre-production samples for approval
  • Final inspection before shipment
  • 1-year warranty on all products
Services Provided:
  • Accepted Delivery Terms: FOB
  • Payment Options: T/T (USD, EUR)
  • Multilingual support: English, Chinese
