3000PSI Rear Front Flange Mount Custom Made Hydraulic Cylinders

3000PSI Rear Front Flange Mount Custom Made Hydraulic Cylinders
3000PSI Rear Front Flange Mount Custom Made Hydraulic Cylinders 3000PSI Rear Front Flange Mount Custom Made Hydraulic Cylinders

Large Image :  3000PSI Rear Front Flange Mount Custom Made Hydraulic Cylinders

Product Details:
Place of Origin: Jiangsu,China
Brand Name: JSRUIYA
Certification: ISO 9000:2016
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden box, iron box
Delivery Time: 15-45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000 Pieces/Year

3000PSI Rear Front Flange Mount Custom Made Hydraulic Cylinders

Description
Body Material: Steel Power: Hydraulic
Structure: General Cylinder Color: Customized
Application: Garbage Truck,Excavator,Trailer / Truck / Modified,spare Parts,dump Truck Telescopic Hydraulic Cylinder Working Pressure: 3000PSI
Material: 45# Steel Product Name: Hydraulic Cylinder
Seals: Parker,Merkel,etc.,Trelleborg,Halite Packing: According To Your Requests
Type: Double Acting Hydraulic Cylinder
High Light:

Flange Mount Custom Made Hydraulic Cylinders

,

Rear Front Custom Made Hydraulic Cylinders

,

3000PSI hydro pneumatic cylinder

Heavy duty Rear/Front Flange Mount Hydraulic cylinder

The flange mount is one of the strongest, most rigid methods of mounting. With this type of mount there is little allowance for misalignment, though when long strokes are required, the free end opposite the mounting should be supported to prevent sagging and possible binding of the cylinder. The best use of a blind end flange is in a thrust load application (rod in compression). Rod end flange mounts are best used in tension applications. If an application exceeds the rectangular flange rating, requiring an extra heavy flange, a solid flange style end cap mount is available at no extra cost for most bore sizes. When a less rigid mount can be used and the cylinder can be attached to a panel or bulkhead, an extended tire rod mounting could be considered.



Used where the shortest possible column length is required and a front mounting plate is available. Good push and pull characteristics but care must be taken to ensure correct alignment of piston rod to workload centreline. Flange profile can be square, rectangular, round or even an irregular shape if required.



Rectangular Head Flange Mount. Force is transferred in a straight line, and force is absorbed along the cylinder centreline. We recommend MF1 mounts are used in tension and mounted with flange face against machine support.



Full Head Flange Mount. Force is transferred in a straight line, and force is absorbed along the cylinder centreline. ME5 mounts can be used at full pressure in tension or compression applications.



Square Head Flange Mount. Force is transferred in a straight line, and force is absorbed alone the cylinder centreline. MF5 mounts can be used at full pressure in either tension or compression applications.



Before purchase, pls contact me , we can discuss the cylinder details .



Heavy duty Rear/Front Flange Mount Hydraulic cylinder

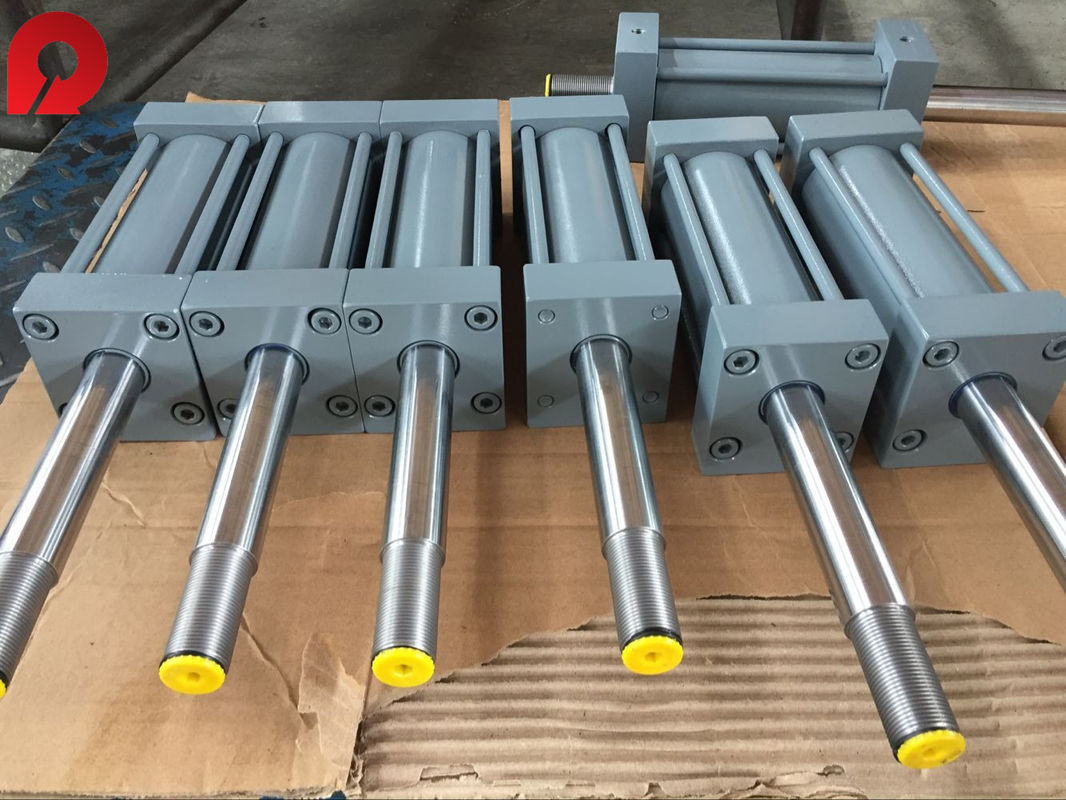

3000PSI Rear Front Flange Mount Custom Made Hydraulic Cylinders 0

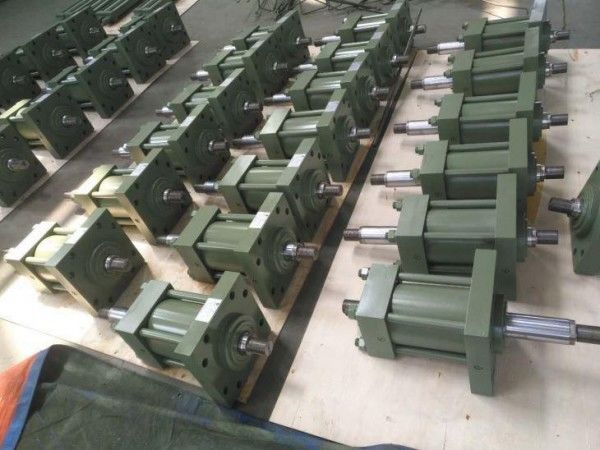

3000PSI Rear Front Flange Mount Custom Made Hydraulic Cylinders 1



Feature:



1. Seals: Special custom seals, has good corrosion resistance capability
2. Rod : Hard Chrome and copper Plating,quenched. Has good mechanical properties, Has good corrosion resistance and long service life;
3. Cylinder: honing machining /boring /rolling;
4. Surface treatment :Ballblast for Anti-Corrosion Paint;
5. Short Delivery Time ;
6. Warranty: One year;
7. We use Solidworks to design cylinders and do force analysis.
8. Inspection process: incoming inspection, sampling inspection, process inspection and pre-shipment inspection.
9. Before the production, we will do chemical composition tests. The uninspected materials are stored in special positions and all inspected materials are able to be traced by size, supplier and date.
10. During the production, the process cards are placed around to make sure that the workers understand every step clearly. The products are marked for tracking.



Heavy duty Rear/Front Flange Mount Hydraulic cylinder

3000PSI Rear Front Flange Mount Custom Made Hydraulic Cylinders 2



3000PSI Rear Front Flange Mount Custom Made Hydraulic Cylinders 3



Hydraulic Cylinder Series Available:

Engineering Oil Cylinder Series;
Metallurgy Oil Cylinder Series;
Turn Over Plow Oil Cylinder Series;
Reaper Oil Cylinder Series;
Excavator Oil Cylinder Series;
Quality Gurantee And Service;
One Year Quality Gurantee;
Complete After-Sale Services;



We Can Offered The Nonstandard Cylinders.If You Need OEM Service,Please Give Us The Specification Or The Drawing Of The Cylinder In Order To Give You The Best Service&Price.(Cylinder Diameter,Pressure,Stroke,Application,Installation Method,Mounting Distance Etc).



JSRUIYA Hydraulic Machinery Promise:

1.100% Quality Assurance, Develop And Manufacture Follow Original Ones;
2. Reasonable Stock And Timely Delivery;
3. Quick Response Within 24 Hours ;
4. Long-Term Strong And Steady Supplying Ability;
5. One-To-One Products Factory.Ensure The Best Quality;
6. The First-Class Logistics & Ensure That Your Goods Arrived Safely;
7. Goods Will Be Packed Safe & Carefully;
8. Excellent After-Sales Service.Track Usage.Positive Feedback Response;
9. Establish Inquiry Library For You, We Are Your Professional Sourcing Consultant.




JSRUIYA Hydraulic Machinery Have More Than One Decade Experience In Supplying Custom Hydraulic Cylinders With Provided Drawings Or Samples, Or If You Could Provide Following Specification:

1. Diameter Of Bore & Rod
2. Stroke
3. Mounting Style
4. Mounting Distance
5. Working Pressure
6. Ports
7. Seals
8. Special Modifications



Certainly, You Can Provide Drawing And Product Photos So That We Can Understand Your Meaning More Conveniently, Or You Can Also Send Us Sample And We Produce For You According To Your Sample.



Mounting Way:

1. Front And End Of Earring
2. Head Fixed With Flange
3. End Fixed With Flange
4. Vertical To Axis Foot Type
5. Middle Fixed With Pendulum Shift
6 . End With Single Earring







Quality Control:



1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection
2. Process Inspection: First Inspection, Random Inspection, Handover Inspection
3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test
4. Type Inspection:Every Piece Of Hydraulic Cylinder Is Tested And Will Send Out Only After They Are Pasted Each Test.







Package&Delivery

1. Each One Packed In Carton Case, Then Put Several Carton Case In The Wooden Case, Supported By The Tray.
2. Depends On The Customers' Requirements.
3. Shipped In 30 Days After 30% Deposit , The Rest Should Be Paid Before Delivery.









Warranty And After-Sale Services:

1. We Provide The Replacement Parts For Free Due To Quality Problems Under Proper Operation Within Warranty Period.
2. After Warranty Period, We Will Charge The Replacement Parts At Cost Price.
3. Consultant Services For Whole Machine Life, And 24 Hours Technical Support By Email;



Payment:

T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.



Application:



• Truck And Trailer •Automotive Lifts •Mining •Gas And Oil Industries •Forklifts

• Scissor Lifts •Tractors •Farm Implements •Harvesters •Hay Balers

• Ladder Trucks •Dump Trailers •Lift Gates •Wheel Loaders •Excavators

• Bulldozers •Garbage Trucks •Compactors •Hoist Trucks •Cranes

• Snow Equipment •Wood Splitter





FAQ:

1. Are You Manufacturer Or A Trading Company?
We Are The Manufacturer, And Have Been In This Industry For Nearly Ten Years.


2. What's Your Payment Way?
T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.


3. How Can You Ensure The Unit’s Quality After We Put The Order?
Before The Delivery, We Will Send You Machine’s Pictures And Videos, Or You Can Come To Us To Have The Quality Checking By Yourself, Or By The Third Party Inspection Organization Contacted By Your Side.


4. We Are Afraid You Won't Deliver Us The Machine After We Pay You The Money.
Please Note Our Above Business License And Certificates. And If You Don't Trust Us, You Can Use Alibaba’s Trade Assurance Service .


5. Why Choose Your Company?
We Have Been Engaged In The Manufacturing Of Various Hydraulic Power Unit Professionally Nearly 10 Years With Hundreds Of Oil Circuits, Which Can Meet The Needs Of Different Requests.

v
