8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter

8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter
8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter 8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter 8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter 8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter

Large Image :  8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter

Product Details:
Place of Origin: Jiangsu China
Brand Name: JSRUIYA
Certification: ISO
Model Number: construction machinery
Payment & Shipping Terms:
Minimum Order Quantity: OEM
Price: Negotiation
Packaging Details: Wooden box, iron box
Delivery Time: 15-45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000 Pieces/Year

8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter

Description
Name: 8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter Bore: 160mm
Rod: 90mm Stroke: 1199mm
Installation Size: 1814mm Working Pressure: 16Mpa
High Light:

1199mm Long Stroke Hydraulic Ram

,

8 Ton Hydraulic Ram

,

Hydraulic Cylinder Long Stroke 1199mm



8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter 0

Large Bore long stroke construction machinery hydraulic cylinder detail drawing

8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter 1



Technical Parameters:
Bore: 160mm
Rod:90mm
Stroke:1199mm
Working Pressure:16 Mpa
Installation size:1814mm
Pressure test:21Mpa
Piston speed:maximum 1m/s
Temperature range:-40℃ to +300℃

Product Name Factory Design Customized Hydraulic Cylinder
Rod Size 18 mm - 2000 mm(0.71inch - 78.74 inch)
bore Size 40-200mm(1.57 inch - 7.87inch)
Stroke 10-15000mm(0.39 inch - 590.55inch)
Tipping Weight 1 Ton - 100 Ton
Working Pressure 2500psi - 8000psi(3000psi , 5000psi available)
Material Carbon Steel/Cast Iron /Aluminum/Hard chrome plated Alloy Steel
Barrel/Tube 1. Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc.
  2. Technology: cold drawn ,hot rolled,forged
  3. Surface Roughness: R0.16-0.32
  4. Choose by different working condition and requirements.
Piston rod 1. Material: SAE1045(45#),35CrMo,42CrMo4,etc.
  2. Technology: Quenched and tempered
  3. Surface treatment: chrome plated, nickel-chromium plated, nitriding, nitrocarburizing
Seal kits 1. Hallite, NOK, SKF, Parker, Hercules,Trelleborg,China made,Taiwan made
  2. Choose by different working condition and requirements.
Hydraulic Cylinder Types Single Acting Hydraulic Cylinder,Double Acting Hydraulic Cylinder,Telescopic Hydraulic Cylinder,Welded Hydraulic Cylinder,Tie-Rod Hydraulic Cylinder,Bolted Hydraulic Cylinder,Re-phasing Systems Hydraulic Cylinder,Double Rod End Hydraulic Cylinder
Mounting Style Earrings, flange, foot mounting, trunnion, cross tube, etc
Test Static balance test
Surface treatment Painting/sand blasting/oiled,Follow customers' requirement.
Application Excavator boom arm bucket,Construction,Machinery,Agricultural Machine,Lift gate & Snow plow,Trash Compactors,etc



Hydraulic Cylinder Series Available:





1 Inch Hydraulic Cylinder

10 Inch Hydraulic Cylinder

10 Inch Stroke Hydraulic Cylinder

10 Ton 14 Inch Stroke Hydraulic Ram

12 Inch Hydraulic Cylinder

12 Inch Stroke Hydraulic Cylinder

120 Inch Stroke Hydraulic Cylinder

14 Inch Hydraulic Cylinder

14 Inch Stroke Hydraulic Cylinder

16 Inch Hydraulic Cylinder

16 Inch Stroke Hydraulic Cylinder

18 Inch Hydraulic Cylinder

2 Inch Hydraulic Cylinder

20 Inch Stroke Hydraulic Cylinder

24 Inch Hydraulic Cylinder

24 Inch Stroke Hydraulic Cylinder

3 Inch Hydraulic Cylinder

30 Inch Hydraulic Cylinder

36 Inch Stroke Hydraulic Cylinder

4 Inch Hydraulic Cylinder

48 Inch Hydraulic Cylinder

5 Inch Hydraulic Cylinder

6 Inch Hydraulic Cylinder

60 Inch Stroke Hydraulic Cylinder

72 Inch Stroke Hydraulic Cylinder

8 Inch Hydraulic Cylinder

30 Inch Stroke Hydraulic Cylinder

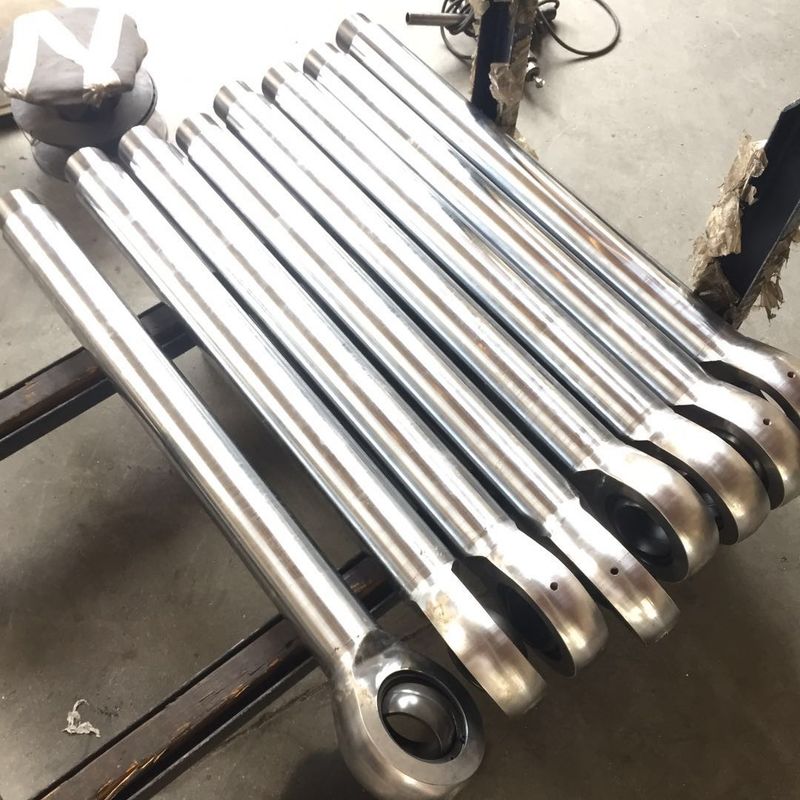

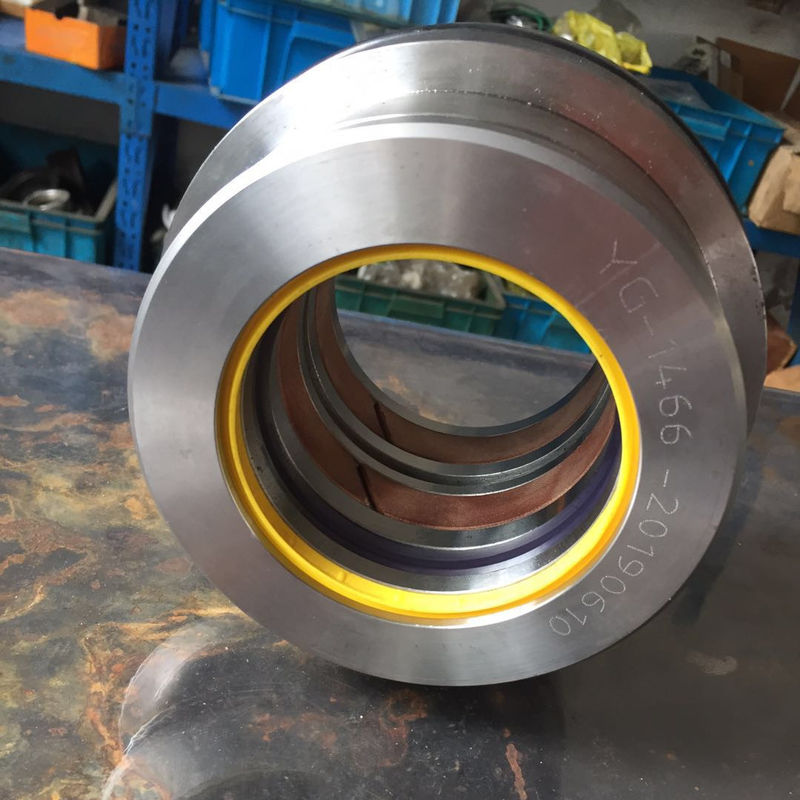

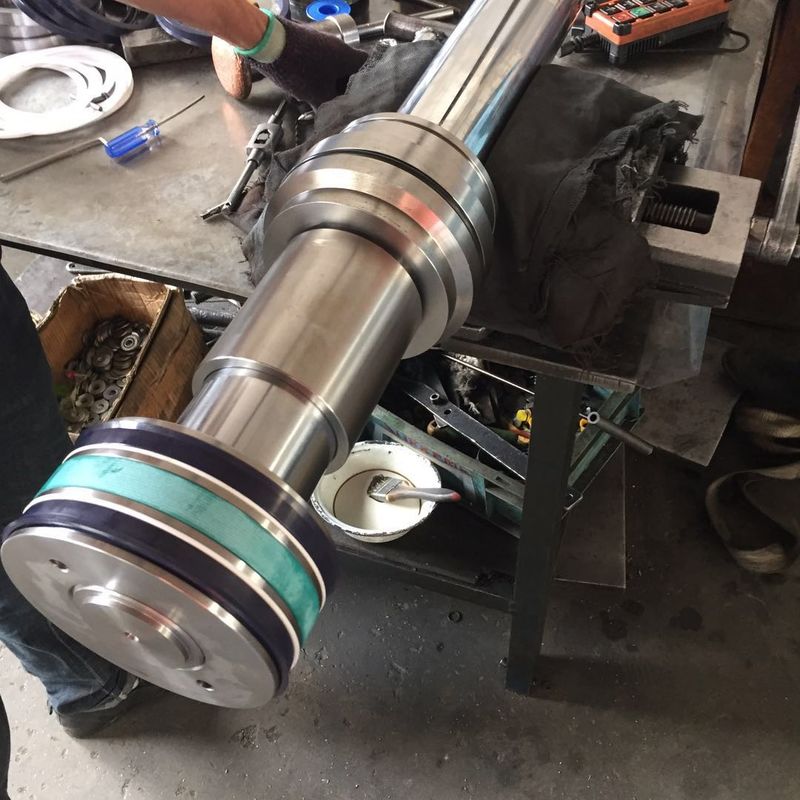

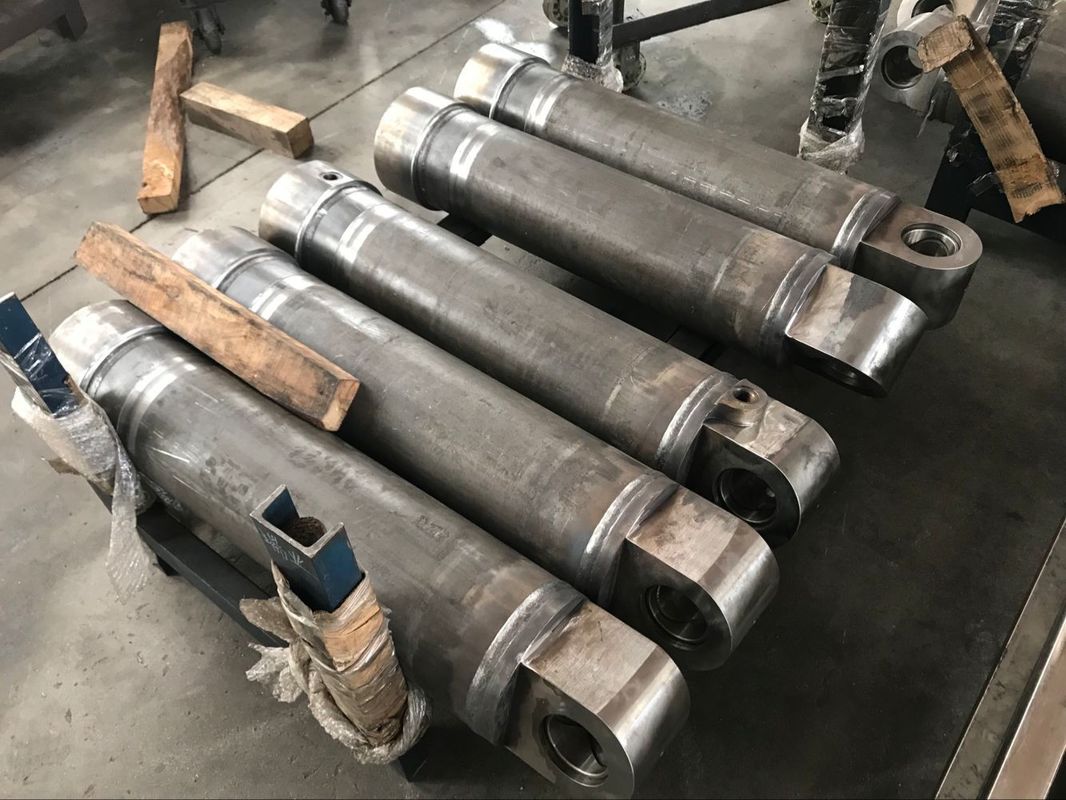

Product Image:
8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter 2

8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter 3

8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter 4

8 Ton 160mm Bore Long Stroke Hydraulic Ram For Log Splitter 5

Before Purchase, Pls Contact Me , We Can Discuss The Cylinder Details .

Usually we custom cylinder according to customers drawing or samples.
