General Hay Baler Forklift Hydraulic Cylinder 12mm - 500mm Shaft Diameter

General Hay Baler Forklift Hydraulic Cylinder 12mm - 500mm Shaft Diameter

  • High Light

    500mm shaft tie rod type cylinder

    ,

    500mm shaft double acting hydraulic cylinder

    ,

    35Mpa Forklift Hydraulic Cylinder

  • Standard Or Nonstandard
    Nonstandard
  • Structure
    General Cylinder
  • Power
    Hydraulic
  • Body Material
    Steel
  • Maximum Stroke
    6000mm
  • Shaft Diameter
    12mm-500mm
  • Application
    Farm Tractor,Forklift,Excavator,etc
  • Color
    Customer Request
  • Place of Origin
    Jiangsu,China
  • Brand Name
    JSRUIYA
  • Certification
    ISO 9000:2016
  • Minimum Order Quantity
    1PCS
  • Price
    Negotiation
  • Packaging Details
    Wooden box, iron box
  • Delivery Time
    15-45 Days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    30,000 Pieces/Year

General Hay Baler Forklift Hydraulic Cylinder 12mm - 500mm Shaft Diameter


Tie Rod Hay Baler Hydraulic Cylinders

Hay Baler hydraulic cylinders use high strength threaded steel rods to hold the two end caps to the cylinder barrel. They are most often seen in agricultural factory applications. Small bore cylinders usually have 4 tie rods, and large bore cylinders may require as many as 16 or 20 tie rods in order to retain the end caps under the tremendous forces produced.
Hydraulic Baling Press specifically designed for the compaction of hay metal into bales to increase transport efficiency. JSRUIYA Hydraulic Machinery supply Hydraulic Baler is very famous in domestic, over the years, we have cooperated with many Chinese major car modification corporation. All of our partners are satisfied with our service and products baler cylinders.

Types:
Tie-rod Hydraulic cylinder for hay baler
Tie-rod Hydraulic cylinder for hay cutter
Tie Rod Hydraulic cylinder for bale press
Tie Rod Hydraulic cylinder for hay bander

Parameter:
Max.Cylinder Bore 300mm
Max.Piston Rod Dia. 280mm
Max.Retract Length 3500mm
Max .Stroke Single stage cylinder 6500mm
Multi-stage cylinder 12000mm
Max.Working Pressure 35Mpa
Min.Working Pressure 10Mpa
Working Pressure of Heavy-duty Cylinder 40Mpa

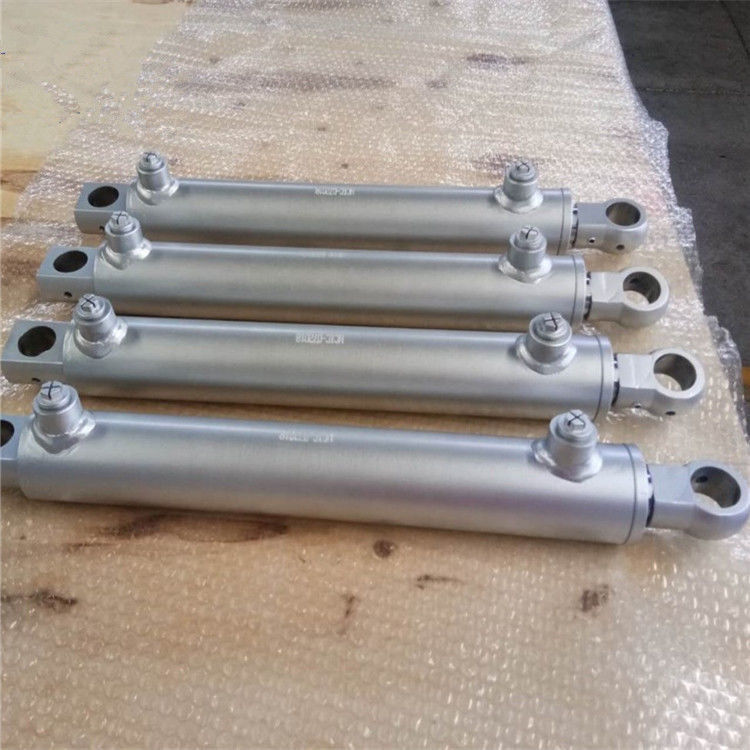

General Hay Baler Forklift Hydraulic Cylinder 12mm - 500mm Shaft Diameter 0

General Hay Baler Forklift Hydraulic Cylinder 12mm - 500mm Shaft Diameter 1


JSRUIYA Hydraulic Machinery have more than one decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:

1. Diameter of bore & rod
2. Stroke
3. Mounting style
4. Mounting distance
5. Working pressure
6. Ports
7. Seals
8. Special modifications



Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.



Mounting way:

1. Front and end of earring
2. Head fixed with flange
3. End fixed with flange
4. Vertical to axis foot type
5. Middle fixed with pendulum shift
6 . End with single earring



Our Company:

Welded Log Splitter Hydraulic Cylinders



Quality Control:

1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection
2. Process Inspection: First Inspection, Random Inspection, Handover Inspection
3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test
4. Type Inspection:Every piece of hydraulic cylinder is tested and will send out only after they are pasted each test.




Package&Delivery

1. Each one packed in carton case, then put several carton case in the wooden case, supported by the tray.
2. Depends on the customers' requirements.
3. Shipped in 30 days after 30% deposit , the rest should be paid before delivery.



Welded Single Acting Hydraulic Cylinders for lifting equipment



Warranty and After-sale Services:

1.We provide the replacement parts for free due to quality problems under proper operation within warranty period.
2.After warranty period, we will charge the replacement parts at cost price.
3.Consultant services for whole machine life, and 24 hours technical support by email;



Payment:

T/T by our bank account directly, or by Alibaba’s trade assurance service, or by the West Union, or in cash.



Application:



• Truck and Trailer •Automotive Lifts •Mining •Gas and Oil Industries •Forklifts

• Scissor Lifts •Tractors •Farm Implements •Harvesters •Hay balers

• Ladder Trucks •Dump Trailers •Lift gates •Wheel loaders •Excavators

• Bulldozers •Garbage Trucks •Compactors •Hoist Trucks •Cranes

• Snow Equipment •Wood Splitter

General Hay Baler Forklift Hydraulic Cylinder 12mm - 500mm Shaft Diameter 4



FAQ:

1. Are you manufacturer or a trading company?
We are the manufacturer, and have been in this industry for nearly ten years.


2. What's your payment way?
T/T by our bank account directly, or by Alibaba’s trade assurance service, or by the West Union, or in cash.


3. How can you ensure the unit’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.


4. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba’s trade assurance service .


5. Why choose your company?
We have been engaged in the manufacturing of various hydraulic power unit professionally nearly 10 years with hundreds of oil circuits, which can meet the needs of different requests.
