Double Ended Hydraulic Steering Cylinder / Hydraulic Piston Cylinder

Double Ended Hydraulic Steering Cylinder / Hydraulic Piston Cylinder

    • Double Ended Hydraulic Steering Cylinder / Hydraulic Piston Cylinder
    • Double Ended Hydraulic Steering Cylinder / Hydraulic Piston Cylinder
  • Double Ended Hydraulic Steering Cylinder / Hydraulic Piston Cylinder

    Product Details:

    Place of Origin: Jiangsu,China
    Brand Name: JSRUIYA
    Certification: ISO 9000:2016

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiation
    Packaging Details: Wooden box, iron box
    Delivery Time: 15-45 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 30,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Power: Hydraulic Body Material: Steel
    Standard Or Nonstandard: As Order Structure: Piston Cylinder
    Working Pressure: 10-50 MPa Stroke: 50-300mm
    Application: Construction And So On,milling Machine,Excavator,All Areas,Lifting Tools Type: Hydraulic Ram Cylinder,Hydraulic Cylinder For Truck
    Packing: Wooden Box Seals: Hallite,Merkel,Parker
    High Light:

    power steering hydraulic cylinder

    ,

    hydraulic piston cylinder

    Double-ended custom hydraulic cylinder cylinder-double acting

    Double-ended hydraulic cylinders have a single rod with a centrally placed piston. The rod protrudes from both ends of the cylinder body. The double-ended hydraulic cylinder is commonly used as a steering cylinder, and they can generate force in both directions.

    Before purchase, pls contact me , we can discuss the cylinder details .


    Double-ended custom hydraulic cylinder cylinder-double acting

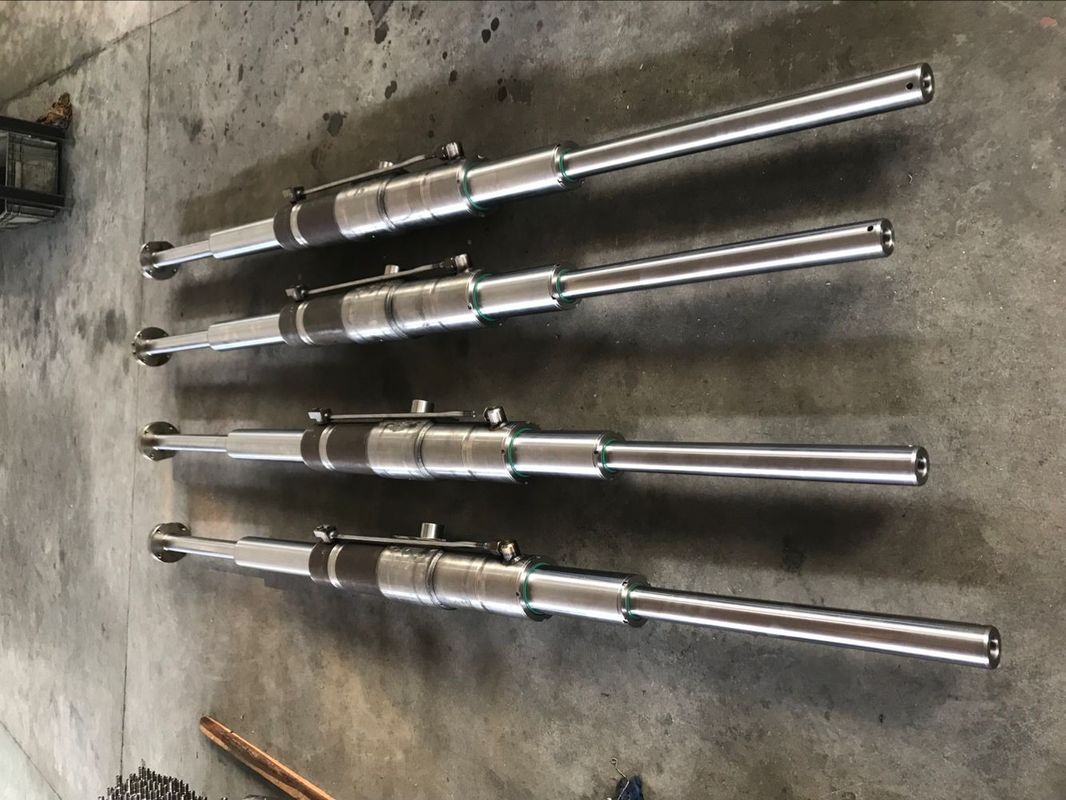

    Double Ended Hydraulic Steering Cylinder / Hydraulic Piston Cylinder 0

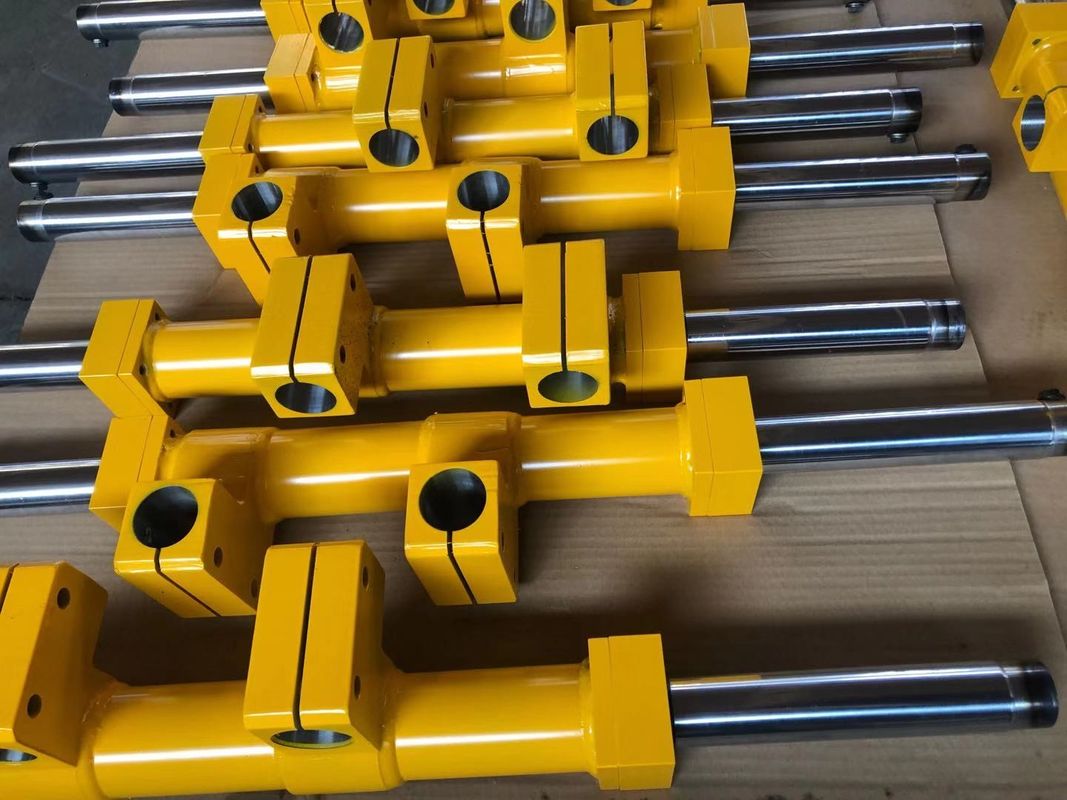

    Double Ended Hydraulic Steering Cylinder / Hydraulic Piston Cylinder 1



    Product Description:

    Specializing in P.O. check, Counterbalance and Direct-Acting Relief Valves integral to the hydraulic cylinder end cover or valve block.
    Hydraulic cushions available for both full extend and full retract.
    High-pressure rod and piston seals available to handle the most challenging cylinder applications.
    Heavy Duty Welded Construction
    Operating Pressures up to 5000 PSI.
    Bore Sizes from 1.25” to 16.00” .
    Chromed, Ground & Polished Piston Rod.
    Threaded-in Ductile Iron Piston & Pack Head.
    Honed Tubing
    Various Mounting Arrangements Include D-Pivot, Pin Eye, Clevis, Mounting Foot & Trunnion



    Working Pressure: up to 350 bar
    Test Pressure: up to 500 bar
    Maximum working Speed: 0,5m/second
    Temperature: -30°C to +90°C
    Fluid: Mineral Hydraulic Oil
    Strokes: up to 5 meters
    Chrome Plating: Micro-crack hard chrome 1100HV
    72hrs to 1000 NSS R10 IS0 9227
    Double chrome
    Nickel chrome
    Induction Hardened bar
    Mounting types: Plain pin hole
    Bushed pin hole
    Spherical bearing
    U-bracket
    Threaded end
    Flange
    Trunnion
    Available with: Air bleeding
    End cushioning
    Special attachments
    Integrated control valves fitted
    Electrical position sensing devices
    Magnetostrictive Measurement Technology
    Painting: Phosphate & finish painting
    RAL colours
    Customised colours



    Double Ended Hydraulic Steering Cylinder / Hydraulic Piston Cylinder 2



    Hydraulic Cylinder Series Available:

    Engineering Oil Cylinder Series;
    Metallurgy Oil Cylinder Series;
    Turn Over Plow Oil Cylinder Series;
    Reaper Oil Cylinder Series;
    Excavator Oil Cylinder Series;
    Quality Gurantee And Service;
    One Year Quality Gurantee;
    Complete After-Sale Services;



    We Can Offered The Nonstandard Cylinders.If You Need OEM Service,Please Give Us The Specification Or The Drawing Of The Cylinder In Order To Give You The Best Service&Price.(Cylinder Diameter,Pressure,Stroke,Application,Installation Method,Mounting Distance Etc).



    JSRUIYA Hydraulic Machinery Promise:

    1.100% Quality Assurance, Develop And Manufacture Follow Original Ones;
    2. Reasonable Stock And Timely Delivery;
    3. Quick Response Within 24 Hours ;
    4. Long-Term Strong And Steady Supplying Ability;
    5. One-To-One Products Factory.Ensure The Best Quality;
    6. The First-Class Logistics & Ensure That Your Goods Arrived Safely;
    7. Goods Will Be Packed Safe & Carefully;
    8. Excellent After-Sales Service.Track Usage.Positive Feedback Response;
    9. Establish Inquiry Library For You, We Are Your Professional Sourcing Consultant.


    JSRUIYA Hydraulic Machinery Have More Than One Decade Experience In Supplying Custom Hydraulic Cylinders With Provided Drawings Or Samples, Or If You Could Provide Following Specification:

    1. Diameter Of Bore & Rod
    2. Stroke
    3. Mounting Style
    4. Mounting Distance
    5. Working Pressure
    6. Ports
    7. Seals
    8. Special Modifications



    Certainly, You Can Provide Drawing And Product Photos So That We Can Understand Your Meaning More Conveniently, Or You Can Also Send Us Sample And We Produce For You According To Your Sample.



    Mounting Way:

    1. Front And End Of Earring
    2. Head Fixed With Flange
    3. End Fixed With Flange
    4. Vertical To Axis Foot Type
    5. Middle Fixed With Pendulum Shift
    6 . End With Single Earring



    Quality Control:



    1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection
    2. Process Inspection: First Inspection, Random Inspection, Handover Inspection
    3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test
    4. Type Inspection:Every Piece Of Hydraulic Cylinder Is Tested And Will Send Out Only After They Are Pasted Each Test.



    Package&Delivery

    1. Each One Packed In Carton Case, Then Put Several Carton Case In The Wooden Case, Supported By The Tray.
    2. Depends On The Customers' Requirements.
    3. Shipped In 30 Days After 30% Deposit , The Rest Should Be Paid Before Delivery.



    Warranty And After-Sale Services:

    1. We Provide The Replacement Parts For Free Due To Quality Problems Under Proper Operation Within Warranty Period.
    2. After Warranty Period, We Will Charge The Replacement Parts At Cost Price.
    3. Consultant Services For Whole Machine Life, And 24 Hours Technical Support By Email;



    Payment:

    T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.



    Application:



    • Truck And Trailer •Automotive Lifts •Mining •Gas And Oil Industries •Forklifts

    • Scissor Lifts •Tractors •Farm Implements •Harvesters •Hay Balers

    • Ladder Trucks •Dump Trailers •Lift Gates •Wheel Loaders •Excavators

    • Bulldozers •Garbage Trucks •Compactors •Hoist Trucks •Cranes

    • Snow Equipment •Wood Splitter



    FAQ:

    1. Are You Manufacturer Or A Trading Company?
    We Are The Manufacturer, And Have Been In This Industry For Nearly Ten Years.


    2. What's Your Payment Way?
    T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.


    3. How Can You Ensure The Unit’s Quality After We Put The Order?
    Before The Delivery, We Will Send You Machine’s Pictures And Videos, Or You Can Come To Us To Have The Quality Checking By Yourself, Or By The Third Party Inspection Organization Contacted By Your Side.


    4. We Are Afraid You Won't Deliver Us The Machine After We Pay You The Money.
    Please Note Our Above Business License And Certificates. And If You Don't Trust Us, You Can Use Alibaba’s Trade Assurance Service .


    5. Why Choose Your Company?
    We Have Been Engaged In The Manufacturing Of Various Hydraulic Power Unit Professionally Nearly 10 Years With Hundreds Of Oil Circuits, Which Can Meet The Needs Of Different Requests.
